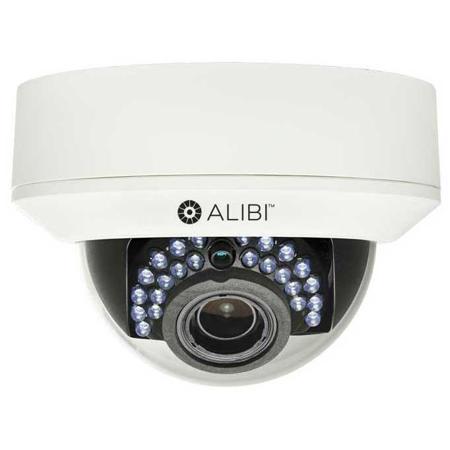

Alibi 2.1MP WDR Outdoor True Day & Night Dome IP Security Camera with 65' IR Distance, 2.8-12mm Motorized Varifocal Lens, 1920x1080, 30fps, H.264, H.264 OVC, MJPEG, PoE, Vandalproof, White

SKU: ALINS1032VR

This item is no longer available.

Recommended Alternatives

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

2018-05-09T11:27:21

Rated 5 out of 5

Awesome clarity and settings

The IP Camera is so awesome, that I ordered four more. I would love to replace all existing cameras with this Alibi product, but cannot afford it right now.

MICHAEL D.

Alibi ALI-NS1032VR Specifications

  • Image Sensor

    1/2.8" CMOS

  • Scanning Mode

    Progressive Scan

  • Resolution

    Up to 1920 x 1080

  • Effective Pixels

    Approx. 2.1 Megapixel

  • Minimum Illumination

    Color: 0.01 Lux
    B/W: 0 Lux (IR ON)

  • Day/Night

    True Day/Night ICR)

  • Electronic Shutter

    1/3 to 1/10,000(sec)

  • Wide Dynamic Range

    120dB

  • Gain Control

    Auto

  • White Balance Mode

    Auto

  • Noise Reduction

    3D DNR

  • IR Illuminators

    Smart IR Array, 850nm

  • IR Array Range

    65' / 19.81m

  • IR Sensitivity

    700 - 1100nm

  • Panning Range

    0 to 355 deg.

  • Tilting Range

    0 to 75 deg.

  • Rotation Range

    0 to 355 deg.

  • Lens Type

    Motorized Varifocal

  • Focal Length

    2.8 to 12mm

  • Iris

    Fixed

  • Focus

    Automatic

  • Horizontal Viewing Angle

    106 deg. (wide) to 35 deg. (tele)

  • F-number

    F1.4

  • Video Compression Format

    H.264 (Main Profile), H.264 OVC (Optimized Video Codec), MJPEG

  • Codec Streaming Capability

    Dual Streaming

  • Maximum Frame Rate

    30fps at 1080p

  • Bit Rate

    32 kbps to 16 Mbps

  • Bit Rate Mode

    CBR, VBR

  • Audio Streaming

    Two-way

  • Audio Compression Format

    64Kbps (G.711) / 16Kbps (G.726) / MP2L2

  • Motion Detection

    Support, Zone Configurable

  • Backlight Compensation

    Support, Zone Configurable

  • Event Notification

    Alarm Output, Email, FTP

  • Privacy Mask

    Support

  • Video Analytics

    Tamper Detection, Line Crossing, Intrusion Detection

  • Interface

    Ethernet: RJ-45 10/100 BASE-T
    Audio Input : 1x In
    Audio Output: 1x Out
    Sensor Input : 1x In
    Alarm Output : 1x Out
    SD Card Slot : 1x Micro SD/SDHC/SDXC (up to 128GB)

  • Protocols

    TCP/IP,ICMP,HTTP,HTTPS,FTP,D HCP,DNS,DDNS,RTP,RTSP,RTCP, PPPoE,NTP,UPnP,SMTP,SNMP,I GMP,802.1X,QoS,IPv6,Bonjour, ONVIF, PSIA

  • Security

    One-key reset, flash-prevention, dual streams, heartbeat, mirror, password protection, privacy mask, Watermark, IP address filtering, Anonymous access

  • Network Storage

    NAS (Support NFS, CIFS/SMB)

  • Material

    Aluminum (body), Polycarbonate (bubble)

  • System Requirements

    Operating System: Windows XP/VISTA/7/8/10, Mac OSX
    Processor: Intel Pentium 4 3.0 GHz or later
    Memory: 1GB or above RAM
    Display: 1024 x 768 resolution or higher
    Web Browser: Internet Explorer 6.0 or above, Apple Safari 5.02 or above, Mozilla Firefox 3.5 or above

  • Power Requirements

    PoE (IEEE802.3af) / 12 Vdc

  • Power Consumption

    5.5 W max (IR OFF), 7.5 W max (IR ON)

  • Operating Temperature

    -22 to 104 deg. F / -30 to 40 deg. C

  • Operating Humidity

    0% to 95% RH, Non-condensing

  • Ingress Protection

    IP66

  • Impact Protection

    IK10

  • Approvals

    CE, FCC, RoHS

  • Dimensions (H x Dia.)

    3.94 x 5.51" / 100.08 x 139.95mm

  • Weight

    2.2lbs / 1.00kg

  • UPC Code

    192223054127

About Alibi ALI-NS1032VR

FEATURED REVIEWS

Awesome clarity and settings

By MICHAEL D.

The IP Camera is so awesome, that I ordered four more. I would love to replace all existing cameras with this Alibi product, but cannot afford it right now.

Monitor and protect your home or business with the Alibi 2.1 Megapixel 65' IR Vandalproof Varifocal WDR Outdoor Dome IP Security Camera. The network IP camera features a 1/2.8" CMOS progressive-scan image sensor that delivers up to 1920 x 1080 (1080p) full-HD video at 30 frames per second. The camera is equipped with a 2.8-12 mm DC driven auto iris motorized manual focus varifocal lens that that offers a 106 deg. (Wide) - 35 deg. (Tele) field of view to meet your application needs. The 2.1 megapixel IP security camera features integrated IR LEDs that enable the camera to see up to 65' in the dark.

• Produces up to 1080p full-HD video at 30 fps
• Smart IR reduces over-exposure of the IR LEDs at the center of the image
• Integrated IR LEDs enable the camera to see up to 65' in the dark
• True WDR and 3D-DNR enhance image quality in variable and low-light conditions
• H.264 OVC improves image quality and reduces bandwidth requirements
• 2.8-12 mm motorized manual focus lens
• Wide angle lens with 106 deg. field of view covers large areas
• True 3-axis gimbal provides flexible mounting (wall or ceiling) and camera positioning
• IP66 weather-rated enclosure provides all-weather protection
• IK10 impact resistance for protection against physical impact
• ONVIF Profile S compliant and ONVIF Profile G approved
• PoE (802.3af)
• Micro SD card slot supports up to 128GB micro SD cards (Memory card sold separately)
• Free Alibi Witness iOS/Android mobile app

The camera features Smart IR, an Advanced Infrared Technology, which reduces over-exposure of the IR LED at the center of the image without washing out the subject at close range. This IP camera also features H.264 OVC (Optimized Video Codec), a next-generation video compression format of the well-known H.264 video codec. H.264 OVC reduces IP camera file size by 50% (or greater) and enables the camera to see more detail, while reducing bandwidth and storage requirements. It also allows for faster, more fluid remote viewing, along with the ability to view more channels remotely.

The camera also offers H.264 and MJPEG video compression formats to further meet your application needs. The megapixel IP camera is equipped with true day/night (ICR) which captures sharp, detailed color images during the day and black and white images in low light. 120db true wide dynamic range (WDR) and 3D digital noise reduction (3D-DNR) produce exceptional image quality with less noise in variable and low light conditions. The IP dome camera features a true 3-axis gimbal that simplifies installation and provides flexible mounting and camera positioning. The tri-axis gimbal enables you to mount the dome camera virtually anywhere (wall or ceiling) and position it at any angle to achieve the desired field-of-view.

The camera's IP66 weather-rated enclosure provides protection from particles such as dust and sand, as well as harsh weather conditions, including rain and snow. The vandal-resistant camera's enclosure is also IK08 impact resistant, which provides protection against physical impact. The megapixel IP dome camera supports up to 128GB micro SD cards (sold separately). The camera can be powered via 802.3af PoE or 12 Vdc power supply and is ONVIF Profile S compliant for greater device compatibility and ONVIF Profile G approved. This camera also features an event log and event notification, along with email notification. The free Alibi Witness mobile app enables you to view your live and recorded video remotely-from anywhere, from your Android or iOS mobile device.

Megapixel Resolution
Megapixel cameras can cover a larger area without compromising image quality. Megapixel resolution cameras deliver high-definition images with much greater detail. They are ideal where a greater level of detail is needed, such as for facial recognition and license plate identification.

Smart IR - Captures clear, sharp images in low light
Smart IR (smart infrared) automatically adjusts the amount of infrared light used to illuminate a scene as the subject moves closer to or further away from the camera, resulting in optimal exposure and a sharp, clear image that is neither washed out or too dark.

H.264 OVC (Optimized Video Codec) - Improves image quality and reduces bandwidth requirements
H.264 OVC is a next-generation video compression format of the well-known H.264 video codec. H.264 OVC is an optimized compression technology that improves image quality and reduces bandwidth for security applications. It also allows for faster, more fluid remote viewing, along with the ability to view more channels remotely.

True Wide Dynamic Range (WDR) - Gain better images in diverse lighting conditions
This feature enables the camera to take multiple images while capturing video at different exposure levels. It combines the images for the best balance and compensates for lights and darks for perfectly exposed images in both bright and shadowed areas of a diversely lit scene. True WDR also reduces video noise.

3D Digital Noise Reduction (3D-DNR) - Get exceptional video image quality with less noise
3D-DNR incorporates frame-to-frame noise reduction with spatial noise reduction to produce clear video images with less noise, in low light conditions. Noise reduction is critical for video because noise affects image quality. Cameras with 3D-DNR produce sharper, more accurate video images.

True Day/Night (ICR) - Enjoy around-the-clock surveillance
Alibi day/night cameras with true day/night (ICR) deliver a sharp image in low light and nighttime conditions. An IR cut filter blocks out infrared light to produce true-to-life color images during the daytime. In low light conditions and at night, the filter is removed, letting infrared light pass through to provide crisp, well-defined black and white images.

True 3-Axis Gimbal - Gain flexible mounting capabilities
A true 3-axis gimbal provides the ability to mount the dome camera virtually anywhere (wall or ceiling) and position it at any angle to achieve the desired field-of-view.

IK Impact Resistance - Withstand physical impacts
The IK rating system an international numeric classification for the degrees of protection provided by enclosures for electrical equipment against external mechanical impacts. It provides a means of specifying the capacity of an enclosure to protect its contents from external impacts. Ratings range from IK-01 to IK-10, with IK-10 being able to withstand the largest amount of impact energy (20 joules).

Privacy Zone Masking - Keep desired areas private
This feature enables you to set zones for select areas within the camera's field of view, that need to be excluded when viewing and recording video. These areas are overlaid with a privacy mask so that video of the specified zones cannot be viewed or recorded.

Free Alibi Witness iOS/Android App - View your video remotely from anywhere
Enjoy convenient remote access from your iOS or Android device with a FREE app.

Power over Ethernet (PoE) - Receive power and data through a single cable
PoE allows IP (internet protocol) devices to receive power and data over existing LAN (local area network) cabling. This eliminates the need to install a separate power cable, simplifies installation and lowers cabling costs.

ONVIF Profile S Compliant
Enjoy greater compatibility with more devices. This product conforms to ONVIF (Open Network Video Interface Forum) specifications for IP-based security products. ONVIF defines a common protocol for the exchange of information between different network video devices from different manufacturers, to allow greater interoperability in multi-vendor network video systems.

What's in the box:

  • Alibi 2.1MP WDR Outdoor True Day & Night Dome IP Security Camera
  • Mounting Template
  • Set of Mounting Hardware
  • Gang Box Adaptor Plate
  • Quick Start Guide
  • CD-ROM (Installation Tools and Instructions)
  • Alibi 3 Year Warranty
