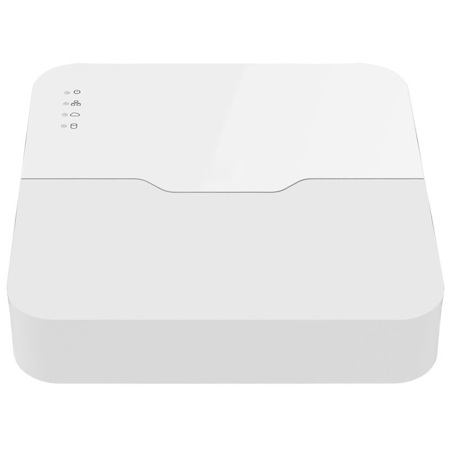

Alibi NVRE0401-0 4-Channel Ultra H.265 IP Network Video Recorder, No HDD

SKU: ALINVRE04010

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Alibi NVRE0401-0 Specifications

Video/Audio Input

Video/Audio Input

Jump to...
  • IP Video Input

    4-ch

  • Two-way Audio Input

    1-ch, RCA

Network

Jump to...
  • Incoming Bandwidth

    80 Mbps

  • Outgoing Bandwidth

    64 Mbps

  • Remote Users

    128

  • Protocols

    P2P, UPnP, NTP, DHCP, PPPoE

Video/Audio Output

Jump to...
  • HDMI/VGA Output

    HDMI: 3840 x 2160 / 30Hz, 1920 x 1080p / 60Hz, 1920 x 1080p / 50Hz, 1600 x 1200 / 60Hz, 1280 x 1024 / 60Hz, 1280 x 720 / 60Hz, 1024 x 768 / 60Hz
    VGA:1920 x 1080p / 60Hz, 1920 x 1080p / 50Hz, 1600 x 1200 / 60Hz, 1280 x 1024 / 60Hz, 1280 x 720 / 60Hz, 1024 x 768 / 60Hz

  • Recording Resolution

    4K / 5MP / 4MP / 3MP / 1080p / 960p / 720p / D1 / 2CIF / CIF

  • Audio Output

    1-ch, RCA

  • Synchronous Playback

    4-ch

  • Corridor Mode Screen

    3/4

Decoding

Jump to...
  • Decoding format

    Ultra 265 / H.265 / H.264

  • Live view/Playback

    4K / 5MP / 4MP / 3MP / 1080p / 960p / 720p / D1 / 2CIF / CIF

  • Capability

    2 x 4k @ 30, 3 x 5MP @ 30, 4 x 4MP @ 30

Hard Disk

Jump to...
  • SATA

    1 SATA interface

  • Capacity

    Up to 10TB for each disk

  • VCA Detection

    Face detection, Intrusion detection, Cross line detection, Audio detection, Defocus detection, Scene change detection, Auto tracking, Object Left Behind, Object Removed

  • VCA Search

    Face search, Behavior search

  • Statistical Analysis

    People counting

External Interface

Jump to...
  • Network Interface

    1 RJ45 10M / 100M self adaptive Ethernet Interface

  • USB Interface

    Rear panel: 1 x USB 2.0,1 x USB3.0

  • Interface

    4 independent 100 Mbps PoE network interfaces

  • Max Power

    Max 30 W for single port
    Max 54 W in total (13.5 W for each)

  • Supported Standard

    IEEE 802.3at, IEEE 802.3af

General

Jump to...
  • Power Supply

    48 Vdc
    Power Consumption: <=9 W (without HDD)

  • Working Environment

    +14 Degree F - +131 Degree F (-10 Degree C - + 55 Degree C)
    Relative humidity <=90% (noncondensing)

  • Dimensions (W x D x H)

    8.1 x 8.1 x 1.8 " (205 x 205 x 47mm)

  • Weight

    1.32 lbs (<=0.6kg) (without HDD)

  • UPC Code

    810094730321

About Alibi NVRE0401-0

A professional IP recording solution for home or small business applications featuring plug-and-play 8.0 megapixel resolution support for up to 4 IP cameras.

Protect your home or business with the Supercircuits 4-channel NVR-ideal for small to mid-size business applications. It supports up to 4 IP cameras and offers one hard drive bay up to 10TB, and a recording resolution of up to 8.0 megapixels for ultra-sharp, high-resolution surveillance. It also offers easy plug-and-play installation, smart analytic detection, and high-resolution security monitoring.

The free Guard Viewer mobile app enables you to view your live and recorded video remotely-from anywhere, from your Android or iOS mobile device.

Plug-and-play setup
Utilizes power-over-ethernet (PoE) technology for an easy and flexible installation process. With PoE technology, each camera only needs a single cable run to connect it to the NVR. Install your cameras where you need them without the need for a nearby power outlet.

Lower Bandwidth and Storage Usage
Supports Ultra H.265, H.265, and H.264 codecs that help reduce file size, maximize recording time and save hard drive space.

Smart analytics
This versatile recorder allows multiple selectable recording modes: intrusion, cross line, defocus, and scene change detection, along with VCA search. Search, and alert features include event search, event log, and email notification.

Easy management
An intuitive interface along with access to the free Guard Viewer mobile app and Guard Station CMS for straightforward management.

Powered by the MStar chipset
That meet federal government compliance requirements

Alibi NVRE0401-0 Features

  • Up to 4 IP cameras can be connected
  • Powered by the MStar chipset that meet federal government compliance requirements
  • 80 Mbps recording capability
  • Ultra H.265/H.264 codec support
  • 1 hard drive bay @ 14TB
  • Integrated 4-port PoE switch
  • One-click Cloud firmware updating

Key Features

  • Up to 4 IP cameras can be connected
  • Powered by the MStar chipset that meet federal government compliance requirements
  • 80 Mbps recording capability
  • Ultra H.265/H.264 codec support
  • 1 hard drive bay @ 14TB
  • Integrated 4-port PoE switch

What's in the box:

  • Alibi NVRE0401-0 4-Channel Ultra H.265 IP Network Video Recorder
  • Mouse
  • Power Supply Adapter
  • Power Cable
  • HDD SATA Cable
  • HDD Power Cable
  • 4x Screws
  • User Manual
  • Alibi 3 Year Limited Warranty
