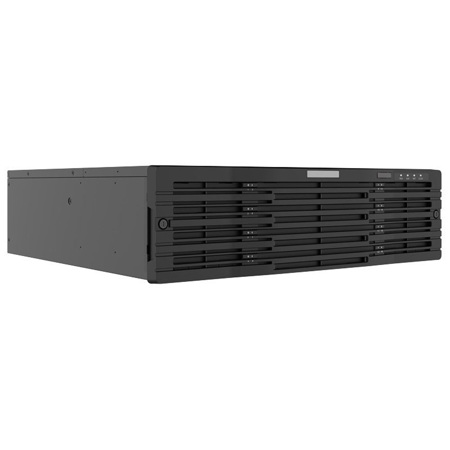

Alibi NVRH12816-0 128-Channel Ultra H.265 IP RAID Standalone Network Video Recorder, No HDD

SKU: ALINVRH12816

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the maximum resolution this video recorder supports?

The NVRH12816-0 128-Channel Ultra H.265 IP RAID Standalone Network Video Recorder supports a maximum recording resolution of up to 12.0 megapixels.

Can I view the recorded videos remotely?

Yes, with the free Guard Viewer mobile app, you can view your live and recorded video remotely from anywhere using your Android or iOS mobile device.

What is the purpose of the Automatic Network Replenishment (ANR) Technology?

The Automatic Network Replenishment (ANR) Technology enhances storage reliability by compensating for network disruptions, ensuring continuous recording and safeguarding your data integrity.

What kind of smart analytic detection features does this recorder offer?

The NVRH12816-0 offers a range of smart analytic detection features including intrusion, cross line, defocus, and scene change alerts. These features allow for customizable, focused security monitoring.

How many hard drive bays does this video recorder have?

The NVRH12816-0 is equipped with sixteen hard drive bays, each capable of housing up to 10TB of storage.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Alibi NVRH12816-0 Specifications

Video/Audio Input

Video/Audio Input

Jump to...
  • IP Video Input

    128-ch

  • Two-way Audio Input

    1-ch, BNC

Network

Jump to...
  • Incoming Bandwidth

    512 Mbps

  • Outgoing Bandwidth

    384 Mbps

  • Remote Users

    128

  • Protocols

    P2P, UPnP, NTP, DHCP, PPPoE

Video/Audio Output

Jump to...
  • HDMI/VGA Output

    VGA: 1920 x 1080p / 60 Hz, 1920 x 1080p / 50 Hz, 1600 x 1200 / 60 Hz, 1280 x 1024 / 60 Hz, 1280 x 720 / 60 Hz, 1024 x 768 / 60 Hz
    HDMI1: 4K (3840 x 2160) / 30 Hz, 1920 x 1080p / 60 Hz, 1920 x 1080p / 50 Hz, 1600 x 1200 / 60 Hz, 1280 x 1024 / 60 Hz, 1280 x 720 / 60 Hz, 1024 x 768 / 60 Hz
    HDMI2: 4K (3840 x 2160) / 30 Hz, 1920 x 1080p / 60 Hz, 1920 x 1080p / 50 Hz, 1600 x 1200 / 60 Hz, 1280 x 1024 / 60 Hz, 1280 x 720 / 60 Hz, 1024 x 768 / 60Hz

  • Recording Resolution

    12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080p / 960p / 720p / D1 / 2CIF / CIF

  • Audio Output

    1-ch, BNC

  • Synchronous Playback

    16-ch

  • Corridor Mode Screen

    3 / 4 / 5 / 7 / 9 / 10 / 12 / 16 / 32

Decoding

Jump to...
  • Decoding format

    Ultra 265, H.265, H.264

  • Live view/Playback

    12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080p / 960p / 720p / D1 / 2CIF / CIF

  • Capability

    4 x 12MP @ 20 fps, 4 x 4K @ 30 fps, 16 x 1080p @ 30 fps, 36 x 720p @ 30 fps, 64 x D1

Hard Disk

Jump to...
  • SATA

    16 SATA interfaces

  • Capacity

    Up to 10TB for each HDD

  • eSATA

    1 eSATA interface

  • miniSAS

    2 miniSAS ports

  • VCA Detection

    Face detection, Intrusion detection, Cross line detection, Audio detection, Defocus detection, Scene change detection, Auto tracking

  • VCA Search

    Face search, Behavior search

  • Statistical Analysis

    People counting

Disk Array

Jump to...
  • Array Type

    RAID 0, 1, 5, 6, 10, 50, 60

External Interface

Jump to...
  • Network Interface

    4 RJ-45 10M / 100M / 1000M adaptive Ethernet Interface
    2 x 1000M SFP Ethernet Interface

  • Serial Interface

    1 x RS232, 1 x RS485

  • USB Interface

    Rear panel: 4 x USB3.0

  • Alarm In

    24-ch

  • Alarm Out

    8-ch

  • Power Output

    12 V

General

Jump to...
  • Power Supply

    100 - 240 Vac
    Power Consumption: <= 50 W (without HDD)

  • Working Environment

    +14 Degree F - +131 Degree F (-10 Degree C - + 55 Degree C)
    Relative humidity <= 90% (noncondensing)

  • Chassis

    19" rack-mounted 3U chassis

  • Dimensions

    18.8 x 19 x 5.1" (482 x 477 x 131mm)

  • Weight

    22.05 lbs (<=10kg) (without HDD)

  • UPC Code

    810094730352

About Alibi NVRH12816-0

Take your enterprise-level surveillance to new heights with the sophisticated NVRH12816-0 128-Channel Ultra H.265 IP RAID Standalone Network Video Recorder. This advanced recording solution is engineered to support an extensive network of up to 128 IP cameras, making it an ideal choice for comprehensive security systems in large-scale business environments.

Experience unparalleled clarity with support for recording resolutions up to 12.0 megapixels, ensuring that every detail is captured with precision. The NVRH12816-0 is equipped with sixteen hard drive bays, each capable of housing up to 10TB of storage, allowing for extensive video archiving without the need for immediate offloading.

This state-of-the-art NVR boasts an innovative plug-and-play installation process, streamlining setup and reducing the time required to get your surveillance system operational. With smart analytic detection features, including intrusion, cross line, defocus, and scene change alerts, you can customize your monitoring to focus on the most critical aspects of your security.

Lower your bandwidth and storage demands with the NVR's support for Ultra H.265, H.265, and H.264 codecs. These advanced compression technologies significantly reduce file sizes, extend recording times, and conserve hard drive space without compromising video quality.

The NVRH12816-0 also features Automatic Network Replenishment (ANR) Technology, enhancing storage reliability by compensating for network disruptions, ensuring continuous recording and safeguarding your data integrity.

Manage your surveillance system with ease using the intuitive interface of the NVR, and stay connected with the free Guard Viewer mobile app for Android and iOS devices. This allows for remote viewing of live and recorded video, ensuring you're always in the loop, no matter where you are.

Powered by the MStar chipset, the NVRH12816-0 meets rigorous federal government compliance requirements, offering you peace of mind that your surveillance solution is not only powerful but also secure and reliable.

With its combination of high-tech features and user-friendly operation, the NVRH12816-0 128-Channel Ultra H.265 IP RAID Standalone Network Video Recorder is the sophisticated choice for businesses seeking a top-tier security recording solution without the need for additional hardware.

Alibi NVRH12816-0 Features

  • Up to 128 IP cameras
  • Powered by the MStar chipset that meet federal government compliance requirements
  • Up to 12MP resolution recording
  • Sixteen hard drive bays @ 14TB
  • Simultaneous playback capability: 4 x 12MP@20 fps, 4 x 4K@30 fps
  • 512 Mbps recording capability
  • HDMI1/VGA and HDMI2 independent outputs
  • Support 2-ch HDMI, 1-ch VGA, 1-ch CVBS, HDMI2 at up to 4K(3840x2160) resolution
  • Ultra H.265/H.265/H.264 codec support
  • Supports RAID 0/1/5/6/10/50/60
  • ANR Network Storage
  • One-click Cloud firmware updating
  • Optional 4-port HDMI decoding card for Video wall feature using ALI-NR1280X-16

Warranty Information

This product has a limited warranty of 36 months for parts and 36 months for labor.

Key Features

  • Advanced 128-channel network video recorder, ideal for large-scale enterprise surveillance systems
  • Supports Ultra H.265, H.265, and H.264 codecs, optimizing storage and bandwidth usage
  • High-resolution recording up to 12.0 megapixels, ensuring ultra-clear surveillance footage
  • Features Automatic Network Replenishment (ANR) technology for enhanced storage reliability
  • Includes smart analytic detection features for customized, focused security monitoring
  • Comes with a free Guard Viewer mobile app for remote live and recorded video viewing

What's in the box:

  • Alibi NVRH12816-0 128-Channel Ultra H.265 IP RAID Standalone Network Video Recorder
  • USB Mouse
  • Power Supply
  • Power Cable
  • 16x HDD Handles
  • 2x Screws
  • 6x Phoenix Terminal
  • User Documentation
  • Alibi 3 Year Limited Warranty
