Alibi 4K Ultra HD 8-Channel 1TB NVR Security System with 4x 8MP 98' IR IP Bullet Cameras

SKU: ALISCN8B4081

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Alibi Security System Specifications

ENC38-0 Camera: Camera

ENC38-0 Camera: Camera

Jump to...
  • Sensor

    1/3", 8.0 megapixel, progressive scan, CMOS

  • Lens

    2.8 mm @ F2.0

  • DORI Distance

    Detect: 275' (84m)
    Observe: 110' (33.6m)
    Recognize: 55' (16.8m)
    Identify: 27' (8.4m)

  • Angle of view

    H: 101 Degree
    V: 51.1 Degree
    O: 131.3 Degree

  • Adjustment angle

    Pan: 0 Degree - 360 Degree
    Tilt: 0 Degree - 90 Degree
    Rotate: 0 Degree - 360 Degree

  • Shutter

    Auto / Manual, 1 - 1/100000 s

  • Min. Illumination

    Color: 0.05 Lux (F2.0, AGC ON) 0 Lux with IR on

  • Digital noise reduction

    2D / 3D DNR

  • Day/Night

    IR-cut filter with auto switch (ICR)

  • S/N Ratio

    > 56 dB

  • IR Range

    Up to 98' (30m)

  • WDR

    120 dB

ENC38-0 Camera: Video

Jump to...
  • Video Compression

    Ultra 265, H.265, H.264, MJPEG

  • H.264 code profile

    Baseline Profile, Main Profile

  • Frame Rate

    Main Stream: 8MP (3840x2160): Max. 20 fps; 5MP (2944x1656): Max. 30 fps; 4MP (2560x1440): Max. 30 fps; 2MP (1920x1080): Max. 30 fps
    Sub Stream: 720P (1280x720): Max. 20 fps
    Third Stream: 4CIF (704x576): Max. 20 fps

  • HLC

    Supported

  • BLC

    Supported

  • OSD

    Up to 4 OSDs

  • Privacy Mask

    Up to 4 areas

  • ROI

    Up to 2 areas

  • Motion Detection

    Up to 4 areas

ENC38-0 Camera: Smart

Jump to...
  • Behavior Detection

    Human Body Detection

ENC38-0 Camera: Network

Jump to...
  • Protocols

    IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QoS

  • Compatible Integration

    ONVIF (Profile S, Profile T), API

  • Client

    Guard Station CMS
    Guard Tools Software
    Guard Viewer Mobile

ENC38-0 Camera: Interface

Jump to...
  • Network

    10 / 100M Base-TX Ethernet

ENC38-0 Camera: General

Jump to...
  • Power

    12 Vdc +/-25%, PoE (IEEE802.3af)
    Power consumption: Max 5.5 W

  • Working Environment

    -22 Degree F - 140 Degree F (-30 Degree C - +60 Degree C)
    Relative humidity: <=95% (non-condensing)

  • Ingress Protection

    IP67

  • Reset Button

    Supported

  • Dimensions (L x W x H)

    6.6 x 2.5 x 2.5" (167.3 x 62.9 x 62.7mm)

  • Weight

    15.84 oz (450g)

NVRE0801-0 NVR: Video/Audio Input

Jump to...
  • IP Video Input

    8-ch

  • Two-way Audio Input

    1-ch, RCA

NVRE0801-0 NVR: Network

Jump to...
  • Incoming Bandwidth

    80 Mbps

  • Outgoing Bandwidth

    64 Mbps

  • Remote Users

    128

  • Protocols

    P2P, UPnP, NTP, DHCP, PPPoE

NVRE0801-0 NVR: Video/Audio Output

Jump to...
  • HDMI/VGA Output

    HDMI: 3840 x 2160 / 30Hz,1920 x 1080p / 60Hz, 1920 x 1080p / 50Hz, 1600 x 1200 / 60Hz, 1280 x 1024 / 60Hz, 1280 x 720 / 60Hz, 1024 x 768 / 60Hz
    VGA: 1920 x 1080p / 60Hz, 1920 x 1080p / 50Hz, 1600 x 1200 / 60Hz, 1280 x 1024 / 60Hz, 1280 x 720 / 60Hz, 1024 x 768 / 60Hz

  • Recording Resolution

    4K / 5MP / 4MP / 3MP / 1080p / 960p / 720p / D1 / 2CIF / CIF

  • Audio Output

    1-ch, RCA

  • Synchronous Playback

    8-ch

  • Corridor Mode Screen

    3 / 4 / 5 / 7 / 9

NVRE0801-0 NVR: Decoding

Jump to...
  • Decoding format

    Ultra 265 / H.265 / H.264

  • Liveview / Playback

    4K / 5MP / 4MP / 3MP / 1080p / 960p / 720p / D1 / 2CIF / CIF

  • Capability

    2 x 4K @ 30 fps, 3 x 5MP @ 30 fps, 4 x 4MP @ 30 fps, 5 x 3MP @ 30 fps, 8 x 1080p @ 30 fps

NVRE0801-0 NVR: Hard Disk

Jump to...
  • SATA

    1 SATA interface

  • Capacity

    Up to 10TB for each disk

NVRE0801-0 NVR: Smart

Jump to...
  • VCA Detection

    Face detection, Intrusion detection, Cross line detection, Audio detection, Defocus detection, Scene change detection, Auto tracking, Object Left Behind, Object Removed

  • VCA Search

    Face search, Behavior search

  • Statistical Analysis

    People counting

NVRE0801-0 NVR: External Interface

Jump to...
  • Network Interface

    1 RJ45 10M / 100M self-adaptive Ethernet Interface

  • USB Interface

    Rear panel: 1 x USB2.0, 1 x USB3.0

NVRE0801-0 NVR: POE

Jump to...
  • Interface

    8 independent 100 Mbps PoE network interfaces

  • Max Power

    Max 30 W for single port Max 108 W in total (13.5 W for each)

  • Supported Standard

    IEEE 802.3at, IEEE 802.3af

NVRE0801-0 NVR: General

Jump to...
  • Power Supply

    52 Vdc
    Power Consumption: <=8 W (without HDD)

  • Working Environment

    +14 Degree F - +131 Degree F (-10 Degree C - + 55 Degree C)
    Relative humidity <=90% (noncondensing)

  • Dimensions (W x D x H)

    10.2 x 9.4 x 1.9" (260 x 240 x 47mm)

  • Weight

    Without HDD 2.20 lbs (1kg)

  • UPC Code

    810094731021

About Alibi Security System

Easy-to-install 4-camera IP security system provides 24/7 protection. Complete 8.0 megapixel 4-camera IP video security system, including all the components you need for hassle-free installation and 24/7 monitoring. This system comes with a security grade NVR (network video recorder) with a 1TB hard drive, enabling you to store video recordings locally, without additional monthly fees for cloud storage. With infrared night vision, your cameras can see up to 98' in the dark, for complete day/night protection.

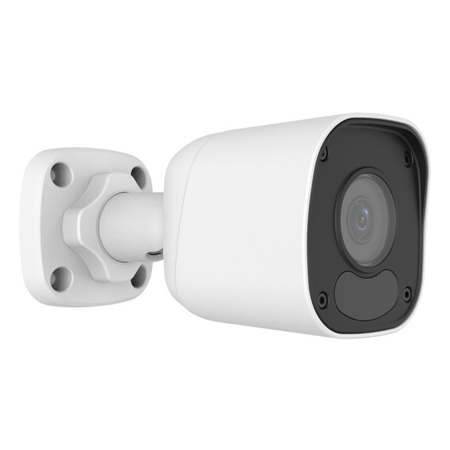

- ENC38-0 8.0MP Bullet Camera -
Ideal for installation in smaller spaces but features a wide field of view, allowing you to capture video in larger areas.

Multi-Megapixel Resolution Video
8MP resolution provides exceptional clarity and detail for most applications.

Smart Full-Frame IR = Better Video at Night
Advanced full frame illumination technology helps you capture better nighttime video footage up to 98' with more contrast and clarity.

Better Images
IR anti-reflection window increases infrared transmittance, and 3D Digital Noise Reduction assists with pixel capture and therefore produces cleaner video.

Lower Bandwidth and Storage Usage
Ultra H.265 Compression technology reduces the overall requirements of the video stream, saving you bandwidth and hard drive space.

Easy management
An intuitive interface along with access to the free Guard Viewer mobile app and Guard Station CMS for straightforward management.

Smart Analytics Include:
• Human Body Detection
• Motion Detection
• Intrusion Detection
• Tampering Alarm


- NVRE0801-0 8-Channel Security NVR -
A professional IP recording solution for small to mid-size business applications featuring plug-and-play support up to 8 IP cameras.

Plug-and-play setup
Utilizes power-over-ethernet (PoE) technology for an easy and flexible installation process. With PoE technology, each camera only needs a single cable run to connect it to the NVR. Install your cameras where you need them without the need for a nearby power outlet.

Lower Bandwidth and Storage Usage
Supports Ultra H.265, H.265, and H.264 codecs that help reduce file size, maximize recording time and save hard drive space.

Smart analytics
This versatile recorder allows multiple selectable recording modes: intrusion, cross line, defocus, and scene change detection, along with VCA search and alert features include event search, event log, and email notification.

Easy management
An intuitive interface along with access to the free Guard Viewer mobile app and Guard Station CMS for straightforward management.

Powered by the MStar chipset
That meet federal government compliance requirements.

Features:
• Up to 8 IP cameras can be connected
• Powered by the MStar chipset that meet federal government compliance requirements
• 80 Mbps recording capability
• Ultra H.265/H.265/H.264 codec support
• 1 hard drive bay @ 14TB
• Integrated 8-port PoE switch
• One-click Cloud firmware updating

Alibi Security System Features

  • 4x 8.0 megapixel resolution cameras
  • 98' smart IR range
  • Up to 8 IP cameras can be connected
  • Simultaneous playback capability
  • Integrated 8-port PoE switches - reduces the need for additional network switches
  • 80 Mbps recording capability
  • Support up to 8.0 megapixel recording solution - high-resolution surveillance
  • Free Mobile App & CMS - simple remote management
  • One-click Cloud firmware updating
  • Includes 1TB hard drive

Key Features

  • 4x 8.0 megapixel resolution cameras
  • 98' smart IR range
  • Up to 8 IP cameras can be connected
  • Simultaneous playback capability
  • Integrated 8-port PoE switches - reduces the need for additional network switches
  • 80 Mbps recording capability

What's in the box:

  • 4x 8.0MP Bullet Cameras (ENC38-0)
  • 8-Channel 1TB HDD NVR (NVRE0801-0)
  • 100' Terminated CAT5 Ethernet Cable
  • Quick Start Guide
  • Video Warning Decal
  • Alibi 3 Year Limited Warranty
