Alibi HDVision 8-Channel Wire-Free 32GB NVR Security System with 6x 2MP 65' IR IP White Light Bullet Cameras

SKU: ALIWF6C26B32

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Alibi Security System Specifications

Wire-Free Camera

Wire-Free Camera

Jump to...
  • Image Sensor

    1/2.7" 2MP progressive scan CMOS

  • DSP

    SN93710

  • Effective Pixel (H x V)

    2MP (1920 x 1080)

  • Scan System

    Progressive Scan

  • Synchronization

    Internal

  • Minimum Illumination

    0.05lux@F1.2(AGC ON), 0Lux with IR

  • S/N Ratio

    40dB

  • Resolution (H x V)

    2MP (1920 x 1080)

  • Aspect Ratio

    16:9

  • White Balance

    Auto

  • AES Speed

    Auto

  • AGC

    Auto

  • Noise Reduction

    3D

  • Audio

    Two-Way Audio

  • Speaker

    Yes

  • Lens/ Lens Mount

    2.8mm/F1.8 fixed lens / M12

  • Viewing Angle

    D: 140 Degree
    H: 120 Degree
    V: 65 Degree

  • Power Source

    DC 4.2V +/-10%

  • Power Consumption

    1.8W

  • Current Consumption

    420mA (Activate) / 400micro A (Sleep)

  • Operating Tem Range

    -20 Degree C - 55 Degree C (-4 Degree F - 131 Degree F)

  • Operating Humid Range

    Less than 95% RH (No condensation)

  • Environment Rating

    IP66

  • Cold start Temp

    -20 Degree C (-4 Degree F)

  • Camera Housing Material

    Metal

  • RoHS Compliance

    Yes

  • IR Night Vision Range

    65' (20m)

  • Built-in IR LED/ICR

    Yes, 6 IR

  • Lens Filter / IR LED Type

    850nm

  • IR Angle

    Up to 115 Degree

  • PIR Angle

    Up to 115 Degree

  • PIR Distance

    Up to 10m / 33'

  • Battery Capacity

    2900mAh/ea

  • Battery Life Cycle

    Up to 350 (t)

  • Battery Info

    Required, Included

  • Battery Material

    Lithium ion

  • Battery Quantity

    6

  • Battery Type

    Non-universal

  • Dimensions

    5.35 x 2.87 x 3.5" (136 x 73 x 89mm)

  • Chipset

    Hi3520DV300

  • Operating System

    Linux (embedded)

  • Pentaplex

    Simultaneous view, playback, backup & remote monitoring

  • Number of Channels

    8 Channel

Inputs/Outputs

Jump to...
  • HDMI

    Yes

  • USB Port

    3 in the rear (USB2.0)

  • Video Output Resolution

    1920 x 1080; 1440 x 900; 1280 x 1024; 1280 x 720; 1024 x 768

Display

Jump to...
  • Live Display

    1/4/6

  • Live Display Speed

    Up to 60fps@1080P

  • System Navigation

    USB Mouse

  • Motion Area Setting

    Yes

  • Sensitivity levels

    1-8

  • Firmware Upgrade

    USB device / Network

  • User Authority

    By user group

  • Time Synchronization

    Auto time sync by NTP server

Recording

Jump to...
  • Video Compression

    H.264

  • Audio Compression

    G.711a

  • Recording Resolution

    1080P

  • Record Rate

    Total 60 fps (Adaptive. max 20 fps ea)

  • Recording Schedule

    By Trigger/ Manual

  • Post Recording

    Programmable by user - 10s, 20s, 30s

  • Reliability

    Watch-Dog, Auto-recovery after power failure

Playback

Jump to...
  • Playback Channel

    1/4/6

  • Playback Speed

    Variable max 2x

  • Playback Players

    Video Player

  • Search

    By Time/Date, Motion Detection, Manual Recording

  • Log Search

    Up to 4000 lines for system, configuration changes, motion/alarm detected, account, record and storage

Storage & Archive

Jump to...
  • Storage

    1 HDD (2.5" SATA), SD Card, USB flash drive

  • Maximum Capacity

    HDD 6TB
    SD Card 256GB (SanDisk)
    USB Flash Drive 128GB /USB External Drive 1TB

  • Backup Media

    USB flash drive & HDD & Network

  • Backup File Format

    MP4/AVI/H.264

Connectivity

Jump to...
  • Supported Operating Systems

    Windows, Mac OS

  • Remote Software

    HDVision Client Software (PC) & (Mac)

  • Email Notification

    Text with snapshot

  • Smart Phone

    iPad, iPhone, Android

  • System Configuration

    Full setup configuration over network

  • Ports

    Programmable by user

  • Network Protocol

    HTTP, IPv4, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP

  • Network Interface

    10/100M, RJ-45

  • Network Bit Rate

    Max 32Mbps total

  • Wi-Fi Frequency

    2.4 GHz FHSS (Frequency-Hopping Spread Spectrum)

  • Wi-Fi Distance

    Up to approximately 150' indoors / approximately 450' outdoors

General

Jump to...
  • Power Consumption

    3watts (No HDD Installed)

  • Supply Voltage

    12VDC/2A

  • Operating Temperature

    14 Degree - 131 Degree F (-10 Degree - +55 Degree C)

  • Humidity

    10 - 90% NC

  • Dimensions (W x D x H)

    11.4 x 3.7 x 11" (290 x 95 x 280mm)

  • Weight

    2.4 lbs (1.1kg)

  • UPC Code

    810094731014

About Alibi Security System

Easy-to-install 6-camera wire-free IP security system provides 24/7 protection, and flexibility to add more cameras. Complete 2.0 MP 6-camera wire-free IP video security system, including all the components you need for full 1080p HD recording resolution without the hassle of installing long distance cabling. This system comes with a 8-channel NVR with a 32GB micro SD card (installed).

This kit's wire-free security cameras are designed and engineered for quick and easy installation. If you're within the NVR Wi-Fi range, you'll have the flexibility and freedom to install anywhere. It is recommended to place each camera at least 7 feet above the ground and angle it slightly downward toward the monitoring area, No more than 20 feet away.

This wire-free security camera system features advanced motion detection with a built-in passive infrared (PIR) sensor, to activate the cameras and start recording the moment that motion is detected. The PIR sensor detects only heat-emitting objects, such as people, animals and vehicles. It does Not record motion from unwanted objects such as a tree blowing in the wind, which saves battery life and storage space.

This wire-free security solution uses HDVision private protocol (2.4GHz) to remove redundancy data and improve the transmit stream, to keep a stable connection with strong anti-interference. The wire-free security cameras have an omnidirectional antenna that is capable of penetrating three walls, and transmitting up to 150 feet indoors, and up to 450 feet outdoors with clear line of sight. This gives you tons of flexibility regarding where to install the cameras.

This complete security camera system includes two powerful and long-lasting 3-cell lithium-ion batteries. Assuming that the camera wakes up 20 times every day and records for 10 seconds each time, it can last up to 6 months on a single charge. The power pack's quick-release function allows for easy battery replacement, without the need to remove the camera from its mount. It also supports direct charging by solar panel or charging cable.

The system's bullet security cameras also feature a built in microphone and speaker, for two-way audio communication when using the HDVision mobile app. The system also records audio with motion events.

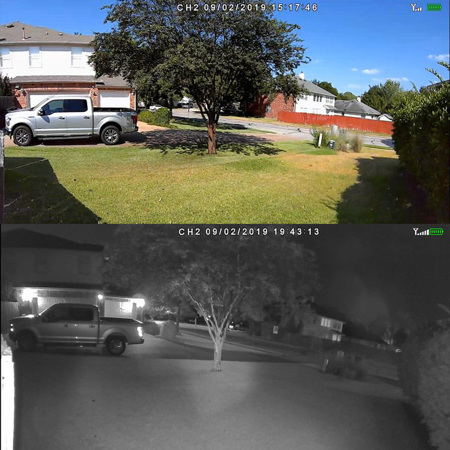

For nighttime surveillance or any low-light application, this IP camera features Smart IR technology, which:
• Reduces overexposure of the IR LEDs at the center of the image
• Increases illuminant efficiency up to 30%
• Produces LED light in rectangle form to better fit screen size
• Captures images up to 65' in the dark without washing out the subject at closer ranges

And with an IP66 weather-rated metal enclosure, these wire-free security cameras have an operating temperature rating of -4 Degree to 131 Degree F and are protected from elements such as dust, sand and rain, making this kit an ideal outdoor security solution.

Key Features and Capabilities:

Megapixel Resolution
Cover more area and see more detail. Megapixel cameras can cover a larger area without compromising image quality, providing the level of detail needed for facial recognition and license plate identification.

Smart IR Array
See clear, sharp images in the dark. Smart IR technology offers several advantages over standard IR, including:
• Produces clearer, brighter images in low light and at night
• Delivers a wider illumination spread
• Unique rectangular IR LED design produces a uniformly illuminated image across the entire screen
• Reduces overexposure at the center of the image and eliminates hot spots
• Eliminates blooming from lights by reducing ambient light pollution
• Reduces video Noise for a clearer nighttime image, and reduces bandwidth consumption and video storage requirements
• Delivers 30% greater energy efficiency

Alibi Security System Features

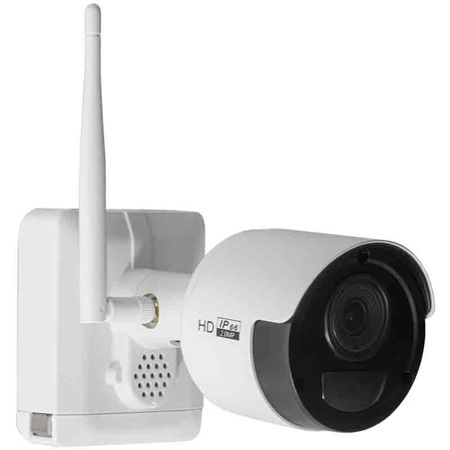

  • 6 Wire-free bullet cameras with 1920 x 1080p resolution
  • NVR Supports up to 8 wire-free cameras
  • Supports 32' White Light Distance and Siren Deterrence
  • Smart IR up to 65' distance
  • 2.8mm fixed lens offers 118 degree FOV
  • Wi-Fi range up to 164' with clear line of sight
  • PIR Sensor sends motion detection push Notifications to RXCamView mobile app
  • Cameras support built-in mic and speaker for two-way communication
  • Up to 128GB micro SD card (32GB micro SD card included)

Warranty Information

This product has a limited warranty of 36 months for parts and 36 months for labor.

Key Features

  • 6 Wire-free bullet cameras with 1920 x 1080p resolution
  • NVR Supports up to 8 wire-free cameras
  • Supports 32' White Light Distance and Siren Deterrence
  • Smart IR up to 65' distance
  • 2.8mm fixed lens offers 118 degree FOV
  • Wi-Fi range up to 164' with clear line of sight

What's in the box:

  • 6x 2MP IP Bullet Cameras
  • 8-Channel 32GB NVR with Power Supply
  • 6x Rechargeable Lithium-ion Battery
  • USB Power Adapter and Charging Cable (12')
  • USB Mouse
  • Mounting Brackets and Hardware
  • Remote Control
  • Quick Start Guide
  • Alibi 3 Year Limited Warranty
