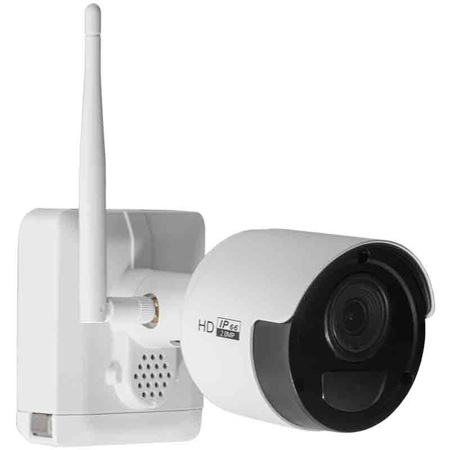

Alibi HDVision 8-Channel Wire-Free 32GB NVR Security System with 2x 2MP 65' IR IP White Light Bullet Cameras

SKU: ALIWF6C2B32

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Alibi Security System Specifications

Wire-free Camera

Wire-free Camera

Jump to...
  • Image Sensor

    1/2.7" 2MP progressive scan CMOS

  • DSP

    SN93710

  • Effective Pixel (H x V)

    2MP (1920 x 1080)

  • Scan System

    Progressive Scan

  • Synchronization

    Internal

  • Minimum Illumination

    0.05lux@F1.2(AGC ON), 0Lux with IR

  • S/N Ratio

    40dB

  • Resolution (H x V)

    2MP (1920 x 1080)

  • Aspect Ratio

    16:9

  • White Balance

    Auto

  • AES Speed

    Auto

  • AGC

    Auto

  • Noise Reduction

    3D

  • Audio

    Two-Way Audio

  • Speaker

    Yes

  • Lens/ Lens Mount

    2.8mm/F1.8 fixed lens / M12

  • Viewing Angle

    D: 140 Degree
    H: 120 Degree
    V: 65 Degree

  • Power Source

    DC 4.2V +/-10%

  • Power Consumption

    1.8W

  • Current Consumption

    420mA (Activate) / 400micro A (Sleep)

  • Operating Tem Range

    -20 Degree C - 55 Degree C (-4 Degree F - 131 Degree F)

  • Operating Humid Range

    Less than 95% RH (No condensation)

  • Environment Rating

    IP66

  • Cold start Temp

    -20 Degree C (-4 Degree F)

  • Camera Housing Material

    Metal

  • RoHS Compliance

    Yes

  • IR Night Vision Range

    65' (20m)

  • Built-in IR LED/ICR

    Yes, 6 IR

  • Lens Filter / IR LED Type

    850nm

  • IR Angle

    Up to 115 Degree

  • PIR Angle

    Up to 115 Degree

  • PIR Distance

    Up to 10m / 33'

  • Battery Capacity

    2900mAh/ea

  • Battery Life Cycle

    Up to 350 (t)

  • Battery Info

    Required, Included

  • Battery Material

    Lithium ion

  • Battery Quantity

    2

  • Battery Type

    Non-universal

  • Dimensions

    5.35 x 2.87 x 3.5" (136 x 73 x 89mm)

  • Chipset

    Hi3520DV300

  • Operating System

    Linux (embedded)

  • Pentaplex

    Simultaneous view, playback, backup & remote monitoring

  • Number of Channels

    8 Channel

Inputs/Outputs

Jump to...
  • HDMI

    Yes

  • USB Port

    3 in the rear (USB2.0)

  • Video Output Resolution

    1920 x 1080; 1440 x 900; 1280 x 1024; 1280 x 720; 1024 x 768

Display

Jump to...
  • Live Display

    1/4/6

  • Live Display Speed

    Up to 60fps@1080P

  • System Navigation

    USB Mouse

  • Motion Area Setting

    Yes

  • Sensitivity levels

    1-8

  • Firmware Upgrade

    USB device / Network

  • User Authority

    By user group

  • Time Synchronization

    Auto time sync by NTP server

Recording

Jump to...
  • Video Compression

    H.264

  • Audio Compression

    G.711a

  • Recording Resolution

    1080P

  • Record Rate

    Total 60 fps (Adaptive. max 20 fps ea)

  • Recording Schedule

    By Trigger/ Manual

  • Post Recording

    Programmable by user - 10s, 20s, 30s

  • Reliability

    Watch-Dog, Auto-recovery after power failure

Playback

Jump to...
  • Playback Channel

    1/4/6

  • Playback Speed

    Variable max 2x

  • Playback Players

    Video Player

  • Search

    By Time/Date, Motion Detection, Manual Recording

  • Log Search

    Up to 4000 lines for system, configuration changes, motion/alarm detected, account, record and storage

Storage & Archive

Jump to...
  • Storage

    1 HDD (2.5" SATA), SD Card, USB flash drive

  • Maximum Capacity

    HDD 6TB
    SD Card 256GB (SanDisk)
    USB Flash Drive 128GB /USB External Drive 1TB

  • Backup Media

    USB flash drive & HDD & Network

  • Backup File Format

    MP4/AVI/H.264

Connectivity

Jump to...
  • Supported Operating Systems

    Windows, Mac OS

  • Remote Software

    HDVision Client Software (PC) & (Mac)

  • Email Notification

    Text with snapshot

  • Smart Phone

    iPad, iPhone, Android

  • System Configuration

    Full setup configuration over network

  • Ports

    Programmable by user

  • Network Protocol

    HTTP, IPv4, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP

  • Network Interface

    10/100M, RJ-45

  • Network Bit Rate

    Max 32Mbps total

  • Wi-Fi Frequency

    2.4 GHz FHSS (Frequency-Hopping Spread Spectrum)

  • Wi-Fi Distance

    Up to approximately 150' indoors / approximately 450' outdoors

General

Jump to...
  • Power Consumption

    3watts (No HDD Installed)

  • Supply Voltage

    12VDC/2A

  • Operating Temperature

    14 Degree - 131 Degree F (-10 Degree - +55 Degree C)

  • Humidity

    10 - 90% NC

  • Dimensions (W x D x H)

    11.4 x 3.7 x 11" (290 x 95 x 280mm)

  • Weight

    2.4 lbs (1.1kg)

About Alibi Security System

Overhaul your security setup with the HDVision 8-Channel Wire-Free 32GB NVR Security System, featuring 2x 2MP 65' IR IP White Light Bullet Cameras. This comprehensive security solution offers 24/7 protection, with the flexibility to expand your system by adding more cameras as needed.

The system boasts a full 1080p HD recording resolution, courtesy of its 2.0 MP wire-free IP cameras, ensuring crystal clear footage without the need for complex long-distance cabling. The kit includes an 8-channel NVR, equipped with a pre-installed 32GB micro SD card, providing ample storage for your security footage.

Designed for ease of installation, the wire-free security cameras can be set up anywhere within the NVR Wi-Fi range, offering the freedom to secure any area of your property. For optimal coverage, it's suggested to position each camera at least 7 feet above the ground, angled slightly downward towards the area of interest, and no more than 20 feet away.

The system's advanced motion detection is powered by a built-in passive infrared (PIR) sensor, which triggers the cameras to record upon detecting motion from heat-emitting objects like people, animals, and vehicles. This smart feature eliminates unnecessary recording from non-heat-emitting objects, such as trees swaying in the wind, thereby conserving battery life and storage space.

Utilizing HDVision's private protocol (2.4GHz), the system efficiently removes redundant data to enhance the transmission stream, ensuring a stable connection with robust anti-interference capabilities. The cameras' omnidirectional antenna can penetrate up to three walls, transmitting up to 150 feet indoors and 450 feet outdoors with a clear line of sight, providing exceptional installation flexibility.

The system is powered by two durable 3-cell lithium-ion batteries, capable of lasting up to 6 months on a single charge, assuming 20 wake-ups per day with 10-second recordings each time. The quick-release function of the power pack facilitates easy battery replacement without the need to dismount the camera. The system also supports direct charging via a solar panel or charging cable.

Equipped with a built-in microphone and speaker, the bullet security cameras enable two-way audio communication through the HDVision mobile app, and also record audio with motion events. For low-light or nighttime surveillance, the IP camera employs Smart IR technology to capture clear images up to 65 feet in the dark, without washing out subjects at closer ranges.

Encased in an IP66 weather-rated metal enclosure, the cameras can withstand temperatures ranging from -4 to 131 degrees Fahrenheit, and are resistant to dust, sand, and rain, making them a perfect outdoor security solution.

Key features include Megapixel Resolution for covering larger areas without compromising image quality, and a Smart IR Array for clear, sharp images in low light and at night. The unique rectangular IR LED design produces a uniformly illuminated image across the entire screen, reduces overexposure at the center of the image, eliminates hot spots, and delivers 30% greater energy efficiency.

Upgrade your security with the HDVision 8-Channel Wire-Free 32GB NVR Security System, and enjoy peace of mind knowing your property is under constant surveillance.

Alibi Security System Features

  • 2 Wire-free bullet cameras with 1920 x 1080p resolution
  • NVR Supports up to 8 wire-free cameras
  • Supports 32' White Light Distance and Siren Deterrence
  • Smart IR up to 65' distance
  • 2.8mm fixed lens offers 118 degree FOV
  • Wi-Fi range up to 164' with clear line of sight
  • PIR Sensor sends motion detection push Notifications to RXCamView mobile app
  • Cameras support built-in mic and speaker for two-way communication
  • Up to 128GB micro SD card (32GB micro SD card included)

Warranty Information

This product has a limited warranty of 36 months for parts and 36 months for labor.

Key Features

  • Comprehensive 8-Channel Wire-Free NVR Security System with 32GB storage
  • Includes 2x 2MP 65' IR IP White Light Bullet Cameras for full 1080p HD resolution
  • Advanced motion detection with built-in Passive Infrared (PIR) sensor for efficient recording
  • Wire-free design with omnidirectional antenna for optimal installation flexibility
  • Robust weather resistance with IP66 rating, perfect for outdoor surveillance
  • Smart IR technology and Megapixel Resolution for clear, detailed images in all lighting conditions

What's in the box:

  • 2x 2MP IP Bullet Cameras
  • 8-Channel 32GB NVR with Power Supply
  • 2x Rechargeable Lithium-ion Battery
  • USB Power Adapter and Charging Cable (12')
  • USB Mouse
  • Mounting Brackets and Hardware
  • Remote Control
  • Quick Start Guide
  • Alibi 3 Year Limited Warranty
