Alphatron Broadcast Electronics EVF-035W-3G Electronic Viewfinder, 3.54" LED Backlit LCD, 24-Bit RGB 960x640 Resolution

SKU: ALNEVF035W3G

This item is no longer available.

See all Used options (1) from $89
Overview
Compare
Protection
Q&A

Questions & Answers

Trevr M : I am buying an Alphatron for use with my Blackmagic cinema camera. I am planning on powering both from a Switronix V-Mount battery kit. What cable do I need to buy (p-tap) to power the Alphatron?ELI H : I had custom made cables specifically made for it.Philip L : Seeing as I returned the EVF and I've never even considered the black magic I've no idea why I could answer this questionGERALD R : The Alphatron uses Mini XLR 4P for DC power in. The product comes with a D-Tap to mini XLR connection. I hope that helps answer your question.DAVID C : The Alphatron viewfinder is shipped with a cable with a P connecter. I really like my Alphatron unit from Adorama . Hopefully you will have the same positive experience.DANIEL L : I am using the Alphatron with a Sony F3. I have an Anton Bauer battery rail assembly with a D tap power output on the battery mount. The Alphatron I purchased came with a DC cable that connected between the D tap on the battery mount and viewfinder. No added cables should be necessary. Dan

Reviews about this item

Review Summary

2014-05-12T21:00:00

Rated 5 out of 5

Everyone at NAB 2014 said "Wow!"

As a Canon C100 owner I was unhappy with the built-in LCD and the joke that is the viewfinder. I was really disappointed when a well known local DP said (while using a pricey LCD loupe) "I'll never use this camera again!" At NAB 2014 I was very keen on finding a suitable EVF and my reaction was the same as most other visitors when I stumbled across the Alphatron booth. The Adorama booth staff were also very helpful when discussing this EVF. I got an opportunity to get my hands on many different EVF's ant NAB and the Alphatron was far superior on many levels. Cons - Price, compared to the cheap products Not quite enough focus adjustment Mini HDMI Pros - Value, compared to more expensive products Metal construction Ventilation HD-SDI conversion Trust-worthy image Magnifier shutter Overlays and assist features Realistic monitoring from the Canon C100

RUSSELL R.

About Alphatron Broadcast Electronics EVF-035W-3G

FEATURED REVIEWS

Everyone at NAB 2014 said "Wow!"

By RUSSELL R.

As a Canon C100 owner I was unhappy with the built-in LCD and the joke that is the viewfinder. I was really disappointed when a well known local DP said (while using a pricey LCD loupe) "I'll never use this camera again!" At NAB 2014 I was very keen on finding a suitable EVF and my reaction was the same as most other visitors when I stumbled across the Alphatron booth. The Adorama booth staff were also very helpful when discussing this EVF. I got an opportunity to get my hands on many differ...

View full Review

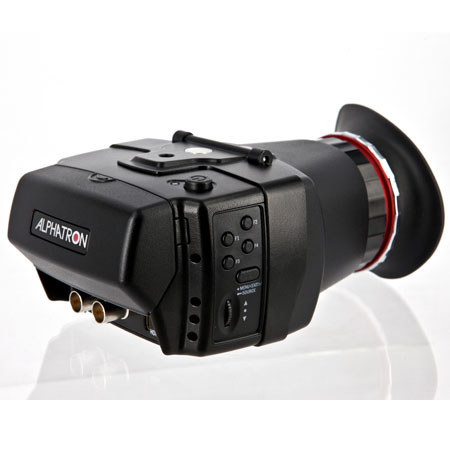

The Alphatron Broadcast Electronics EVF-035W-3G Electronic Viewfinder features a 3.54" LED-backlit LCD and displays 24-bit RGB at 960 x 640 resolution in a 16:9 aspect ratio. Brightness is at 500 nit and contrast ratio at 1000:1. The viewing angle is 160 x 160degree. The unit comes equipped with an adjustable diopter and a manual lens shutter for protection of the LCD.

Connections consist of SDI and HDMI inputs and outputs, a phone jack for calibration and a USB port for software upgrades. You can loop out from both SDI and HDMI and perform conversion out from HDMI to SDI.

Adjustable features include Brightness, Contrast, Color Temperature, Sharpness, various Scan modes, Markers, User Aspect Zoom and Blue Gun. Professional features available are 3G Level A/B, Audio Meter, Time Code, Range Error, Zebra, Luma y' Zone Check, Focus Assist and Internal Colorbar and Pluge Pattern.

The viewfinder has lightweight magnesium housing and can be powered by battery or via an included DC power supply.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Displays 24-bit RGB at 960 x 640 in 16
  • Adjustable diopter and a manual lens shutter
  • SDI and HDMI in / out/ loop-out / conversion out
  • A range of features from Markers to Pluge Pattern

What's in the box:

  • Alphatron Broadcast Electronics EVF-035W-3G Electronic Viewfinder
  • DC Power Supply
  • Alphatron Broadcast Electronics Warranty
