Altman Pegasus 8 Specifications

  • Light Source

    1x 130W Fixed White LED

  • LED Life Expectancy

    Up to 50,000 hours

  • Beam Angle

    15 - 70 deg. (manual adjustment)

  • Color Temperature

    3000K

  • CRI

    > 90

  • Dimming

    Mains Dim (forward- and reverse-phase)
    DMX/RDM

  • Illuminance

    Spot 10 deg. Beam Angle at 5' (1.5m): 16463.6 Lux (1530.1 fc)
    Medium 35 deg. Beam Angle at 5' (1.5m): 6671.2 (620 fc)
    Wide 70 deg. Beam Angle at 5' (1.5m): 3055.8 Lux (284 fc)

  • Lumens

    > 11,620

  • Protocols

    DMX512 and RDM

  • DMX Connectors

    1x 5-pin XLR, DMX input
    1x 5-pin XLR, DMX output

  • Display/Controls

    Three-digit display with three-button DMX control system

  • Input Voltage

    115 - 230 VAC, 50 - 60 Hz (auto-sensing), 1.2 A

  • Current Draw

    1.01 A at 120 VAC
    0.50 A at 240 VAC

  • Power Consumption

    130W

  • Power Connectors

    1x powerCON input (20 A at 120 VAC, 15 A at 230 VAC)
    1x powerCON output (18 A at 230 VAC, 13 A at 230 VAC)

  • Power Cord Daisy Chain

    Yes

  • Approvals and Ratings

    ETL, cETL & CE pending

  • Ambient Temperature

    32 to 104 deg. F (0 to 40 deg. C)

  • BTU/h

    425.5

  • Cooling

    Silent Active Cooling: < 19 dBA at 1.64" (0.5 m)

  • Construction

    All metal with corrosion-resistant materials and hardware

  • Housing Color

    Black

  • Dimensions

    Fixture: 13.00 x 10.75 x 11.65" (33.02 x 27.31 x 29.59cm)
    Fixture with Yoke: 18.00 x 13.65 x 11.65" (45.72 x 34.67 x 29.59cm)

  • Weight

    14.2 lbs (6.44kg) with C-clamp and yoke

About Altman Pegasus 8

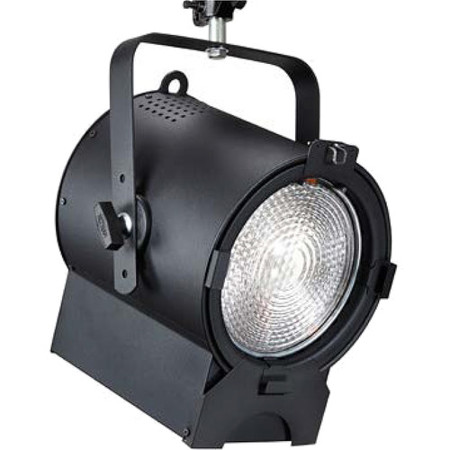

The Altman Pegasus 8 Fresnel is an 8-inch white output LED fresnel that is both Mains Dimmable and DMX controlled all in one luminaire. Pegasus replicates the soft light output that is expected from a theatrical or studio fresnel. Under 150 Watts the Pegasus 8 Fresnel meets the output of its 750 Watt incandescent counterpart. Under Mains Dim Control these fresnels can plug directly into your theatrical phase-cut dimmers whether they are forward or reverse phase and have been specially designed to replicate the smooth dimming curve of their incandescent twin. A 120 /230 switch on the back of unit allows you to set the dimming curve for both 120 VAC and 230 VAC dimming systems.

If your lighting system consists of constant power and DMX data then the Pegasus 8 is also right choice for you. With the flip of a switch the Pegasus 8 converts from Mains Dimmable to a DMX / RDM controlled unit. Pegasus is available in a number of different color temperatures from 2700K, 3000K, 4000K and 5000K. Pegasus boasts a very high CRI, >90 and can be used with standard theatrical gel as well as Gels that have been specifically formulated for LEDs.

Altman Pegasus 8 Features

  • Delivers the output performance of its 750W Incandescent complement at 140W
  • Mains Dimmable or DMX Controlled
  • 8" Size
  • 3000K Color temperature
  • PowerCON & DMX in / thru connections
  • Fully RDM Compliant when in DMX mode
  • Electronic universal power supply 100-240VAC
  • Fully homogenized beam
  • High resolution digital dimming for both Mains Dimmable and DMX control
  • 10 to 50 degree spot to flood beam spread
  • 50,000 hours of life expectancy
  • All metal construction
  • Spot to flood focus adjustment
  • C-Clamp, color frame and safety cable included
  • 14.2 lbs (6.44kg) (including C-Clamp safety cable and yoke)
  • cETLus listed and CE marked for indoor use
  • Made in the USA

Product Documents

User Manual

What's in the box:

  • Altman Pegasus 8 8 " 130W 3000K LED Fresnel Light
  • 510 Malleable Iron Pipe Clamp
  • 8-CF Color Frame
  • SC-36-BK 36 " Black Safety Cable with Spring Clip
  • PCL-PBG-12 5' 20A PowerCON Cable with Edison Connector
  • Altman 3 Year Limited Warranty
