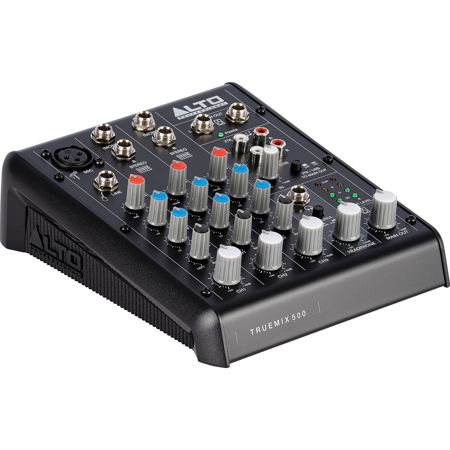

Alto Professional TrueMix 500 5-Channel Portable Analog Mixer with USB
See all Alto Professional items

Alto Professional TrueMix 500 5-Channel Portable Analog Mixer with USB

SKU: ALTRUEMIX5XU MFR: TRUEMIX500XUS
Be the first to review this itemAsk a Question
$89.00
Earn VIP Reward Points

Key Features

  • Effortlessly mix multiple audio sources with 5 channels for clear, dynamic sound.
  • Achieve studio-quality recordings directly to your computer via USB connectivity.
  • Take your sound anywhere; this portable analog mixer is perfect for on-the-go creators.
  • Enjoy intuitive controls and an easy-to-use interface, ideal for any skill level.
  • Connect all your gear with versatile analog inputs and outputs for seamless integration.
  • Enhance your audio with responsive 2-band EQ, giving you precise tone shaping.
See More Product Details
Temporarily On Backorder?Expected Availability: 04/2026
Free Shipping

See Options

1
Add to ListGet Sale Alert

Need help? Ask our experts.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Alto Professional TrueMix 500 Specifications

Mixer

Mixer

Jump to...

  • Number of Analog Input Channels

    4x (1 Mono / 3 Stereo)

  • Number of Mic Preamps

    1

  • Analog Output Channels

    1x Stereo Master Output
    1x Stereo Headphone Output
    1x Stereo Tape/Record Output

  • Mix Routing

    2x Stereo Main Mix per Main Mix Channel (LCR Main Mix Combines Stereo and Mono Main Mixes)

  • Faders & Level Adjustment

    5x Channel Knob
    3x Master Knob

  • Meters

    Main Meter: 1x 4-Segment LED

Signal Processing

Jump to...

  • Gain/Trim Range

    -Infinite to +10 dB

  • Input Polarity

    Fixed

  • Dynamic Processing

    No

  • EQ

    2-Band Shelving

  • EQ Parameters

    High: +/-15 dB (Shelving)
    Low: +/-15 dB (Shelving)

  • Graphic EQ

    No

  • Solo/Mute

    No

  • Built-In Effects

    No

Performance

Jump to...

  • Frequency Response

    20 Hz to 22 kHz +/-1 dB

  • Max Input Level

    XLR Mic Input: 74 dB (To Main Out)
    XLR Mic Input: 80 dB (To Phones Out)
    1/4" Line Input: 30 dB (To Main Out)

  • Headphone Output Power

    1/4": 160 mW into 32 Ohms

  • I/O Impedance

    XLR Mic Input: 3.9 Kilohms (Balanced)
    Input: > 10 Kilohms
    RCA Tape Output: 1 Kilohms (Unbalanced)
    Output: 120 Ohms

  • SNR

    > 110 dB (All Inputs)

  • THD+N

    0.005% (+4 dBu, at 1 kHz)

Connectivity

Jump to...

  • Analog Inputs

    1x XLR 3-Pin Balanced Mic Input
    4x 1/4" TRS Balanced Line Input (2 Stereo Pairs)
    1x 1/4" TRS Line Input
    2x RCA Coaxial Unbalanced 2-Track Input (1 Stereo Pair)

  • Analog Outputs

    2x 1/4" TRS Balanced Main Output (1 Stereo Pair, Post-Fader)
    2x RCA Coaxial Unbalanced Record/Tape Output (1 Stereo Pair, Post-Fader)

  • Phantom Power

    +48 V

  • Digital I/O

    No

  • MIDI I/O

    No

  • USB I/O

    1x USB-B (2-Track Record, Audio Playback)

  • USB I/O Capacity

    2x Input / 2x Output

  • Wireless

    No

Recording

Jump to...

  • Max Multitrack Recording

    2 Tracks

Compatibility

Jump to...

  • OS Compatibility

    Windows 10 or Later / macOS

Power

Jump to...

  • DC Input Power

    18 VDC at 500mA

Physical

Jump to...

  • Rack Mountable

    No

  • Dimensions

    6.3 x 2.6 x 7.6" (15.9 x 6.6 x 19.3cm) (Desk-Mounted)

  • Weight

    2 lbs (907.18g)

Other

Jump to...

  • UPC Code

    0816311012195

About Alto Professional TrueMix 500

The Alto Professional TrueMix 500 is a portable mixer with a built-in stereo USB audio interface that delivers all the essential features you need for home recording, livestreaming, podcasting, or performing. There are five analog inputs with high-headroom circuitry for minimal noise and clipping in your signal. The Mic Input Channel offers an XLR input that's great for connecting a dynamic mic. This channel also has a balanced 1/4" line input for connecting instruments and other line-level signals. There are also two Stereo Input Channels, each with dual balanced 1/4" TRS inputs. These inputs are perfect for your line level audio sources. All channels feature a two-band EQ with color coded knobs that make it easy to dial in your perfect sound when operating in low-light situations. Connecting the TrueMix 500 to your computer is also lightning fast, with plug and play connectivity on Windows and macOS. The TrueMix 500 is your perfect companion for no-nonsense audio mixing and recording on the go.

Alto Professional TrueMix 500 Features

  • USB I/O for audio playback and stereo recording
  • 1/4" Main, Tape, and Headphone outputs
  • Mic input channel with 18v phantom power and balanced line input
  • Two stereo input channels with balanced 1/4" TRS jacks
  • Two-band EQ on all channels
  • 2-track inputs w/ assignable routing: Main Mix or Headphone Out
  • Extra knob caps included in the box for added customization

Warranty Information

This product has a limited warranty of 12 months.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Effortlessly mix multiple audio sources with 5 channels for clear, dynamic sound.
  • Achieve studio-quality recordings directly to your computer via USB connectivity.
  • Take your sound anywhere; this portable analog mixer is perfect for on-the-go creators.
  • Enjoy intuitive controls and an easy-to-use interface, ideal for any skill level.
  • Connect all your gear with versatile analog inputs and outputs for seamless integration.
  • Enhance your audio with responsive 2-band EQ, giving you precise tone shaping.

What's in the box:

  • Alto Professional TrueMix 500 5-Channel Portable Analog Mixer with USB
  • Power Adapter
  • USB-B to USB-A Cable
  • User Manual
  • Alto Professional 1 Year Limited Warranty
