6 (4 Mono / 2 Stereo)
4
1x Stereo Master Output
4x Stereo Headphone Output
1x Stereo Tape/Record Output
1x Stereo Control Room/Monitor Output
1x Mono Aux Send Output
2x Stereo Main Mix per Main Mix Channel (LCR Main Mix Combines Stereo and Mono Main Mixes)
7x Channel Knob
1x Master Knob
3x FX Knob
Main Meter: 1x 8-Segment LED
XLR Mic Input: 0 dB to +50 dB
1/4" Line Input: 15 dBu to 35 dBu
1/4" Stereo Line Input: -20 dBu to -20 dBu
Fixed
No
2-Band Shelving
High: +/-15 dB at 12 kHz (Shelving)
Low: +/-15 dB at 80 Hz (Shelving)
No
No
Yes
AD/DA Conversion: 24-Bit
20 Hz to 22 kHz +/-1 dB
XLR Mic Input: 70 dB (To Main Out)
XLR Mic Input: 80 dB (To Phones Out)
1/4" Line Input: 60 dB (To Aux Send)
1/4": 160 mW into 32 Ohms
XLR Mic Input: 3.9 Kilohms (Balanced)
Input: > 10 Kilohms
1/4" Aux Output: 1 Kilohms (Unbalanced)
Output: 120 Ohms
> 110 dB (All Inputs)
0.005% (+4 dBu, at 1 kHz)
4x XLR 3-Pin Balanced Mic Input
4x 1/4" TRS Balanced Line Input (2 Stereo Pairs)
4x 1/4" TRS Hi-Z Input
2x 1/4" TRS FX Input (1 Stereo Pair)
2x RCA Coaxial Unbalanced 2-Track Input (1 Stereo Pair)
2x 1/4" TRS Balanced Main Output (1 Stereo Pair, Post-Fader)
2x 1/4" TRS Control Room Output (1 Stereo Pair, Post-Fader)
2x 1/4" TRS FX Output (1 Stereo Pair)
4x 1/4" TRS Stereo Headphone Output (Post-Fader)
2x RCA Unbalanced Record/Tape Output (1 Stereo Pair, Post-Fader)
+48 V, Selectable On/Off (Applied to All Inputs)
No
No
1x USB-B (2-Track Record, Audio Playback)
2x Input / 2x Output
Bluetooth 5.0
2 Tracks
Windows 10 or Later / macOS
No
18 VDC at 1.2 A (Included)
No
12 x 9.4 x 3.1" (30.5 x 23.8 x 7.9cm) (Desk-Mounted)
4.5 lbs (2kg)
0816311012218
Easy-to-Use Analog Audio Mixing with Built-in Effects from Alesis

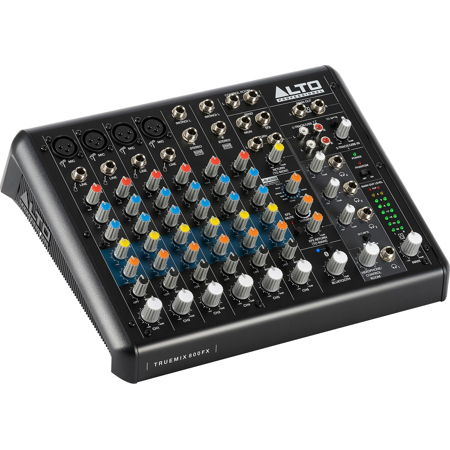

The Alto Professional TrueMix 800 FX is a portable audio mixer with built-in DSP effects that delivers all the essential features you need for home recording, livestreaming, podcasting, or performing. The TrueMix 800 FX features 16 effects including chorus, flange and an assortment of high-quality delays and reverbs. There's also a convenient Bluetooth channel for easily streaming from your personal devices. A unique feature to the TrueMix Series, the Bluetooth channel also supports feedback-free phone pairing by utilizing mix-minus technology. There are eight analog inputs with high-headroom circuitry for minimal noise and clipping in your signal. The four Mic Input Channels offer XLR inputs that are great for connecting dynamic mics or condenser mics with 48v phantom power.
These channels also have balanced 1/4" line inputs for connecting instruments and other line-level signals. There are also two Stereo Input Channels, each with dual balanced 1/4" TRS inputs. These inputs are perfect for your line level audio sources. All channels feature a two-band EQ with color coded knobs that make it easy to dial in your perfect sound while operating in low-light situations. There are even extra knob caps included so you can fully customize the look of your TrueMix 800 FX. Connecting the TrueMix 800 FX to your computer is also lightning fast, with plug and play connectivity on Windows and macOS. The TrueMix 800 FX is a feature-packed compact audio mixer that's perfect for using on-the-go.
Flexible Output Routing
Whether you're recording a podcast, livestreaming online, or making music at home, being able to hear yourself and easily route audio is essential. The TrueMix 800 FX features a variety of output and routing options to handle any scenario. There are four headphone outputs, each with their own volume control knob. If you need to send your audio signals to another destination like an external monitor or effects unit, each channel is equipped with a send knob so you can always dial in the perfect mix. For recording, the USB output sends a copy of the main outputs to your computer, or you can connect the 2-Track in/out to an external recorder which can also be sent directly to the headphones. The TrueMix 800 FX delivers everything you need to take full control of your audio routing in any situation.
