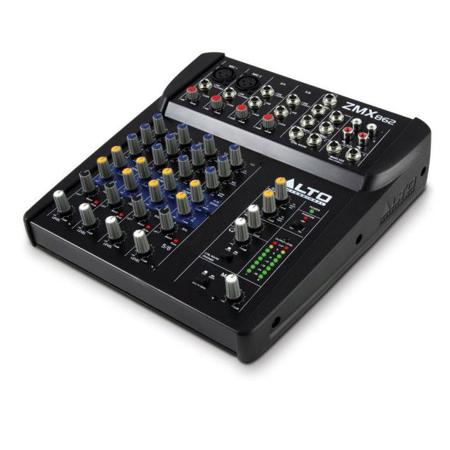

Alto Professional ZEPHYR Series ZMX862 6-Channel 2-Bus Compact Sound Reinforcement Mixer

SKU: ALZMX862X110

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Alto Professional ZMX862 Specifications

Input Channels: Mono Channels (Ch. 1-2)

Input Channels: Mono Channels (Ch. 1-2)

Jump to...
  • Microphone Input

    Electronically balanced, discrete input configuration

  • Frequency Response

    20 Hz to 22 kHz, +/-1 dB

  • Distortion (THD&N)

    <= 0.005% at +4 dBu, 1 kHz

  • Gain Range

    0 dB to 50 dB (Mic)
    15 dBu to 35 dBu

  • Maximum Voltage Gain

    70 dB Ch. Mic Input to Main Mix out & Tape out
    80 dB Ch. Mic input to Control room & Phones
    60 dB Ch. Mic input to Aux send

  • SNR (Signal to Noise Ratio)

    >= 110 dBu

  • Phantom power (Mic Pin 2/Pin 3, Pin 1)

    +48 V - with switch control

  • Line Input

    Electronically Balanced

Stereo Channels: (Ch. 3-6)

Jump to...
  • Line Input

    Electronically Balanced

  • SNR (Signal to Noise Ratio)

    >= 110 dBu

  • Frequency Response

    20 Hz to 22 kHz, +/-1 dB

  • Distortion (THD&N)

    <=0.005% at + 4 dBu, 1 kHz

  • Gain Range

    -20 dBu to +20 dBu, 60 dB Ch. Line to Main Mix out

  • Maximum Voltage Gain

    20 dB FX return to Main Mix out
    20 dB RCA Tape input to Main Mix out

Impedance

Jump to...
  • Microphone Input

    3.9 kOhms

  • All Other Inputs

    10 kOhms or Greater

  • Tape Out

    1 kOhms

  • All Other Outputs

    120 Ohms

Equalization

Jump to...
  • Mono Channels

    High +/- 15 dB at 12 kHz, Mid +/- 15 dB at 2.5 kHz, Low +/- 15 dB at 80 Hz

  • Stereo Channels

    High +/- 15 dB at 12 kHz, Mid +/- 15 dB at 2.5 kHz, Low +/- 15 dB at 80 Hz

Main Mix Section

Jump to...
  • Output level

    0 dBu Unbalanced, 1/4" jacks, Max out +22 dBu Unbalanced
    1/4" jacks noise (Bus Noise): <= -90 dB at 20 Hz - 22 kHz (channel & Main level at 0 dB, other at minimum, DSP mute)

General

Jump to...
  • Power supply

    18 V, 1500 mA

  • Rated Power Consumption

    18 W

  • Dimensions (WxLxH)

    202 x 250 x 58mm (7.95 x 9.84 x 2.28")

  • Weight

    3.75 lbs (1.70kg)

  • UPC Code

    0816311010160

About Alto Professional ZMX862

Professional-Grade Mixing With a Small Footprint
The ZMX862 is a 6-channel, 2-bus mixer with the right amount of inputs, outputs, routing and EQ for more intimate live performance reinforcement situations. Features two microphone inputs, each with Phantom Power, the ZMX862 also has a three-band EQ, two aux sends per-channel for external effects and monitoring and even two track inputs for things such as audio playback. The ZMX862 is a perfect, take-anywhere professional mixer.

Versatile Inputs and Outputs
The ZMX862 is a step up from our massively popular ZMX52 that adds more inputs and an extra band of EQ as well as a switch for phantom power. Not only can you plug dynamic, condenser and wireless microphones into the first two channels, you also get two stereo channel inputs for keyboards, drum machines and other instruments. Plus, you can easily plug in your MP3 player, CD player or audio from a DVD player into the CD/TAPE inputs. But, you also have two AUX sends that you can use to send streams of audio from your mixer to a digital effects unit, stage monitor or any number of destinations. Choose the ZMX862 as the audio central command for your live performances, home studio or video suite and be ready for any audio curveball.

High Headroom, Low Noise
Just because the ZMX862 is compact, portable and affordable doesn't mean you have to make sacrifices. This compact mixer brings the same standard of quality to your performances as our top-of-the-line models. All Alto Professional ZMX mixers are designed with high headroom and ultra low-noise, discrete mic preamps so you always get the full dynamic range of your mix every time. Pristine sound. No compromises.

Visualize Your Mix
We designed every ZMX mixer with your performance in mind. Sometimes venues are dark and it can be hard to see what you're working with. Alto Professional solves this problem by not only color coding each section of the mixer, but also by using brightly colored knobs so that you can easily find what you need to adjust before you ever lay a finger on the mixer. Our blue, red, yellow and white pots are instantly easy to identify in dim lighting. LED indicators for output level, peak and phantom power also assist in making sure that you have multiple visual cues that compliment everything you're hearing.

Alto Professional ZMX862 Features

  • 12 total inputs including XLR jacks w/ phantom power on ch. 1 & 2
  • Expanded channel count perfect for small groups or sub-mixes
  • High headroom circuitry offering extra dynamic range
  • Ultra-low-noise discrete mic preamps
  • 2 aux sends per channel for external effects and monitoring
  • 3-band EQ on each channel
  • Two stereo input channels with balanced TRS jacks
  • Aux inputs/outputs for external audio source integration
  • Switchable phantom power

What's in the box:

  • Alto Professional ZEPHYR Series ZMX862 6-Channel 2-Bus Compact Sound Reinforcement Mixer
  • Power Adapter
  • Quick Start Guide
  • Alto Professional 1 Year Limited Warranty
