Aurora Multimedia DXM-1616-G3 16x16 Digital Xtreme 4K UHD Matrix Switcher

SKU: AM1616G34KHD MFR: DXM-1616-G34K UHD
Earn VIP Reward Points

Key Features

  • Experience seamless 4K UHD video switching with this reliable matrix switcher.
  • Enjoy wide compatibility with various devices using this versatile video component.
  • Set up your video distribution easily with this user-friendly, autoswitching module.
  • Control your presentations effortlessly using this high-performance switcher processor.
  • Ensure low latency video transmission for critical viewing applications using this device.
  • This affordable video switcher supports up to 4 inputs and 4 outputs for flexibility.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$189.99

3 Year

$219.99

4 Year

$279.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Aurora Multimedia DXM-1616-G3 Specifications

  • Input Slots

    4

  • Output Slots

    4

  • RS-232 Baud Rate

    Max 115kbps

  • LAN Speed

    1 - 10/100

  • LAN Connectors

    8P8C RJ-45

  • RS-232 Connector

    DB-9 Female

  • Power Connector

    IEC

  • Housing

    Black Aluminum enclosure

  • Mounting

    19" Rack Mounting

  • Operation temperature

    0 to 40 deg. C / 32 to 104 deg. F

  • Storage temperature

    -20 to 60 deg. C / -4 to 140 deg. F

  • Relative humidity

    20-90% RH [no condensation]

  • Power supply

    90V-265V 50-60Hz 60W (no cards), 520 Watts Max

  • Rack Height

    6RU

  • Dimensions

    17.24 x 16.69 x 10.50" / 437.90 x 423.93 x 266.70mm

  • Weight

    36lbs / 16.33kg (Empty Card Cage)

About Aurora Multimedia DXM-1616-G3

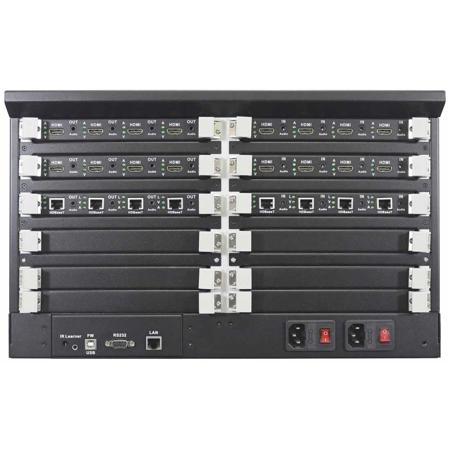

The 3rd Generation Digital Xtreme Series is a 4K UHD modular matrix switch, card based chassis/frame, with a full complement of multimedia input and output cards. I/O cards have 4 channels of Inputs or Outputs and are available with HDMI, HDBaseT and SDI interfaces. The DXM-G3 series accommodates every need, providing crystal clear digital clarity at its best and is designed for 'ease of service' with front-chassis access to the power supply and other system boards. Input and Output cards can be 'hot swapped', allowing full serviceability while powered.

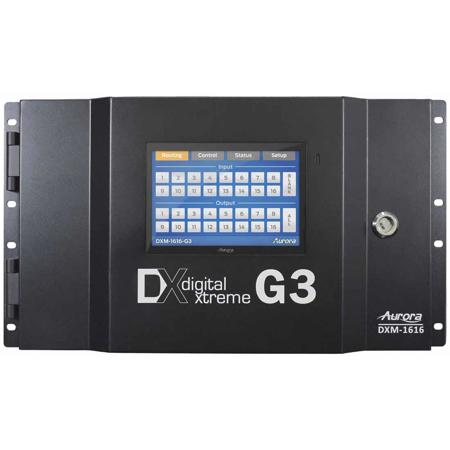

Control of the DXM-G3 and connected devices is available through an integrated 7" touch screen, web server, RS-232 and LAN. The system also provides advanced EDID, HDCP and data handling capabilities.

To stand out from the competition, the DXM-G3 series has audio break-away switching, audio de-embedding on all input and output channels, integrated PoH/Ethernet switch for HDBaseT and works with any web browser based device. The DXM-G3 is truly the most advanced modular matrix switch on the market today.

Aurora Multimedia DXM-1616-G3 Features

  • 20Gbps per Port Backplane
  • Advanced EDID Management
  • Advanced HDCP handling with multiple modes of operation to ensure proper usage based on application
  • Remote diagnostics
  • 7" Front Panel Touch Control
  • Integrated Web Server Control
  • Integrated Ethernet Switch for HDBaseT Cards
  • PoH for HDBaseT Ports
  • Units configurable 4-channels per card
  • Break-away Audio Switching
  • HDMI Input / Output Cards (Output Cards w/Audio De-embedding & Auto DVI Detect)
  • HDBaseT CAT Input / Output Cards (Powers remote Tx/Rx units & passes RS-232 and ethernet)
  • LAN Control
  • Control Expansion ports
  • RS-232 Control

Warranty Information

This product has a limited warranty of 36 months for parts and 36 months for labor.

Key Features

  • Experience seamless 4K UHD video switching with this reliable matrix switcher.
  • Enjoy wide compatibility with various devices using this versatile video component.
  • Set up your video distribution easily with this user-friendly, autoswitching module.
  • Control your presentations effortlessly using this high-performance switcher processor.
  • Ensure low latency video transmission for critical viewing applications using this device.
  • This affordable video switcher supports up to 4 inputs and 4 outputs for flexibility.

What's in the box:

  • Aurora Multimedia DXM-1616-G3 16x16 Digital Xtreme 4K UHD Matrix Switcher
  • IEC Power Cord
  • Aurora Multimedia 3 Year Parts and Labor Limited Warranty
