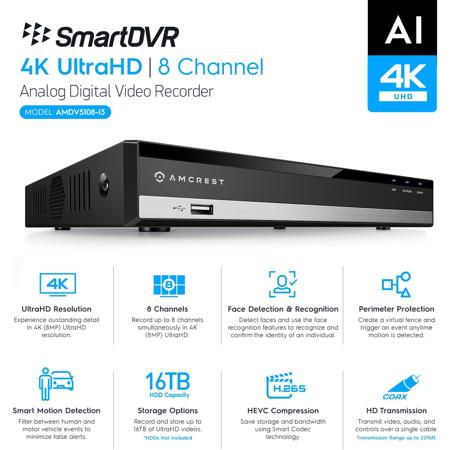

Amcrest AMDV5108 4K UHD 8-Channel H.265 AI DVR with 2TB HDD

SKU: AMDV51082TB

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2024-07-31T20:00:00

Rated 5 out of 5

Great DVR

This is my second unit over the past 10 years; works good and would buy again.

Jack T.

2024-07-15T20:00:00

Rated 5 out of 5

DVR

On 16 July 2024, I was helped by Carolyn G. She was very knowledgeable, very helpful, very patient. She assisted me to the fullest, and I am a very happy customer now. My name is Jean

Jean J.

2024-07-06T20:00:00

Rated 5 out of 5

Assistance with beeping noise

Lisa was excellent! She helped me turn off the beeping noise I had going on for months and she was also very patient and courteous with me. Thank you Lisa.

Alessandro N.

2024-07-06T20:00:00

Rated 4 out of 5

Good and reliable

Easy setup, works well with 4k/1080p/720p cameras.

Mikel S.

2024-05-30T20:00:00

Rated 5 out of 5

Most Helpful

Dominic S was most helpful in getting my digital video recorder up and running

Terry H.

2024-04-07T20:00:00

Rated 5 out of 5

DVR

Ashley V. the most professional and helpful member of amcrest!

Erik

2024-03-31T20:00:00

Rated 5 out of 5

Helpful in finding the right product Kevin G

We have used Amcrest for quite some time and our DVR finally was unable to be upgraded any longer so I was in search of replacement system. Kevin Gibson was great help in reviewing some products that would work together but still maintain our familiar abilities with products. Good work in explanations and reacting to my requests. Thanks Kevin! We got our new cameras and DVR quicker than expected and it is first class but plays to our familiarity with the brand. Amcrest has answered our call and we know Kevin G will be ready with the answers

Greg C.

2024-03-02T19:00:00

Rated 5 out of 5

Assistance with DVR recording problem.

The assistant (Lisa) was very knowledgeable, helpful, and persistent. Thank you!

Brenda L.

2023-12-13T19:00:00

Rated 2 out of 5

Playback recordings of events.

The main bad feature on your DVR is play back events of recordings. This is why I have a security camera system At home . It is extremely difficult to review a certain date and time because this feature is small at the bottom of the screen. Your 4K Analog Outdoor Security Camera AMC4KBC28-W I give very high praise to. Please sent me detailed steps on playback of events.

R F.

2023-10-20T20:00:00

Rated 5 out of 5

Great Service on Tech help

Lisa quickly corrected my software setup to get me back online with my surveillance cameras.

B H.

2023-10-03T20:00:00

Rated 5 out of 5

had some issues getting mobile

had some issues getting mobile app to work - called support and jason identified the issue was pro view had an update and there was a new app called proview 2 which solved the issue - so far I would say outstanding

michael f.

2023-09-27T20:00:00

Rated 5 out of 5

Fabulous

Well These guy are the best !!! They were very professional and helped hook up my Dvr !!!! Thank you Very much !!!

Darrell

2023-09-18T20:00:00

Rated 5 out of 5

Tech supportE

Great customer service by Lisa.

Eddie

2023-08-30T20:00:00

Rated 4 out of 5

support client

probleme de comprendre le system, Dennis du support a la clientel ma aider rapidement et il n y a pas eu d attente avant avoir de l aide. le systeme de support est bien fait sur le site et il a été courtois et attentif d un bout a l autre de laide.

charle

2023-06-24T20:00:00

Rated 5 out of 5

Tech Support

Kimberly A provided the best customer service. She worked through all the problems until we figured out the issues. So glad i decider to purchase amcrest cameras.

Joseph D.

2023-06-02T20:00:00

Rated 5 out of 5

customer service

brenda A, customer service was excellent. she made sure i understand everything and help me with what i needed help with thanks brenda

vannessa

2023-02-02T19:00:00

Rated 5 out of 5

Henry

thank you Henry for your patients and great help I am from the old school and your help was highly appreciated

RandyllE

2022-12-13T19:00:00

Rated 5 out of 5

Password reset

Very good device. Lisa D helped me reset my password after switching internet providers... zero proble.s with device for almost 10 years now.. she was very helpful since I bought it so long ago and only watch my screen at home.. or login on my phone when out of town... thankyou amcrest!

Ricky a.

2022-11-25T19:00:00

Rated 5 out of 5

Mobile App

Technician Lisa was very Knowledgeable and helpful!!

mulherin14

2021-11-14T19:00:00

Rated 5 out of 5

After 5 years of 24-7

I've owned Amcrest for 5 years before a power surge finally gave me problems. It made lines and glitches in the picture I replaced the cables going to the cameras and that helped but also replaced the DVR and reused the hard drive. Everything works perfect again! I still love the brand

Austin H.

2021-07-14T20:00:00

Rated 5 out of 5

Works perfectly

Works perfectly

Ronnie N.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Amcrest AMDV5108 Specifications

System
  • Main Processor

    Embedded Processor

  • Operating System

    Embedded Linux

Perimeter Protection

Jump to...
  • Performance

    2 Channels

Face Detection

Jump to...
  • Performance

    Max of 12 Face Pictures/Second Processing, 2 Channel Video Stream Face Recognition, Only Supported by Analog Cameras.

Face Recognition

Jump to...
  • Face Data Capacity

    Up to 10 face databases and 20,000 pictures.

  • Performance

    2 Channels

Smart Motion Detection

Jump to...
  • Performance

    8 Channels, secondary filtering for human and motor vehicle SMD Plus, reducing false alarms caused by leaves, rain and lighting condition change.

Video and Audio

Jump to...
  • Analog Camera Input

    8 channels, BNC: adaptive access by default; HDCVI, AHD, TVI and CVBS access can be configured.

  • Camera Input

    CVI: 4K, 6MP, 5MP, 4MP, 1080P@25/30 fps, 720P@50/60fps, 720P@25/30fps.
    TVI: 4K, 5MP, 4MP, 3MP, 1080P@25/30, 720P@25/30fps.
    AHD: 4K, 5MP, 4MP, 3MP, 1080P@25/30, 720P@25/30 fps.

  • Transmission Distance

    2296' (700m)@4K/4MP, 2624' (800m)@1080P, 3937' (1200m)@720P

  • IP Camera Input

    8+8 Channels, Each Channel Up to 8MP

  • Encoding Capacity

    All channel 4K(1 fps-7 fps); 6MP(1 fps-10 fps); 5MP(1 fps-12 fps); 4K-N, 4MP/3MP(1 fps-15 fps); 4M-N/1080P/720P/960H/D1/CIF (1 fps-25/30 fps);

  • Dual-Stream

    Supported (960H (1 fps-15 fps); D1/CIF(1 fps-25/30 fps)).

  • Video Framerate

    PAL: 1 fps-25 fps. NTSC: 1 fps-30 fps.

  • Video Bit Rate

    32 Kbps-6144 Kbps Per Channel

  • Audio In/Out

    1/1, RCA

  • Audio Bit Rate

    64 Kbps Per Channel

  • Bit Rate Type

    Video stream and composite stream.

  • Two-Way Talk

    Reuse Audio In/Out, RCA

  • Video Output

    1x HDMI ,1x VGA HDMI: 3840 x 2160, 1920 x 1080, 1280 x 1024, 1280 x 720 VGA: 1920 x 1080, 1280 x 1024, 1280 x 720

  • Multi-screen Display

    When IP extension mode not enabled: 1/4/8/9 When IP extension mode enabled: 1/4/8/9/16

Compression Standard

Jump to...
  • Compression

    AI Coding, H.265, H.264

  • Audio Compression

    G.711A/G.711u/PCM

Network

Jump to...
  • Interface

    1x RJ-45 Port (1000MB)

  • Network Protocol

    HTTP, HTTPS, TCP / IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, P2P

  • Mobile Phone Access

    iPhone, Android

  • Interoperability

    ONVIF 16.12, CGI Conformant

  • Management Software

    Amcrest Surveillance Pro (Windows/MAC) Amcrest View Pro app for IOS and Android Web Browser (Chrome, Firefox, Safari, Edge, IE9 or above, etc.)

Recording Playback

Jump to...
  • Record Mode

    Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop.

  • Recording Playback

    39817

  • Backup Method

    USB Device/Network

  • Playback Mode

    Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection)

Storage

Jump to...
  • Internal HDD

    Pre-Installed 2TB Hard Drive (Supports up to 16TB) for Continuous Recording at 8CH 4K @7fps

  • General Alarm

    Motion detection, Video Loss, tampering, and local alarm

  • Abnormality Alarm

    No disk, disk error, low space, offline, IP conflict, MAC conflict

  • Intelligent Alarm

    Face detection, face recognition, perimeter protection

  • Alarm Linkage

    Record, snapshot (panoramic), IPC external alarm output, access controller, voice prompt, buzzer, log, preset, email

  • Audio Input

    1x RCA (external), 8 BNC (coaxial)

  • Audio Output

    1x RCA

  • HDD Interface

    1x SATA Port, up to 16TB for a single HDD, the maximum HDD capacity varies with environment temperature

  • USB

    2x USB Ports (1 USB 2.0 , 1 USB 3.0)

  • HDMI

    1

  • VGA

    1

General

Jump to...
  • Power Supply

    DC12V, 2A

  • Power Consumption

    >10W

  • Operating Temperature

    14 Degree F to 131 Degree F (-10 Degree C to 55 Degree C)

  • Operating Humidity

    10% - 90%

Physical

Jump to...
  • Dimensions (W x D x H)

    10.24 x 9.35 x 1.87" (260 x 237.4 x 47.6mm)

  • Weight

    1.98 lbs (898g)

  • UPC Code

    755003974796

About Amcrest AMDV5108

FEATURED REVIEWS

Great DVR

By Jack T.

This is my second unit over the past 10 years; works good and would buy again.

DVR

By Jean J.

On 16 July 2024, I was helped by Carolyn G. She was very knowledgeable, very helpful, very patient. She assisted me to the fullest, and I am a very happy customer now. My name is Jean

4K Resolution / 8-Megapixel Quality Cameras (Cameras Not Included)
The DVR finally brings 4K (3840x2160p) resolution to a closed-circuit platform. Experience true High Definition video unlike any other system as your monitor brings everything to life, along with top-of-the-line megapixel quality. Whether you're recording, taking snapshots, or checking Motion Detection alerts, no detail will make it past you even if it tried.

8-Channel DVR with 2TB Hard Drive
Connect up to eight cameras (NOT Included) at once that you can control at the same time through the DVR's On-Screen Display! Don't forget to utilize Motion Detection and Scheduled Recordings to save hard drive space and record for even longer!'

AI Technology
The Amcrest AI DVR features Face Detection & Recognition, Perimeter Protection, Smart Motion Detection, and IVS Features (Tripwire: Trigger an event anytime a human or vehicle crosses the set tripwire line. Intrusion: Be alerted anytime a human or vehicle crosses the intrusion area)

Remote Viewing and Storage
When you bring your DVR online, you can tap into your system and check on all your cameras at any time from anywhere in the world! You can even have your cameras automatically send everything to the cloud or FTP server instead of saving on the DVR's hard drive. Now, you don't have to worry about transferring or losing your recordings and pictures!

Support for All Major Browsers Including Safari (Mac)
The HDCVI web interface is compatible with Internet Explorer, Firefox, and Chrome. And finally there is also support for Safari on the Mac OS! This web interface is where you can streamline and bring together all of your cameras for a simplistic, intuitive, and powerful interface. With local or remote access, you can configure, manage, and access your video streams in no time at all while being able to monitor all your feeds on the same screen at the same time.

Amcrest View App for iPhone or Android
Free yourself from having to sit at a computer to check on your cameras! Now, you can take them with you on the go by pulling up live feeds with the new Amcrest View app. It is free to download and available on the App Store and Play Store. The DVR comes with a QR-code for a quick and painless plug-and-play setup for remote viewing on your smartphone. Just scan it into the app and start viewing right away!

More Secure Than IP
Instead of having multiple devices independently accessible through the network, with HDCVI, you only have one DVR. This DVR will be the hub for all your cameras at once. It's not only easier to set-up, but easier to manage, troubleshoot, access and control. And because you only have one device online, as opposed to multiple, you can also feel more secure.

2,296 ft Coaxial Range and Weather Resistant Cameras (Cameras NOT Included)
You have the ability to connect your coaxial cables to your DVR and set your cameras up to 2,296 feet (700m) away. And every camera comes with an IP67 weather-resistance rating so they will continue to serve you gorgeous High Definition recordings and snapshots from incredible distances come rain or shine!

Backwards Compatible with 3 Signals Over 1 Cable
Still have old coaxial cables lining your walls and installed in your home? No problem! HDCVI works on the same coaxial cabling that traditional CCTV camera systems used. Never has it been this easy to upgrade to HD! In the past, you may have needed multiple cables for video, audio, and controlling PTZ positions on cameras. With HDCVI, all you need is coaxial cabling to do all three! Set-up multi-camera view, alarm alerts, data management, PTZ status, network configuration, and much more! With the DVR On-Screen Display, you're in control.

Real-Time, No Latency Viewing and Night Vision
HDCVI's closed-circuit design allows you to watch things happen as they happen. The signal is transmitted uncompressed which eliminates latency and allows for real-time, highly reliable video security without loss or delay. You may as well be standing right there! Not even the cover of dark can protect an intruder from the IR LEDs that will illuminate and capture their every move in detail.

Plug-and-Play Set-up with Intuitive On Screen Display
No confusing configuration necessary. With HDCVI, you just connect your coaxial cable, and enjoy your vibrant HD stream. At last, no more messy computer software downloading or configuration necessary. No need to worry about IP configuration, subnetting, or port forwarding for each and every single camera. Instead, configure one solitary device, the DVR, to gain access to all of your cameras at once! Enjoy viewing, controlling, and managing all your cameras on the DVR's built-in OSD. You can even use your own mouse!

USB for Data Transfers with HDMI or VGA Output
No longer do you don't have to delete old recordings to make room. Now you can pop in a USB drive or cable and backup your most important videos to an external storage device! And you can choose between standard and high definition output to any monitor or TV of your choice. Imagine showing off your cameras on the big screen!

Amcrest AMDV5108 Features

  • View and Record in Widescreen with Remote Viewing on iPhone, iPad, and Android devices (with included Amcrest View Pro app)
  • Pre-Installed 2TB Hard Drive (Supports up to 16TB) for Continuous Recording at 8CH 4K @7fps
  • Bandwidth up to 128Mbps
  • Enable two way talk using an external speaker and microphone
  • Face Detection (Only Supported by Analog Cameras) and Face Recognition available
  • AI DVR Features: Face Detection & Recognition, Perimeter Protection, Smart Motion Detection, and IVS Features (Tripwire: Trigger an event anytime a human or vehicle crosses the set tripwire line. Intrusion: Be alerted anytime a human or vehicle crosses the intrusion area)
  • Smart Motion Detection features Human and Vehicle Detection can only be activated if face detection or other AI rules are disabled in the system
  • Supports Long Distance Signal Transmission up to 2296'
  • Intelligent Video Footage Search and Playback
  • H.265 Compression Technology
  • This product may contain components which are not NDAA compliant
  • USB Backup Feature for Peace of Mind
  • Pentabrid DVR supports HDCVI, AHD, TVI, CVBS and Amcrest IP Cameras with Limited Compatibility to third-party cameras

Key Features

  • Pre-Installed 2TB Hard Drive (Supports up to 16TB) for Continuous Recording at 8CH 4K @7fps
  • Bandwidth up to 128Mbps
  • Enable two way talk using an external speaker and microphone
  • Face Detection (Only Supported by Analog Cameras) and Face Recognition available
  • Supports Long Distance Signal Transmission up to 2296'
  • Intelligent Video Footage Search and Playback

What's in the box:

  • Amcrest AMDV5108 4K UHD 8-Channel H.265 AI DVR
  • 2TB Hard Drive (Pre-Installed)
  • Amcrest 1 Year Limited Warranty
