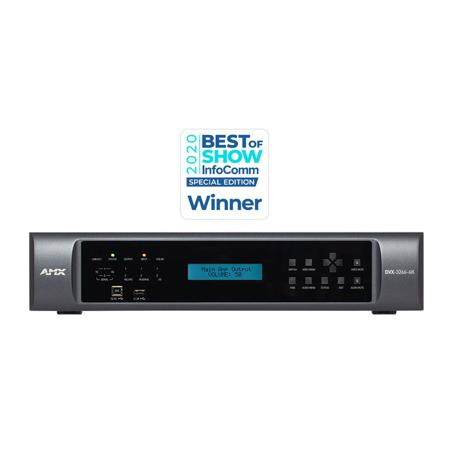

AMX DVX-3266-4K 8x4+2 4K60 HDMI DXLink All-In-One Presentation Switcher

The AMX Enova DVX-3266-4K 8x4+2 All-In-One Presentation Switcher is a unified audio, video, and control device that replaces the need for numerous individual components and eliminates the integration and reliability challenges that accompany them.

This compact 2U presentation switcher features class-leading video quality with support for 4K60 4:4:4 video, HDMI 2.0, HDCP 2.2, and HDR.

The DVX leverages HARMAN's legendary audio technology. A 120-watt Crown DriveCore amplifier, audio processing by BSS, and the latest dbx feedback suppression work together to ensure that users enjoy the highest quality audio experience.

The DVX-3266-4K is a simple to install, flexible solution, perfectly suited for dramatically simplifying AV control and distribution in medium to large conference rooms, boardrooms, and classrooms. Ease-of-use features include a mobile-friendly HTML5 web interface, automatic binding of DXLink endpoints on the isolated ICSLan network of the NX-Series Integrated Controller, and power on every DXLink input and output. Dante audio inputs and outputs complement analog audio inputs and outputs allowing the DVX to be used in a multitude of situations. The DVX's DXLink inputs and outputs are compatible with other AMX devices, such as the Enova DGX, as well as standard HDBaseT devices allowing the DVX to be integrated into enterprise-wide designs simply and cleanly.

The integrated NX processor and its secure operating system provide extensive security features including an isolated network we call ICSLan, 802.1X support, LDAP integration with unlimited user-defined groups, syslog support, and support for encrypted IP communication using FIPS 140-2 validated cryptographic modules.

The Enova DVX's all-in-one architecture delivers the lowest Total Cost of Ownership in the industry, thanks to ease of support, maintenance and configuration, as well as reduced hardware and cabling costs.

Common Applications
The DVX-3266-4K is ideal for dramatically simplifying AV control and distribution in medium to large-sized meeting spaces:

• College and university classrooms and meeting rooms.
• Corporate conference rooms and boardrooms.
• Healthcare facilities distributing high-resolution video within training rooms.

4K60 4:4:4 Support - HDMI 2.0 and HDCP 2.2 Support - HDR - Scaled Outputs
Supports the highest possible video quality over HDMI and category cable.

High Dynamic Range (HDR) and Deep Color Support
Support for HDR10 and 36-bit Deep Color.

Simple Configuration and Support
HTML5 Web Interface with built-in status and troubleshooting features alleviates the need for proprietary configuration software and internal network allows for automatic configuration of endpoints.

Dante Audio
8 input channels and 8 output channels of IP audio.

Crown DriveCore Amplifier
120W per channel stereo at 4/8 ohms 120W mono at 70/100 Volt.

USB 2.0
High-speed USB 2.0 data from devices like web cameras and storage devices are transmitted without the need for separate cables.

DXLink Twisted Pair Inputs and Outputs
Send and receive audio, video, bi-directional control, USB 2.0 and Ethernet to DXLink HDMI Receivers and Transmitters up to 100m away over one twisted pair cable.

All-In-One Device
Controller, matrix switcher, video scaler, audio signal processor, amplifier, plus twisted pair distribution - all in a space-saving 2U chassis.

Simplicity & Reliability
Replaces the need for numerous individual components and equipment, ensuring high reliability and saving on configuring and programming costs.

Low Total Cost of Ownership
With a consistent platform across a variety of sizes, it is easy to standardize on the DVX and reduce costs for hardware, training, support, troubleshooting and sparing.

Unrivaled Network Security
With Dual NIC to isolate AMX or third-party AV equipment from the primary network, 802.1X for protected network access, and LDAP integration with unlimited user-defined groups the Enova DVX provides rock-solid security.

Optimal Video Image Quality Every Time
Exclusive Smart Scale Technology automatically scales the image to the best resolution and video parameters for each display-even for displays of different types- without manual setup, eliminating the need for costly external scalers.

BSS Audio Processing
Includes an integrated digital signal processor with advanced capabilities like independent 10-band parametric EQ, independent input gain adjustments and variable compression, allow precision tuning to match unique source and room attributes.

dbx AFS2
Advanced Feedback Suppression

Audio Breakaway
Embedded audio from any HDMI or DXLink input can be de-embedded from the video, processed through the DSP, and switched to any analog, HDMI or DXLink output.

Audio Matrix Switching
Four independently switched and processed audio paths provide four unique volume, EQ, ducking and mixing configurations for perfectly tuned room audio as well as integration with audio/video conferencing, induction loop systems, voice re-enforcement speakers and audio recording devices.

Enhanced Microphone Processing
Independent 3-band parametric EQ, compression, gating, auto-ducking, and limiting on each microphone input ensures crystal clear communication.
