Aurora Multimedia DXB-8i 8-Button Ethernet Backlit Control Panel, White

SKU: AMDXB8IW MFR: DXB-8I-W
Earn VIP Reward Points

Key Features

  • Control your devices easily with this Aurora Multimedia 8-button control panel.
  • Customize the backlit buttons with red, green, and blue for easy identification.
  • Mount this space-saving Decora-style panel in any standard 1-gang wall box.
  • Enjoy reliable control with a durable design and a 3-year Aurora Multimedia warranty.
  • Easily integrate with your existing system using the RS-232 communication ports.
  • Operate devices safely with a low power consumption of only 1 watt maximum.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

1 Year

$49.99

2 Year

$84.99

3 Year

$139.00

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Aurora Multimedia DXB-8i Specifications

  • RS-232 Baud Rate

    Max 115kbps (Factory default is 9600)

  • Front Selections

    8 Backlit Buttons (Red, Green, Blue)

  • RS-232 Connector Port 1

    4 pin 3.81mm Euro

  • RS-232 Connector Port 2

    RS-232 Connector Port 23 pin 3.81mm Euro

  • Housing

    Plastic front with aluminum rear enclosure

  • Mounting

    Wall-mounting Decora 1 Gang

  • Power supply

    5v 300mA DC

  • Power consumption

    1 Watts [max]

  • Operation temperature

    0 to 40 deg. C (32 to 104 deg. F)

  • Dimensions (LxWxD)

    1.44 x 4.331 x 0.76" (3.66 x 11.00 x 1.93cm)

  • Weight

    0.38 lbs (0.17kg)

About Aurora Multimedia DXB-8i

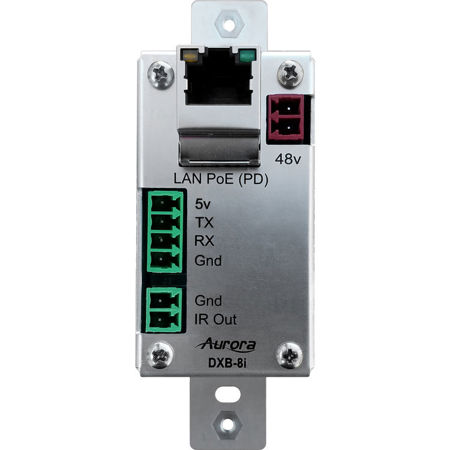

The DXB-8i is a low cost 8 button single gang button panel. Designed to work with just about any Ethernet, RS-232 or IR device on the market, the DXB-8i allows any Ethernet, RS-232 or IR string to be assigned to the press, release, toggle and hold of each button. The buttons can individually be lit red, green or blue so in dimly lit areas it can be seen. Available in Decora white or black, the DXB-8i is designed to match. Low cost, low power, simplicity and compatibility with just about any device on the market makes the DXB-8i the simple sweet solution of choice.

Aurora Multimedia DXB-8i Features

  • 8 Backlit Buttons (Red, Green, Blue)
  • Fits in Standard 1 Gang Decora Style Outlet
  • 1 LAN PoE
  • 1 RS-232 port, 1 IR port
  • Buttons Individually Programmable for RS-232, IR, TCP, & Telnet Commands
  • Programmable on Press, Release, Toggle, and Hold
  • Macro Functions and Interlocking Buttons
  • 9600 - 115k Baud Rate Selectable
  • Variety of Button Caps Available
  • Buttons Can Be Made to Order
  • Low Power
  • 48v DC Aux Power
  • Low Depth .98" for Floor & Table Boxes
  • Available in White or Black

Warranty Information

This product has a limited warranty of 36 months for parts and 36 months for labor.

Key Features

  • Control your devices easily with this Aurora Multimedia 8-button control panel.
  • Customize the backlit buttons with red, green, and blue for easy identification.
  • Mount this space-saving Decora-style panel in any standard 1-gang wall box.
  • Enjoy reliable control with a durable design and a 3-year Aurora Multimedia warranty.
  • Easily integrate with your existing system using the RS-232 communication ports.
  • Operate devices safely with a low power consumption of only 1 watt maximum.

What's in the box:

  • Aurora Multimedia DXB-8i 8-Button Ethernet Backlit Control Panel
  • Gang Decora Paintable White Wall Plate
  • Aurora Multimedia 3 Year Parts & Labor Limited Warranty
