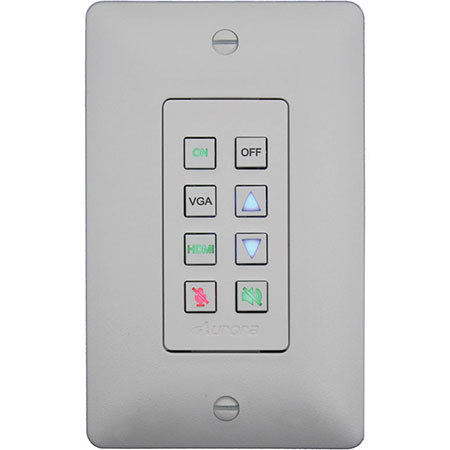

Aurora Multimedia DXB-8 1 Gang Decora 8-Button Wall Plate Controller, Low Depth 0.5", 2x RS-232 Ports, White

SKU: AMDXB8W MFR: DXB-8-W (WHITE)
Earn VIP Reward Points

Key Features

  • Easily control your devices with this Aurora Multimedia wall plate controller.
  • Customize your setup using the 8 programmable buttons on this wall unit.
  • Enjoy seamless integration with dual RS-232 ports for expanded control options.
  • Its low-profile design (0.5" depth) makes this wall plate an aesthetic fit.
  • Benefit from stable and reliable performance with a robust power supply.
  • Simplify installations using this Decora 1-Gang wall plate for easy setup.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$24.99

2 Year

$42.99

3 Year

$64.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Aurora Multimedia DXB-8 Specifications

  • Housing

    Plastic front with aluminum rear enclosure

  • RS-232C Interface

    RS-232 baud rate: Max 115 kbps (Factory default is 9600)
    Front selections: 8 backlit buttons (Red/Green/Blue)
    RS-232 connector port 1: 4-pin 3.81 mm Euro
    RS-232 connector port 2: 3-pin 3.81 mm Euro

  • Mounting

    Wall-mounting Decora 1 Gang

  • Power supply

    5v 300mA DC

  • Power consumption

    1 Watts (max)

  • Operation temperature

    0-40deg.C (32-104deg.F)

  • Dimensions (L x W x D)

    1.44 x 4.33 x 0.76" / 3.65 x 10.99 x 1.93cm

  • Weight

    0.38lbs / 0.17kg

About Aurora Multimedia DXB-8

Because modern technology demands sleek and efficient solutions, the Aurora Multimedia DXB-8 1 Gang Decora 8-Button Wall Plate Controller stands out as a high-tech, elegant, and stylish choice. This white, stainless steel controller is not just a visually appealing addition to your space, but also a highly functional device designed to seamlessly integrate with any RS-232 device.

The DXB-8 is more than just a single gang button panel; it's a comprehensive control system that allows any RS-232 string to be assigned to the press and release of each of its eight buttons. This feature even extends to repeat on hold, offering unparalleled convenience and control at your fingertips.

One of the standout features of this controller is its low depth of 0.5 inches, making it an ideal solution for installations in areas with limited space. Despite its compact size, it houses two RS-232 ports, further enhancing its compatibility and functionality.

In dimly lit areas, the DXB-8 shines with its individually lit buttons, which can glow in red, green, or blue. This not only adds a touch of style but also ensures the controller is easily visible and accessible, even in low light conditions.

In a world where low cost, low power, and simplicity are key, the Aurora Multimedia DXB-8 1 Gang Decora 8-Button Wall Plate Controller is the perfect blend of style and technology, making it the preferred choice for controlling your RS-232 devices.

Aurora Multimedia DXB-8 Features

  • 8 backlit buttons (Red, Green, Blue)
  • Fits in standard 1 gang Decora style outlet
  • 2 RS-232 ports
  • Buttons individually programmable for RS-232 command
  • 9600 - 115k Baud Rate Selectable
  • Designed to work seamlessly with DXW-2 Series
  • Customizable laser etched buttons
  • Daisy Chain up to 8 units for multi-gang button panels
  • Low Power
  • 5v DC powered
  • Low Depth .48" for Floor & Table Boxes

Warranty Information

This product has a limited warranty of 36 months for parts and 36 months for labor.

Key Features

  • Easily control your devices with this Aurora Multimedia wall plate controller.
  • Customize your setup using the 8 programmable buttons on this wall unit.
  • Enjoy seamless integration with dual RS-232 ports for expanded control options.
  • Its low-profile design (0.5" depth) makes this wall plate an aesthetic fit.
  • Benefit from stable and reliable performance with a robust power supply.
  • Simplify installations using this Decora 1-Gang wall plate for easy setup.

What's in the box:

  • Aurora Multimedia DXB-8 1 Gang Decora 8-Button Wall Plate Controller
  • Aurora Multimedia 3 Year Warranty
