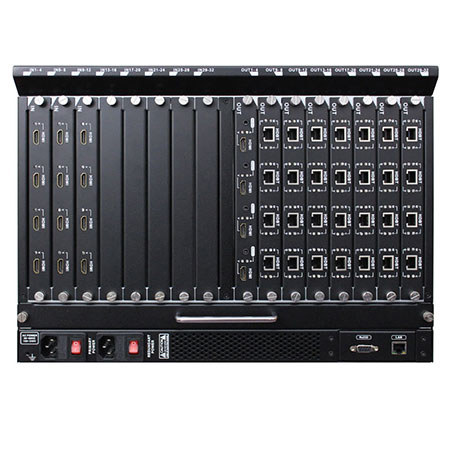

Aurora Multimedia 32x32 Digital Xtreme Matrix Switcher

The Aurora Multimedia 32 x 32 Digital xtreme Matrix Switcher supports a variety of optional 4-port input/output cards and transmits up to 1080p 60Hz video. It features auto EDID learning and management, HDCP compliance, and RS-232 signal routing to individual outputs or to all outputs simultaneously.

The switcher supports VGA, SDI, HDMI, HDBaseT, Fiber, Component, and Composite cards, enabling you to work with most all formats. The bandwidth per port in each optional card is 12.8 Mbps. You can route up to 600 ft by HDBaseT transmission and 6600 ft by fiber transmission. The RS-232 baud rate is a max of115 kbps.

Compatible Cards (Not Included)
• VGA input/output
• 3G/HD/SD-SDI input/output
• HDMI input/output (output cards support audio de-embedding and auto DVI detection)
• HDBaseT input/output
• Fiber input/output (up to 6600 ft)
• Component input
• Composite input
