Aurora Multimedia Presentation Scaler/Switcher Kit, Includes DXE-CAT-RX3C-A HDBaseT Receiver with Dual Relays, 2x35W Amplifier

SKU: AMDXP62K3 MFR: DXP-62K-3
Earn VIP Reward Points

Key Features

  • Experience seamless video switching with 4 HDMI & 2 VGA/YPbPr/Video inputs for ultimate flexibility.
  • Enjoy high-quality audio with the integrated 2x35W amplifier and multiple audio input options.
  • Extend your reach with HDBaseT output, transmitting video, RS-232, and IR signals up to 230 feet.
  • Achieve stunning visuals with support for up to 1920x1200 resolution at 60Hz for crisp images.
  • Simplify integration using the presentation scaler/switcher's comprehensive connector set.
  • Rely on robust performance with a wide temperature range and durable rack-mountable design.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$99.99

3 Year

$159.99

4 Year

$191.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Aurora Multimedia Scaler/Switcher Kit Specifications

  • Video: Max HDBT Distance

    230' / 70.10m

  • Video: Max Resolution

    1920x1200 at 60Hz

  • Video: Color Depth

    36bit

  • Video: Bandwidth

    HDMI: 1.65Gbps per color C-Video:150MHz YPbPr: 170MHz VGA: 375MHz

  • Audio Bandwidth

    20Hz - 20KHz

  • Connector: RS-232

    Max 115kbps

  • Connector: HDMI Inputs

    4

  • Connector: VGA/YPbPr/Video Inputs

    2

  • Connector: HDMI Outputs

    1

  • Connector: HDBaseT Outputs

    1 PoH (Video, RS-232, IR)

  • Connector: Audio Inputs

    4 Stereo 3 pin 3.81mm Euro / 1 Mic 3 pin 3.81mm Euro

  • Connector: Audio Outputs

    1 Stereo 3 pin 3.81mm Euro / 0db Gain

  • Connector: RS-232 Ports

    1

  • Connector: IR Input Ports

    1

  • Connector: IR Output Ports

    1

  • Connector: IR Frequency Range

    20KHz - 60KHz

  • HDBaseT Connector

    RJ-45 WE/SS 8P8C

  • RS-232 Connector

    Euro Style 3.81mm

  • IR Connector

    3.5mm TRS

  • HDMI Connector

    Type A 19 pin

  • Power Connector

    IEC Male

  • Housing

    Black Aluminum Enclosure

  • Mounting

    1 RU Rack Mounting (Hardware Included)

  • Power supply

    12V, 16Watt

  • Operation temperature

    0 to 40 deg. C / 32 to 104 deg. F

  • Dimensions (L x D x H)

    8.66 x 5.83 x 1.75" / 22.00 x 14.81 x 4.45cm

  • Weight

    1.477lbs / 0.67kg

About Aurora Multimedia Scaler/Switcher Kit

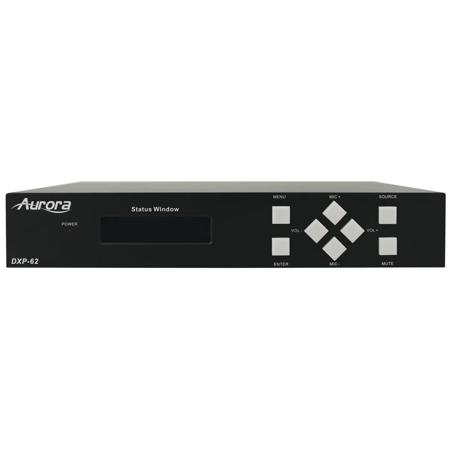

A comprehensive solution for your audio-visual needs, the DXP-62 Presentation Scaler/Switcher Kit is expertly designed for advanced multi-signal processing. This versatile device seamlessly handles HDMI, VGA, Component (YPbPr), and Composite inputs, scaling all to a high-definition resolution output of up to 1900x1200.

The DXP-62 is equipped to accept up to four HDMI inputs and two VGA/YPbPr/Composite inputs, scaling all to the integrated HDMI and HDBaseT simultaneous outputs. This ensures a high-quality, consistent display across all your devices.

One of the standout features of this presentation scaler/switcher kit is its One Room - One Cable functionality. This feature allows the HDBaseT output to pass PoH power to the included HDBaseT Receiver, as well as RS232 and IR control for the display. This simplifies setup and reduces cable clutter, making it an ideal choice for streamlined, efficient operations.

In addition to its video capabilities, the DXP-62 also boasts superior audio features. It comes with four external audio inputs, an additional MIC input with independent volume control, and a de-embedding line level stereo output. This ensures clear, high-quality audio to match your high-definition visuals.

With its auto sensing/switching video inputs, the DXP-62 is a versatile solution, perfect for various applications such as classrooms, conference rooms, and AV cart applications. To ensure easy installation, the kit also includes 1RU rack-mount hardware.

In essence, the DXP-62 Presentation Scaler/Switcher Kit is a robust, all-in-one solution for your audio-visual presentation needs, offering superior performance, versatility, and ease of use.

Aurora Multimedia Scaler/Switcher Kit Features

  • 4 HDMI Inputs
  • 2 VGA/YPbPr/Composite Inputs
  • 4 Analog Audio Stereo Inputs
  • 1 Microphone Input
  • 1 HDMI Output
  • 1 HDBaseT Output 230ft (70m) CAT 5e/6
  • Power over HDBaseT (PoH)
  • IR, and RS-232 over HDBaseT
  • Scales input up to 1080p
  • Auto Switching Feature
  • Front Panel Button Control
  • Front Panel LCD Display
  • OSD (On Screen Display)
  • RS-232 and IR Control (LAN/WEB control when ordered as DXP-62K-3)
  • USB for Firmware Updating

Warranty Information

This product has a limited warranty of 36 months for parts and 36 months for labor.

Key Features

  • Experience seamless video switching with 4 HDMI & 2 VGA/YPbPr/Video inputs for ultimate flexibility.
  • Enjoy high-quality audio with the integrated 2x35W amplifier and multiple audio input options.
  • Extend your reach with HDBaseT output, transmitting video, RS-232, and IR signals up to 230 feet.
  • Achieve stunning visuals with support for up to 1920x1200 resolution at 60Hz for crisp images.
  • Simplify integration using the presentation scaler/switcher's comprehensive connector set.
  • Rely on robust performance with a wide temperature range and durable rack-mountable design.

What's in the box:

  • Aurora Multimedia Presentation Scaler/Switcher
  • DXE-CAT-RX3C-A HDBaseT Receiver with Dual Relays
  • 2x35W Amplifier
  • Aurora Multimedia 3 Year Limited Warranty
