Aurora Multimedia 2-Input 330'/600' HDBaseT CAT Wall Plate Extender with Audio I/O & Web Control, VGA, HDMI, LAN, USB 2.0, White

SKU: AMDXW2EUS3CW MFR: DXW-2EU-S3C-W
Earn VIP Reward Points

Key Features

  • Extend your HDMI signal up to 600' with this HDBaseT CAT Wall Plate Extender for seamless integration.
  • Enjoy versatile connectivity with HDMI, VGA, LAN, and USB 2.0 ports on this multimedia wall plate.
  • This Aurora Multimedia extender supports 4K x 2K resolution, ensuring high-quality video transmission.
  • Control remote devices easily with IR pass-through, enhancing your home theater experience via wall plate.
  • Power over HDBaseT (PoH) simplifies installation, providing power and data through a single CAT cable.
  • The durable wall plate design fits standard 2-gang boxes, offering a clean, professional AV setup.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

1 Year

$249.00

2 Year

$409.00

3 Year

$649.00

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Aurora Multimedia Wall Plate Extender Specifications

  • Wall Plate: HDMI Compliance

    HDMI 3D

  • Wall Plate: HDCP Compliant

    Yes

  • Wall Plate: Distance

    330' / 100.59m over one CAT 5e/6/7 cable (1080p 60Hz 48bit),500' / 152.40m over one CAT 6 cable (1080p 60Hz 24bit),600' / 182.88m over one CAT 6a cable (1080p 60Hz 24bit)

  • Wall Plate: Max Resolution

    4K x 2K

  • Wall Plate: Color Depth

    48bit

  • Wall Plate: Digital Video Connectors

    1x HDMI in with 3.5mm TRS audio for DVI

  • Wall Plate: Analog Video Connectors

    1x VGA in with 3.5mm TRS audio for DVI,Can be used for YPbPr/S-Video/Composite with optional break out cables

  • Wall Plate: Data Connectors

    1x Ethernet port for network pass-through,(2) USB ports for pass-through and charging

  • Wall Plate: IR Control

    IR pass through for controlling remote devices

  • Wall Plate: Serial Control

    Capable of being controlled remotely through compatible receiver

  • Wall Plate: Power

    24VDC & PoH

  • Dimensions

    Wall Plate: 2 Gang 3.728 x 4.33 x 1.40" / 9.47 x 11.00 x 3.56cm
    Note: Wall box portion depth 1.04" / 2.64cm

  • Weight

    0.5lbs / 0.23kg

About Aurora Multimedia Wall Plate Extender

With the sleek and modern 2-Input 330'/600' HDBaseT CAT Wall Plate Extender, you can effortlessly extend the signal from your source device to your display device over long distances. This high-tech extender is equipped with VGA, HDMI, LAN, and USB 2.0 inputs, offering a versatile solution for connecting multiple devices to a single display.

The stylish wall plate extender not only enhances your room's aesthetics but also provides a seamless connection experience. It includes a DXW-2EU Wall Plate, available in a sophisticated black or elegant white, a DXE-CAT-RX3C receiver with Audio I/O and Web Control, and a DXE-USB-H1 USB 2.0 Transmitter and Power Supply.

This unit stands out with its ability to convert VGA (YPbPr, S-Video, Video) with audio to HDMI locally and transmit the signal up to 600ft, setting it apart from the competition. The sources can be selected either with the buttons on the wall plate or remotely via RS-232 commands sent through the matching receiver device.

The DXW-2EU also features a LAN port for network connection, eliminating the need for a separate wall plate. It also boasts two USB ports for powering USB devices and transmitting 480Mbps up to 230ft independently to a different location.

For added convenience, this wall plate extender comes with a web control feature, allowing you to manage and control your devices through a web browser. It can be remotely powered by the receiver device and has the ability to receive IR signals via the sensor window on the front of the unit, enabling remote control of IR controllable devices.

The DXW-2EU combines the functionality of a switcher, converter, and extender into one package, making it a cost-effective and simplified solution for your installation needs. It fits in a standard 2-gang outlet box with a decora style wall plate and has a low depth for floor and table boxes.

Experience the convenience and high performance of the 2-Input 330'/600' HDBaseT CAT Wall Plate Extender, designed to meet your audio and video needs.

Aurora Multimedia Wall Plate Extender Features

  • High-tech 2-input HDBaseT CAT Wall Plate Extender with 330'/600' range
  • Versatile connectivity options with VGA, HDMI, LAN, and USB 2.0 inputs
  • Includes web control feature for easy device management
  • Converts VGA with audio to HDMI locally and transmits signal up to 600ft
  • Features a LAN port and two USB ports for powering devices and transmitting data
  • Combines the functionality of a switcher, converter, and extender into one sleek package

Warranty Information

This product has a limited warranty of 36 months for parts and 36 months for labor.

Key Features

  • Extend your HDMI signal up to 600' with this HDBaseT CAT Wall Plate Extender for seamless integration.
  • Enjoy versatile connectivity with HDMI, VGA, LAN, and USB 2.0 ports on this multimedia wall plate.
  • This Aurora Multimedia extender supports 4K x 2K resolution, ensuring high-quality video transmission.
  • Control remote devices easily with IR pass-through, enhancing your home theater experience via wall plate.
  • Power over HDBaseT (PoH) simplifies installation, providing power and data through a single CAT cable.
  • The durable wall plate design fits standard 2-gang boxes, offering a clean, professional AV setup.

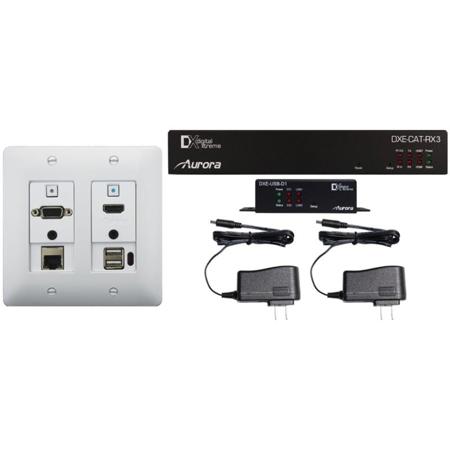

What's in the box:

  • Aurora Multimedia DXW-2EU Wall Plate
  • DXE-CAT-RX3C Receiver
  • DXE-USB-H1 Transmitter
  • Power Supply
  • Aurora Multimedia 3 Year Limited Warranty
