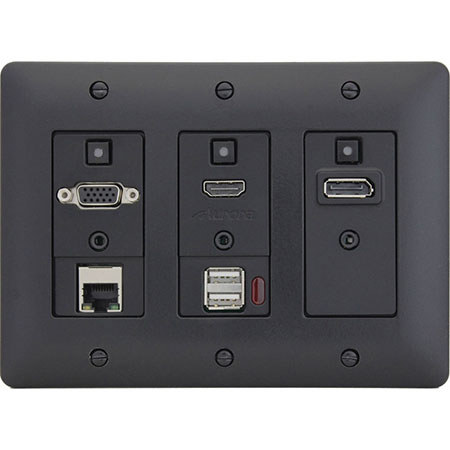

Aurora Multimedia DXW-3EUH 3-Gang Decora 3 Input HDBaseT Wall Plate Transmitter with Ethernet and USB, Display Port/HDMI/VGA/YPbPr, 330'/500'/600' CAT Extender, Black

SKU: AMDXW3EUHB MFR: DXW-3EUH-B
Earn VIP Reward Points

Key Features

  • Extend your display capabilities with this HDBaseT wall plate transmitter, up to 328 feet!
  • Enjoy seamless connectivity with Display Port, HDMI, VGA, and YPbPr inputs on this KVM switch.
  • This Aurora Multimedia transmitter supports up to 4K x 2K at 30 Hz for stunning video quality.
  • Easily integrate this 3-Gang Decora HDBaseT transmitter into your existing setup for convenience.
  • Experience reliable performance with this durable CAT extender, designed for long-term use.
  • Control your source selection effortlessly with the backlit buttons on this user-friendly KVM cable.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$209.99

3 Year

$299.99

4 Year

$359.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Aurora Multimedia DXW-3EUH Specifications

  • Video Distance

    328' (99.97m): 1080p 60 Hz 24 & 36-bit CAT 5e/6/6a/7
    328' (99.97m): 1080p 60 Hz 48-bit CAT 6a/7
    328' (99.97m): 4k x 2k 30 Hz CAT 6a/7
    230' (70.10m): 1080p 60 Hz 48-bit CAT 5e/6/6a/7
    230' (70.10m): 4k x 2k 30 Hz CAT 5e/6/6a/7
    500' (152.4m): 1080p 60 Hz 24-bit (Long Reach Mode) CAT 6
    600' (182.88m): 1080p 60 Hz 24-bit (Long Reach Mode) CAT 6A
    CAT 5e/6 will achieve 328' (99.97m) for pixel clock 225 MHz
    CAT 6a/7 will achieve 328' (99.97m) for pixel clock >225 MHz

  • USB 2.0 Distance

    150' (45.72m) using CAT 6

  • Max Resolution

    1080p at 60 Hz
    1920 x 1200 at 60 Hz
    4K x 2K at 30 Hz

  • Color Depth

    5e/6/6a/7: 24-bit
    5e/6: 36-bit
    5e/6/6a/7: 48-bit

  • RS-232

    300 - 115 kbps

  • IR Window

    38 kHz, 40' (12.19m) range

  • Controls

    1 x Left source selection backlit button

  • Front Selections

    2 Backlit Buttons (Red, Green, Blue)

  • LAN Connectors

    8P8C with 2 LED indicators (Only yellow LED is active)

  • HDBaseT Connector

    RJ-45 WE/SS 8P8C Right Angle

  • RS-232 Connector

    4 pin 3.81mm Euro

  • HDMI Connector

    Type A 19 pin

  • Power Connector

    2 pin 3.81mm Euro

  • Housing

    Plastic front with aluminum rear enclosure

  • Mounting

    Wall-mounting Decora 3 Gang

  • Compliance

    HDMI 3D, HDCP

  • Operating Temperature

    32 to 104 deg. F / 0 to 40 deg.C

  • Storage Temperature

    -4 to 140 deg. F / -20 to 60 deg.C

  • Relative Humidity

    20-90% RH, no condensation

  • Power Supply

    24 VDC

  • Max Power Consumption

    11 W (5 Watts for USB Ports)

  • Dimensions

    5.54 x 2.83 x 1.4" / 14.07 x 7.18 x 3.55cm (L x W x D)
    Width with Tabs: 4.3" / 10.92cm
    Wall Box Portion Depth: 1.04" / 2.64cm

  • Weight

    0.5lbs / 0.2267962kg

About Aurora Multimedia DXW-3EUH

Make your audio and video transmission seamless and professional with the Aurora Multimedia DXW-3EUH 3-Gang Decora 3 Input HDBaseT Wall Plate Transmitter. This durable and high-quality wall plate transmitter is designed to fit into a standard 3-gang outlet box, offering a stylish and efficient solution for integrating various signal types into a single HDMI output.

The DXW-3EUH excels in versatility, efficiently converting and extending VGA, YPbPr, S-Video, and composite video signals, along with their associated audio, to HDMI. This ensures that your media can be transmitted over distances of up to 600 feet to a compatible HDBaseT receiver (not included), without compromising signal integrity. This feature makes the DXW-3EUH an ideal choice for large venues, educational institutions, and professional settings where long-distance signal transmission is essential.

User-friendly in design, the DXW-3EUH allows for easy source selection either remotely via RS-232 commands through a corresponding receiver or locally using the front panel push-buttons. The built-in LAN port is a significant addition, enabling a network connection directly through the transmitter, eliminating the need for additional network wall plates.

The inclusion of two USB ports adds to the functionality of the DXW-3EUH. The top USB port serves as a host connection for a PC, while the lower port provides convenient device charging capabilities. These ports also support USB extension up to 220 feet, further enhancing the unit's utility in various professional setups.

Remote power capability is another user-friendly feature, allowing the unit to be powered by the receiver device, reducing cable clutter and simplifying installation. Additionally, the integrated 40-foot range IR receiver sensor facilitates IR control of the receiver end, streamlining the operation of your AV system.

In summary, the Aurora Multimedia DXW-3EUH is a sophisticated and user-friendly solution for those seeking a reliable and versatile method to transmit multiple audio and video signals over long distances. Its compatibility with a wide range of input sources and its ability to maintain high-quality signal transmission make it a top choice for professionals in the audiovisual field. Adorama offers this exceptional piece of equipment, ensuring that you have access to the best in electronics and AV technology.

Aurora Multimedia DXW-3EUH Features

  • 1 DisplayPort Input with Audio
  • 1 HDMI Input with Audio for DVI
  • 1 VGA with Audio Converted to HDMI
  • Programmable Buttons for Control of Displays
  • VGA can Accept YPbPr, S-Video & Video
  • 1 LAN Connector
  • HDBaseT 600' (182.88m) Extension
  • 2 USB 2.0 Ports
  • USB Extends Independently (220' / 67.05m)
  • 1 IR Receiver (40' / 12.19m Range)
  • Auto Sense, Buttons, RS-232 for Source Select
  • Buttons Backlight (Red, Green, Blue)
  • HDCP Compliant
  • Remote or Local Power
  • Fits in Standard 3 Gang Outlet Box
  • Low Depth for Floor & Table Boxes

Warranty Information

This product has a limited warranty of 36 months for parts and 36 months for labor.

Key Features

  • Extend your display capabilities with this HDBaseT wall plate transmitter, up to 328 feet!
  • Enjoy seamless connectivity with Display Port, HDMI, VGA, and YPbPr inputs on this KVM switch.
  • This Aurora Multimedia transmitter supports up to 4K x 2K at 30 Hz for stunning video quality.
  • Easily integrate this 3-Gang Decora HDBaseT transmitter into your existing setup for convenience.
  • Experience reliable performance with this durable CAT extender, designed for long-term use.
  • Control your source selection effortlessly with the backlit buttons on this user-friendly KVM cable.

What's in the box:

  • Aurora Multimedia DXW-3EUH 3-Gang Decora 3 Input HDBaseT Wall Plate Transmitter
  • 3 Gang Decora Paintable Black Wall Plate
  • User Manual
  • Aurora Multimedia 3 Year Limited Warranty
