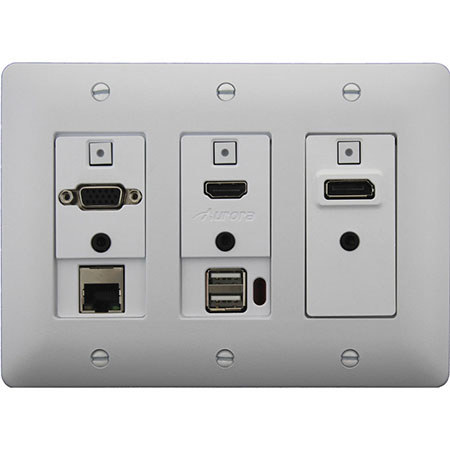

Aurora Multimedia DXW-3EU 3-Gang Decora 4 Input HDBaseT Wall Plate Transmitter with Ethernet and USB, White

SKU: AMDXW3EUW MFR: DXW-3EU-W
Earn VIP Reward Points

Key Features

  • Extend your connections with this HDBaseT wall plate transmitter, up to 328 feet!
  • Enjoy seamless 4K x 2K video at 30 Hz with this high-performance HDMI wall plate.
  • This wall plate transmitter supports USB 2.0, transferring data up to 480 Mb/s.
  • Easily control your source selections with the convenient backlit buttons provided.
  • Integrate effortlessly with a paintable white, 3-gang Decora HDBaseT transmitter.
  • Ensure reliable connectivity with the robust RJ-45 HDBaseT connector included.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$209.99

3 Year

$299.99

4 Year

$359.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Aurora Multimedia DXW-3EU Specifications

  • Video Distance

    328' (99.97m): 1080p 60 Hz 24 and 36-bit CAT 5e/6/6a/7
    328' (99.97m): 1080p 60 Hz 48-bit CAT 6a/7
    328' (99.97m): 4k x 2k 30 Hz CAT 6a/7
    230' (70.10m): 1080p 60 Hz 48-bit CAT 5e/6/6a/7
    230' (70.10m): 4k x 2k 30 Hz CAT 5e/6/6a/7
    500' (152.4m): 1080p 60 Hz 24-bit (Long Reach Mode) CAT 6
    600' (182.88m): 1080p 60 Hz 24-bit (Long Reach Mode) CAT 6A
    CAT 5e/6 will achieve 328' (99.97m) for pixel clock 225 MHz
    CAT 6a/7 will achieve 328' (99.97m) for pixel clock >225 MHz

  • USB 2.0

    Up to 480 Mb/s, 220' (67.05m)

  • Max Resolution

    1080p at 60 Hz
    1920 x 1200 at 60 Hz
    4K x 2K at 30 Hz

  • Color Depth

    5e/6/6a/7: 24-bit
    5e/6: 36-bit
    5e/6/6a/7: 48-bit

  • RS-232

    300 - 115 kbps

  • IR Window

    38 kHz, 40' (12.19m) range

  • Controls

    1 x Left source selection backlit button

  • Front Selections

    2 Backlit Buttons (Red, Green, Blue)

  • LAN Connectors

    8P8C with 2 LED indicators (Only yellow LED is active)

  • HDBaseT Connector

    RJ-45 WE/SS 8P8C Right Angle

  • RS-232 Connector

    4 pin 3.81mm Euro

  • HDMI Connector

    Type A 19 pin

  • Power Connector

    2 pin 3.81mm Euro

  • Housing

    Plastic front with aluminum rear enclosure

  • Mounting

    Wall-mounting Decora 3 Gang

  • Compliance

    HDMI 3D, HDCP

  • Operating Temperature

    32 to 104 deg. F / 0 to 40 deg.C

  • Storage Temperature

    -4 to 140 deg. F / -20 to 60 deg.C

  • Relative Humidity

    20-90% RH, no condensation

  • Power Supply

    24 VDC

  • Max Power Consumption

    11 W (5 Watts for USB Ports)

  • Dimensions

    5.54 x 2.83 x 1.4" / 14.07 x 7.18 x 3.55cm (L x W x D)
    Width with Tabs: 4.3" / 10.92cm
    Wall Box Portion Depth: 1.04" / 2.64cm

  • Weight

    0.5lbs / 0.2267962kg

About Aurora Multimedia DXW-3EU

Experience the seamless integration of audio and video transmission with the Aurora Multimedia DXW-3EU 3-Gang Decora 4 Input HDBaseT Wall Plate Transmitter. This sleek, modern, and high-tech device is more than just a wall plate. It's a multi-functional tool that acts as a switcher, converter, and extender, all while fitting perfectly into a standard 3-gang outlet box.

This innovative device is designed to convert VGA, YPbPr, S-Video, and Video signals with audio to HDMI locally. It then transmits these signals up to an impressive 600 feet away to a compatible receiver (sold separately). This makes it an ideal solution for transmitting high-quality audio and video signals over long distances.

The DXW-3EU is equipped with a LAN port, allowing for a network connection without the need for an additional wall plate. This feature enhances its usability and convenience in various settings. Additionally, it boasts two USB ports, capable of powering USB devices and transmitting data at a rate of 480 Mb/s up to 220 feet independently to a different location.

Control of this device is a breeze, with the ability to select sources remotely via RS-232 commands sent through the matching receiver device, or locally via the front panel push-buttons. The DXW-3EU also features a built-in 40-foot range IR receiver sensor, supporting IR control of the receiver end.

Crafted by Aurora Multimedia, a reputable brand known for producing high-quality audio and video equipment, this stylish white wall plate transmitter is a testament to their commitment to innovation and quality. Experience the difference with the DXW-3EU 3-Gang Decora 4 Input HDBaseT Wall Plate Transmitter.

Aurora Multimedia DXW-3EU Features

  • 1 DisplayPort Input with Audio
  • 1 HDMI Input with Audio for DVI
  • 1 VGA with Audio Converted to HDMI
  • Programmable Buttons for Control of Displays
  • VGA can Accept YPbPr, S-Video & Video
  • 1 LAN Connector
  • HDBaseT 600' (182.88m) Extension
  • 2 USB 2.0 Ports
  • USB Extends Independently (220' / 67.05m)
  • 1 IR Receiver (40' / 12.19m Range)
  • Auto Sense, Buttons, RS-232 for Source Select
  • Buttons Backlight (Red, Green, Blue)
  • HDCP Compliant
  • Remote or Local Power
  • Fits in Standard 3 Gang Outlet Box
  • Low Depth for Floor & Table Boxes

Warranty Information

This product has a limited warranty of 36 months for parts and 36 months for labor.

Key Features

  • Extend your connections with this HDBaseT wall plate transmitter, up to 328 feet!
  • Enjoy seamless 4K x 2K video at 30 Hz with this high-performance HDMI wall plate.
  • This wall plate transmitter supports USB 2.0, transferring data up to 480 Mb/s.
  • Easily control your source selections with the convenient backlit buttons provided.
  • Integrate effortlessly with a paintable white, 3-gang Decora HDBaseT transmitter.
  • Ensure reliable connectivity with the robust RJ-45 HDBaseT connector included.

What's in the box:

  • Aurora Multimedia DXW-3EU 3-Gang Decora 4 Input HDBaseT Wall Plate Transmitter
  • 3 Gang Decora Paintable White Wall Plate
  • User Manual
  • Aurora Multimedia 3 Year Limited Warranty
