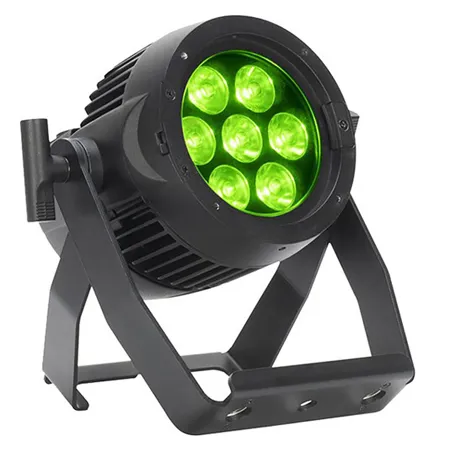

American DJ Encore LP18IP 7x 20W Heavy-Duty IP65 RGBL LED Par Light

SKU: ADJENLP7IP MFR: ENCORE LP7IP
Earn VIP Reward Points

Key Features

  • Achieve stunning visuals with 7x 20W RGBL LEDs, offering exceptional brightness and color accuracy.
  • Experience versatile lighting with a 10-degree beam angle, perfect for illuminating stages or architectural features.
  • Rely on its IP65-rated, heavy-duty construction, ensuring durability and weather resistance for outdoor events.
  • Easily control your lighting effects using DMX512 protocols, providing seamless integration into any setup.
  • Create the perfect ambiance with linear color temperature control from 2700K to 7000K for any occasion.
  • Enjoy flexible power linking, connecting up to 10 units at 120 VAC for expansive lighting designs.
See More Product Details
Temporarily On Backorder?Expected Availability: 05/2026Request assistance or get notified
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

American DJ Encore LP18IP Specifications

Light
  • Fixture Type

    PAR

  • Light Source

    7x Color LED - 20 W

  • Colors

    Blue, Green, Lime, Red

  • Photometrics

    10 Degree :
    7298 fc / 78,564 Lux at 3.3' (1m) (Full On)
    810 fc / 8729 Lux at 9.8' (3m) (Full On)
    291 fc / 3143 Lux at 16.4' (5m) (Full On)

  • Color Temperature

    Linear Color Temperature Control: 2700K to 7000K
    Preset Color Temperatures: 2700K, 3200K, 4000K, 5600K and 6500K

  • Lumen Output

    2500 Lumens

  • Beam Angle

    10 Degree
    25 Degree with Frost Filter

  • Shutter / Strobe

    Electronic

  • Iris

    No

  • Dimming

    Electronic, 0 to 100%

  • CRI

    84

  • CRI R9

    76.6

  • Rated Life

    50,000 hr

Performance

Jump to...
  • Operating Modes

    Automatic, Color Change, Color Dimmer, DMX, Primary/Secondary, Sound-Active

  • Gobos

    No

  • Refresh Rate

    900 Hz to 25 kHz (Adjustable)

Control

Jump to...
  • Control Protocols

    DMX512

  • DMX Channel Modes

    6 Modes: 4 / 7 / 8 / 10 / 13 / 16-Channel

  • Display / Controls

    LCD / 4-Button

  • Remote Control

    No

  • Mobile App Compatible

    No

Connectivity

Jump to...
  • Inputs/Outputs

    1x XLR 5-Pin DMX Input
    1x XLR 5-Pin DMX Output

  • Wireless

    No

  • AC Power Connector

    Input: 1x powerCON TRUE1
    Output: 1x powerCON TRUE1

  • Input Power

    100 to 240 VAC, 47 / 63 Hz

  • Power / Current Consumption

    120 VAC, 60 Hz: 103 W

  • Power Linking

    10 Units at 120 VAC
    20 Units at 220 VAC

Physical

Jump to...
  • Color

    Black

  • Environmental Resistance

    Dust/Water-Resistant (IP65)

  • Mounting

    Dual/Scissor Yoke

  • Duty Cycle

    No

  • Cooling

    Fan

  • Certifications

    cETLus

  • Dimensions (L x W x H)

    8.65 x 6.29 x 9.5" (220 x 160 x 242mm)

  • Weight

    7.5 lbs (3.4kg)

  • UPC Code

    818651029734

About American DJ Encore LP18IP

The ADJ Encore LP7IP is a versatile IP65 outdoor rated Par with 7 x 20-Watt (4-in-1: Red, Green, Blue & Lime) Quad LEDs. With a 10 Degree beam angle, users may produce wide washes with smooth color mixing from 64 built-in color macros utilizing red, green, blue and lime LEDs. Not only is this LED Par great for lighting indoor stages and venues, but with its IP65 rating, it's a great solution for temporary outdoor lighting of stages or events. The IP65 rating helps protect the fixture from rain, snow and dust.

The fixture's Quad LED engine offers flicker free operation for TV and film and linear white color temperature control from 2700K to 7000K.

The Encore LP7IP professional features include: 6 DMX modes, 5 operational modes, 6 selectable dimming modes, 4 selectable dimming curves, and a 4-Button DMX menu with digital display. The unit is equipped with outdoor Locking Power connectors and IP rated 5-pin DMX rubber covers and connectors. IP rated power linking and DMX cables are available, but standard 5-pin DMX cables may also be used for indoor applications.

The Encore LP7IP includes a removable 25-degree frost filter. There are several additional frost filter options (sold separately) that customize the beam angle. All filter snap into the front of the fixture.

American DJ Encore LP18IP Features

  • 10 or 25 Degree Beam Angle
  • Color Temperature range of 2700K - 7000K
  • 7x 20-Watt RGBL LEDs Source
  • IP65 Outdoor Rating
  • 2500 Lumens Output

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Achieve stunning visuals with 7x 20W RGBL LEDs, offering exceptional brightness and color accuracy.
  • Experience versatile lighting with a 10-degree beam angle, perfect for illuminating stages or architectural features.
  • Rely on its IP65-rated, heavy-duty construction, ensuring durability and weather resistance for outdoor events.
  • Easily control your lighting effects using DMX512 protocols, providing seamless integration into any setup.
  • Create the perfect ambiance with linear color temperature control from 2700K to 7000K for any occasion.
  • Enjoy flexible power linking, connecting up to 10 units at 120 VAC for expansive lighting designs.

What's in the box:

  • American DJ Encore LP18IP 7x 20W Heavy-Duty IP65 RGBL LED Par Light
  • Power Cord
  • Safety Cable
  • 25 Degree Frost Filter
  • American DJ 2 Year Limited Warranty
