Amcrest 1080P 2MP Indoor Security Mini IP Camera with 2.8mm Lens, Black

SKU: AMIP2MPH822B

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

2024-02-11T19:00:00

Rated 5 out of 5

Unable to connect camera after replacing old router.

After several failed attempts to reconnect my wired camera, I was unable to reset the camera settings since there was no reset button on the camera. I called Amcrest and spoke with Carolyn who was able to assist after leaving the unplugged to for several hours so that it may loose it's settings and then Carolyn was able to access the camera and reset it form me.

C.M

2019-11-20T19:00:00

Rated 5 out of 5

Tiny but great quality!

This camera is super small but is great quality. I was a little sceptical about the image quality of this pinhole camera until I hooked it up. Wow it is impressive at 1080p and has a very wide angle lense. I was also curious if it works as a POE camera because it's not advertised as one but it is not a POE camera. However, thats not a big deal because the included power adapter has a very long cord. The amcrest software is great because you can view this camera on your phone app anywhere in the world. You can set up to get notifications if it detects motion and set up to record to a NAS or record on a specific schedule so it's not recording while you are home. I own several amcrest cameras and continue to buy them given their high quality and great support. It was simple to set up just scan the barcode on the camera with the app and set a new password for it and that's it! I highly recommend this camera if you are looking for a small discreet camera that has good image quality.

Clay

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Amcrest Mini Camera Specifications

Camera
  • Color

    Black

  • Image Sensor

    1/2.7" 2Megapixel progressive CMOS

  • Effective Pixels

    1920(H) x 1080(V)

  • RAM

    256MB

  • ROM

    128MB

  • Scanning System

    Progressive

  • Electronic Shutter Speed

    Auto/Manual, 1/3-1/100000s

  • Minimum Illumination

    0.007Lux/F2.4( Color,1/3s,30IRE) 0.04Lux/F2.4( Color,1/30s,30IRE)
    0.004Lux/F2.4( B/W,1/3s,30IRE) 0.02Lux/F2.4( B/W,1/30s,30IRE).

  • S/N Ratio

    More than 50dB

  • Compression

    H.265/H.264/H.264B/H.264H/MJPEG(Sub Stream)

  • Streaming Capability

    3 Streams

  • Resolution

    1080P(1920 x1080)/960P(1280 x960)/720P(1280 x720)/ D1(704 x576/704 x480)/VGA(640 x480)/ CIF(352 x288/352 x240)

  • Frame Rate

    Main Stream: 1080p (1 - 25/30fps)
    Substream: D1(1 - 25/30fps
    Third Stream: 1080P(1 - 14/9fps)

  • Bit Rate Control

    CBR/VBR

  • Bit Rate

    H.265: 12K - 6400Kbps, H.264: 32K - 8192Kbps

  • Day/Night

    Auto(Electronic) / Color / B/W

  • BLC Mode

    BLC / HLC / WDR(120dB)

Network

Jump to...
  • Ethernet

    RJ-45 (10/100Base-T)

  • Protocol

    HTTP;HTTPS;TCP;ARP;RTSP;RTP;RTCP;UDP;SMTP;FTP;DHCP;DNS;DDNS;PPPoE;IPV4/V6;QoS;UPnP; NTP; Bonjour; IEEE 802.1X;Multicast;ICMP;IGMP;TLS

  • Interoperability

    ONVIF Profile S, API

  • Streaming Method

    Unicast / Multicast

  • Max. User Access

    10 Users / 20 Users

  • Edge Storage

    NAS, FTP, Local PC

  • Management Software

    Amcrest Surveillance Pro (Windows/MAC), Amcrest View Pro app for IOS and Android, AmcrestCloud.com Video Storage Subscription Service (Chrome, Edge, Firefox, Safari). Blue Iris Professional (Third Party) Web Browser (Pale Moon, Sea Monkey, Firefox 49.0, Internet Explorer, Chrome with Amcrest Extension, Safari).

Camera Feature

Jump to...
  • White Balance

    Auto/Natural/Street Lamp/Outdoor/Manual

  • Gain Control

    Auto/Manual

  • Noise Reduction

    3D DNR

  • Motion Detection

    Off / On (4 Zone, Rectangle)

  • Region of Interest

    Off / On (4 Zone)

  • Digital Zoom

    16x

  • Flip

    0 Degree /90 Degree /180 Degree /270 Degree

  • Mirror

    Off / On

  • Privacy Masking

    Off / On (4 Area, Rectangle)

  • Lens Type

    Fixed

  • Mount Type

    Board-in

  • Focal Length

    2.8mm

  • Max. Aperture

    F2.4

  • Angle of View

    H:105 Degree
    V:60 Degree

  • Focus Control

    Fixed

  • Dori Distance

    Lens: 2.8mm
    Detect: 207' (63m)
    Observe: 82' (25m)
    Recognize: 43' (13m)
    Identify: 20' (6m)

General

Jump to...
  • Power Supply

    DC12V, 1.0A

  • Power Consumption

    <1.5W

  • Operating Conditions

    -22 Degree F to +140 Degree F (-30 Degree C to +60 Degree C)
    Less than 95% RH

  • Storage Conditions

    -22 Degree F to +140 Degree F (-30 Degree C to +60 Degree C)
    Less than 95% RH

  • Casing

    Metal

Physical

Jump to...
  • Dimensions

    1.77 x 2.27 x 1.35" (4.3 x 6.8 x 3.4cm)

  • Weight

    3.6 oz (102g)

  • UPC Code

    850005687405

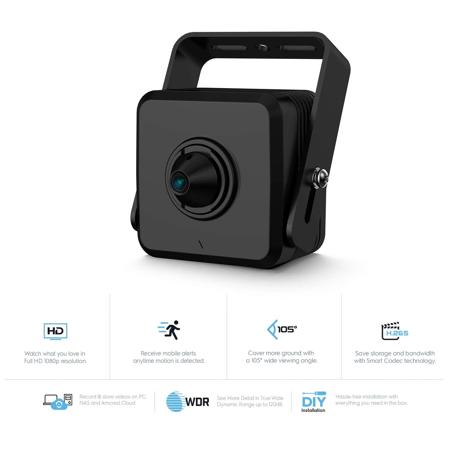

About Amcrest Mini Camera

High Performance, True HD
Experience magnificent full-HD 1080P video at 30fps with enhanced low-light capability. Extra-wide 105 Degree viewing angle as well as 16x digital zoom, allows you to cover more ground and keep more of what matters to you safe.

Smarter Security
Receive motion alert notifications, and live view footage via your smartphone with the Amcrest View app. Playback and record professionally on a PC using Amcrest Surveillance Pro for Windows and MAC or Blue Iris Professional. Works with Amcrest Cloud remote video storage, Amcrest NVRs, Synology and QNAP NAS, FTP, Pale Moon, SeaMonkey Browsers, IE, Firefox 49.0 and Chrome with Amcrest Web View Extension.

H.265 Compression
Advanced H.265 compression technology lets you save on storage space which allows for longer recording times. H.265 technology compresses your video without sacrificing any of the High Definition video quality. This item requires both an Ethernet connection and a power source to operate.

Secure Cloud Video Backup
The optional Amcrest Cloud remote video storage subscription service allows you to automatically store your videos off-site in a third-party location hosted and secured by Amazon AWS. This way if something happens to your local PC/NVR/NAS, the footage will be safely recorded in a secure off-site location and accessible to you through a web-based Flash interface for PC (Windows & MAC) (Chrome/Firefox/Edge) and Amcrest Cloud smartphone app.

Reliable & Secure
This Amcrest wired camera features a secure SSL/HTTPS connection, wireless AES/WPA2 encryption, FCC and UL camera certificate, and receives regular security firmware updates. At Amcrest, we want to ensure the safety of our customers, their loved ones, homes, and businesses and you'll receive a full 1-year US Warranty and Lifetime Support provided directly from Amcrest.

Amcrest Mini Camera Features

  • Amazing real-time true-HD 1080P (1920x1080p) @ 30fps
  • 2.8mm Lens with an Extra-Wide 105 Degree viewing angle
  • 16x intelligent digital zoom
  • Playback and record professionally on a PC using Amcrest Surveillance Pro for Windows and MAC or Blue Iris Professional
  • Also records via Amcrest Cloud remote video storage, Amcrest NVRs, Synology and QNAP NAS, and FTP
  • Works with Pale Moon (32bit) and SeaMonkey Browsers, IE, Firefox49.0 and Chrome with Amcrest Web View Extension
  • Live view, receive notifications from your smartphone with the Amcrest View Pro and AmcrestCloud apps for iOS and Android
  • Features a secure SSL/HTTPS connection, wireless AES/WPA2 encryption, FCC and UL camera certificate and UL compliant power supply

Key Features

  • Amazing real-time true-HD 1080P (1920x1080p) @ 30fps
  • 2.8mm Lens with an Extra-Wide 105 Degree viewing angle
  • 16x intelligent digital zoom
  • Also records via Amcrest Cloud remote video storage, Amcrest NVRs, Synology and QNAP NAS, and FTP

What's in the box:

  • Amcrest 1080P 2MP Indoor Security Mini IP Camera (Black)
  • 12V Power Supply Black
  • Cat5 Ethernet Cable
  • Mount Black
  • Quick Start Guide
  • Amcrest 1 Year Limited Warranty
