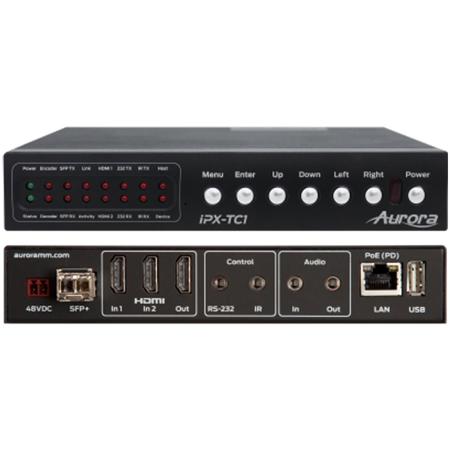

Aurora Multimedia 4K IP Audio/Video Distribution Transceiver with IPBaseT, SFP+ 10G Fiber Ethernet

The IPX-TC1 provides one of the most advanced IP Streaming solutions on the market utilizing Aurora's IPBaseT technology, which synergizes various IP/AV standards to work together as one. It is the industry's first 4K2K transceiver with zero compression and latency based on BlueRiver NT platform. Using a transmitter (encoder) and receiver (decoder), respectively, used to be the standard - until now. The IPX-TC1 can be set up as either one to make installation, inventory and troubleshooting easier. Another industry first is the option slot to add other IP capabilities, like ExtremeUSB (USB 2.0 over IP) or Dante audio, for a more complete, distributed system.

Audio, video, data and control can be sent securely to one or many units using off-the-shelf 10G Ethernet switches. When the IPX-TC1 is set up to be a transmitter, the 2 HDMI inputs become a source switch and the HDMI output becomes a potential loop out. When set up as a receiver, a user can select the local HDMI inputs or an IP source. Seamless switching of the sources further enhances the presentation. Regardless of how the IPX-TC1 is set up, the audio can be de-embedded at any location, break away, and/or be sent to or received from a Dante enabled device.

The USB 2.0 option is also flexible, working as a KVM and/or a high-speed data transfer (480Mbps) for memory sticks. Each IPX-TC1 USB feature can also be set as a host or a device. To keep the system friendly, a customizable OSD and web server are available to be programmed as required. For RJ-45 LAN devices, the 1G Ethernet port allows full bandwidth end-to-end over the IPX-TC1 10G fiber or copper port. Control of the IPX system. IPX control is available via their IPX Manager Windows software or the QXP-2-IPX.

Choice is important. That's why the IPX-TC1 has an SFP+ port that can use single or multi-mode fiber - making the IPX-TC1 the ultimate AV IP product on the market today.
