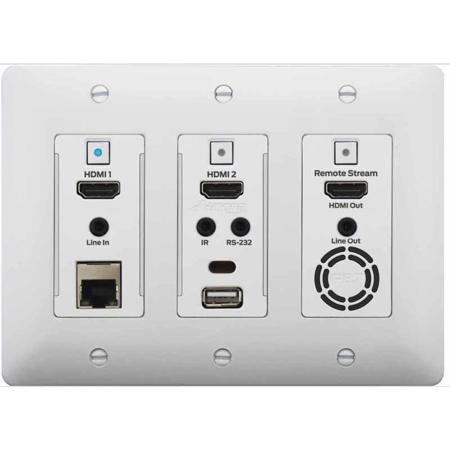

Aurora Multimedia IPX-TCW3 Series 4K IP Audio/Video Distribution Wall Plate with 10G Copper Ethernet, White

SKU: AMIPXTCW3CW MFR: IPX-TCW3-C-W
Earn VIP Reward Points

Key Features

  • Experience seamless 4K video distribution with this durable Aurora Multimedia wall plate solution.
  • Enjoy zero video latency, ensuring real-time performance for critical applications with this power supply.
  • Connect multiple devices using the 2 HDMI inputs and 1 output for versatile AV integration.
  • This compatible wall plate supports up to 32 audio channels, perfect for immersive sound setups.
  • Power your devices reliably with the 48V DC input, designed for continuous operation and safety.
  • Control your AV system via IR, keypad, or webserver for easy, customized management of your display.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

1 Year

$189.00

2 Year

$309.00

3 Year

$469.00

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Aurora Multimedia IPX-TCW3-C-W Specifications

  • Video Compression

    Zero

  • Video Latency

    Zero

  • HDMI Inputs

    2

  • HDMI Outputs

    1

  • Audio Analog

    Stereo Line In/Out (3.5mm TRS)

  • 10G Copper Ethernet

    RJ-45 330' with CAT 6A

  • LAN

    RJ-45 10/100/1000M PoE (PSE)

  • Video Bandwidth

    340MHz

  • Video support

    Up to 4K2K 4:2:0 at 60Hz

  • Audio support

    Up to 32 channels & Break-away Capable

  • RS-232

    Up to 115k Baud (3.5mm TRS)

  • IR

    Bi-Directional (3.5mm TRS)

  • USB Connector

    USB 2.0 Type A (Host or Device Software Selectable)

  • Expansion Port

    SO-DIMM for ExtermeUSB or Dante Options

  • Interface

    IR or Keypad via OSD, Webserver

  • Digital Video Connectors

    2x HDMI In, 1x HDMI Out, 1x Stereo Line In (3.5mm TRS), 1x Stereo Line Out (3.5mm TRS)

  • Data Connectors

    1x Ethernet port for network, 1x USB ports for charging & ExtremeUSB Option

  • IR Control

    20KHz-60KHz

  • Serial Control

    Up to 115K Baud

  • Power

    48V DC (2 pin Euro)

  • Dimensions

    3 Gang 5.54 x 2.83 x 1.404" / 14.07 x 7.19 x 3.57cm
    5.54 x 4.331 x 1.404" / 14.07 x 11.00 x 3.57cm (with Tabs)
    Note: Wall box portion depth 1.0" without option card and 2.25" with option card.

  • Weight

    2.5lbs / 1.13kg

About Aurora Multimedia IPX-TCW3-C-W

How does the IPX-TCW3 Series 4K IP Audio/Video Distribution Wall Plate with 10G Copper Ethernet redefine the standards of IP streaming solutions By leveraging Aurora's innovative IPBaseT technology, this product harmoniously integrates various IP/AV standards into one comprehensive system. As the industry's pioneering 4K2K IP wall plate, it offers zero compression and latency, thanks to its foundation on the robust BlueRiver NT platform.

Traditionally, a transmitter (encoder) and receiver (decoder) were separate entities. However, the IPX-TCW3 Series revolutionizes this concept by offering the flexibility to function as either, simplifying installation, inventory management, and troubleshooting.

This product also introduces an industry-first option slot for adding other IP capabilities. This includes ExtremeUSB (USB 2.0 over IP) or Dante audio, facilitating a more comprehensive, distributed system. With this feature, audio, video, data, and control can be securely transmitted to one or multiple IPX-TCW3 transceiver units using standard 10G Fiber or CAT Ethernet switches.

When configured as a transmitter, the two HDMI inputs function as a source switch, and the HDMI output can serve as a potential loop out. Conversely, when set up as a receiver, users can select between local HDMI inputs or an IP source. The seamless switching of sources further enhances the user experience.

Regardless of the setup, the audio can be de-embedded at any location, break away, or be sent to or received from a Dante-enabled device. The USB 2.0 option provides versatility, functioning as a KVM and/or a high-speed data transfer (480Mbps) for memory sticks.

Control of the IPX is accessible via the IPX Manager Windows software or the QXP-2-IPX. The IPX-TCW3-F model offers an SFP+ port that can use single or multi-mode fiber, while the IPX-TCW3-C model can use Category 5e/6/6A, making the IPX-TCW3 Series the ultimate AV IP product available today.

Aurora Multimedia IPX-TCW3-C-W Features

  • Configure as Transmitter (Encoder) or Receiver (Decoder)
  • 4K2K Over 10G CAT
  • Zero Compression & Zero Latency
  • 128x128 Capable with HDCP, Larger for Non-Encrypted Sources
  • Video wall Capability with Zero Latency
  • Seamless & Break-away Switching
  • 1G LAN PoE
  • 2 HDMI Inputs, 1 HDMI Output
  • Line In/Out Stereo
  • RS-232 Serial Port & IR (Bidirectional)
  • User Configurable OSD
  • Integrated Web Server for Custom Control Pages
  • ExtremeUSB - USB 2.0 480Mbps Option (Host or Device Configurable)
  • Dante IP Audio Option
  • Programmable Front Buttons
  • Auto Sense Switching
  • Standard 3 Gang Outlet Box
  • Low Depth for Floor & Table Boxes
  • Available in White or Black

Warranty Information

This product has a limited warranty of 36 months for parts and 36 months for labor.

Key Features

  • Experience seamless 4K video distribution with this durable Aurora Multimedia wall plate solution.
  • Enjoy zero video latency, ensuring real-time performance for critical applications with this power supply.
  • Connect multiple devices using the 2 HDMI inputs and 1 output for versatile AV integration.
  • This compatible wall plate supports up to 32 audio channels, perfect for immersive sound setups.
  • Power your devices reliably with the 48V DC input, designed for continuous operation and safety.
  • Control your AV system via IR, keypad, or webserver for easy, customized management of your display.

What's in the box:

  • Aurora Multimedia Aurora Multimedia IPX-TCW3 Series 4K IP Audio/Video Distribution Wall Plate with 10G Copper Ethernet
  • Aurora Multimedia 3 Year Limited Warranty
