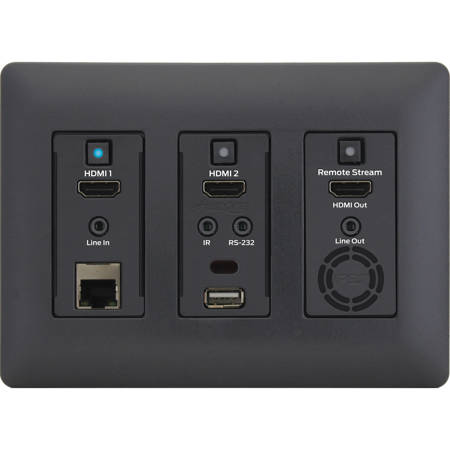

Aurora Multimedia IPX-TCW3 Series 4K IP Audio/Video Distribution Wall Plate with SFP+ 10G Fiber Ethernet

SKU: AMIPXTCW3FB MFR: IPX-TCW3-F-B
Earn VIP Reward Points

Key Features

  • Experience seamless 4K video with the IPX-TCW3 wall plate's zero video latency feature.
  • Enjoy versatile connectivity with HDMI, stereo line, and SFP+ 10G Fiber Ethernet ports.
  • Simplify installations using the integrated PoE (PSE) feature for power and networking.
  • Control your devices effortlessly via IR, keypad, or webserver interface for convenience.
  • Ensure reliable performance with durable Aurora Multimedia wall unit, backed by a 3-year warranty.
  • Customize your setup with expansion options like ExtremeUSB or Dante using the SO-DIMM port.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$209.00

2 Year

$349.00

3 Year

$549.00

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Aurora Multimedia IPX-TCW3-F-B Specifications

  • Video Compression

    Zero

  • Video Latency

    Zero

  • HDMI Inputs

    2

  • HDMI Outputs

    1

  • Audio Analog

    Stereo Line In/Out (3.5mm TRS)

  • 10G Fiber Ethernet

    SFP+ (Single Mode or Multi-Mode)

  • LAN

    RJ-45 10/100/1000M PoE (PSE)

  • Video Bandwidth

    340MHz

  • Video support

    Up to 4K2K 4:2:0 at 60Hz

  • Audio support

    Up to 32 channels & Break-away Capable

  • RS-232

    Up to 115k Baud (3.5mm TRS)

  • IR

    Bi-Directional (3.5mm TRS)

  • USB Connector

    USB 2.0 Type A (Host or Device Software Selectable)

  • Expansion Port

    SO-DIMM for ExtermeUSB or Dante Options

  • Interface

    IR or Keypad via OSD, Webserver

  • Digital Video Connectors

    2x HDMI In, 1x HDMI Out, 1x Stereo Line In (3.5mm TRS), 1x Stereo Line Out (3.5mm TRS)

  • Data Connectors

    1x Ethernet port for network, 1x USB ports for charging & ExtremeUSB Option

  • IR Control

    20KHz-60KHz

  • Serial Control

    Up to 115K Baud

  • Power

    48V DC (2 pin Euro)

  • Dimensions

    3 Gang 5.54 x 2.83 x 1.404" / 14.07 x 7.19 x 3.57cm
    5.54 x 4.331 x 1.404" / 14.07 x 11.00 x 3.57cm (with Tabs)
    Note: Wall box portion depth 1.0" without option card and 2.25" with option card.

  • Weight

    2.5lbs / 1.13kg

About Aurora Multimedia IPX-TCW3-F-B

Utilizing Aurora's IPBaseT technology, which combines various IP/AV standards to work together as one, the IPX-TCW3 Series provides one of the most advanced IP Streaming solutions on the market. It is the industry's first 4K2K IP wall plate with zero compression and latency based on BlueRiver NT platform. Using a transmitter (encoder) and receiver (decoder), respectively, used to be the standard - until now. The IPX-TCW3 Series can be set up as either one to make installation, inventory and troubleshooting easier.

Another industry first is the option slot to add other IP capabilities, like ExtremeUSB (USB 2.0 over IP) or Dante audio, for a more complete, distributed system. Audio, video, data and control can be sent securely to one or many IPX-TCW3 transceiver units using off-the-shelf 10G Fiber or CAT Ethernet switches. When the IPX-TCW3 is set up to be a transmitter, the 2 HDMI inputs become a source switch and the HDMI output becomes a potential loop out. When set up as a receiver, a user can select the local HDMI inputs or an IP source.

Seamless switching of the sources further enhances the presentation. Regardless of how the IPX-TCW3 is set up, the audio can be de-embedded at any location, break away, and/or be sent to or received from a Dante enabled device. The USB 2.0 option is also flexible, working as a KVM and/or a high-speed data transfer (480Mbps) for memory sticks. IPX control is available via their IPX Manager Windows software or the QXP-2-IPX. Choice is important. That's why the IPX-TCW3-F has an SFP+ port that can use single or multi-mode fiber and the IPX-TCW3-C can use Category 5e/6/6A - making the IPX-TCW3-F the ultimate AV IP product on the market today.

Aurora Multimedia IPX-TCW3-F-B Features

  • Configure as Transmitter (Encoder) or Receiver (Decoder)
  • 4K2K Over 10G Fiber
  • Zero Compression & Zero Latency
  • 128x128 Capable with HDCP, Larger for Non-Encrypted Sources
  • Video wall Capability with Zero Latency
  • Seamless & Break-away Switching
  • SFP+ for Multi/Single Mode Fiber
  • 1G LAN PoE
  • 2 HDMI Inputs, 1 HDMI Output
  • Line In/Out Stereo
  • RS-232 Serial Port & IR (Bidirectional)
  • User Configurable OSD
  • Integrated Web Server for Custom Control Pages
  • ExtremeUSB - USB 2.0 480Mbps Option (Host or Device Configurable)
  • Dante IP Audio Option
  • Programmable Front Buttons
  • Auto Sense Switching
  • Standard 3 Gang Outlet Box
  • Low Depth for Floor & Table Boxes
  • Available in White or Black

Warranty Information

This product has a limited warranty of 36 months for parts and 36 months for labor.

Key Features

  • Experience seamless 4K video with the IPX-TCW3 wall plate's zero video latency feature.
  • Enjoy versatile connectivity with HDMI, stereo line, and SFP+ 10G Fiber Ethernet ports.
  • Simplify installations using the integrated PoE (PSE) feature for power and networking.
  • Control your devices effortlessly via IR, keypad, or webserver interface for convenience.
  • Ensure reliable performance with durable Aurora Multimedia wall unit, backed by a 3-year warranty.
  • Customize your setup with expansion options like ExtremeUSB or Dante using the SO-DIMM port.

What's in the box:

  • Aurora Multimedia IPX-TCW3 Series 4K IP Audio/Video Distribution Wall Plate with SFP+ 10G Fiber Ethernet
  • Aurora Multimedia 3 Year Limited Warranty
