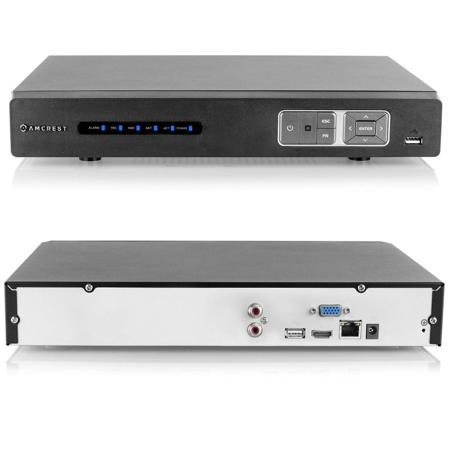

Amcrest NV1104 4-Channel 1080p NVR (No HDD), Supports 4x2.1MP IP Cameras, H.264, MJPEG

SKU: AMNV1104

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Sung C : is this one for Amcrest 1080p ip pan ,tilt camera?

Reviews about this item

Review Summary

2018-03-08T19:00:00

Rated 5 out of 5

happy customer

i have almost 20 camera from amcrest. support is excellent

santosh

2018-03-01T19:00:00

Rated 5 out of 5

Excellent

Very happy with this.working fine.

santosh

2017-02-20T19:00:00

Rated 4 out of 5

Easy to set up

Easy to set up

Matt M.

2017-02-11T19:00:00

Rated 5 out of 5

Excellent starter NVR

I gave this 5 stars because of its simplicity and reliability/price. I installed a nice Hitachi 4TB drive in this and connected up 2 outdoor camera and one indoor (tilt/pan) camera in the Garage. Most of what makes this a reliable stable NVR is making your cameras & the NVR have static addresses in your router. (one or both out door cameras would drop out every 2 or 3 days until I did this) The recordings look excellent. Very satisfied, but it does take some tinkering to get everything to work well enough to get to your mobile devices.

Netholio

2017-01-27T19:00:00

Rated 3 out of 5

Support on this item less than acceptable

I purchased the NV1104 along with three cameras. The cameras were installed and work fine and were present on my IPhone. I then started to install the NV1104 and couldn't get it to accept a password so it could be set up. Called Tech support and after waiting for quite a while finally was able to speak to a tech. He tried for almost an hour to get passed the password problem and decided that the unit was defective and I would have to send an Email the get an RMA. I sent the Email the same day and after three days did not receive a reply. I sent a second Email and waited another three days and still no reply. I then spent about an hour trying every combination of controls on the screen and finally was able to reset the password and got the unit working. About two days later I got an Email from tech support wanting to know if my problem had been solved. I told them that I had been able to get it going on my own and would let them know if I had any more problems. During the next few days I went through the manual again and began learning the unit. There were four things I couldn't get it to do so I sent another Email to tech support with a short list of questions. It's now been six days and haven't received an answer. I think the solution now would be to pack up the entire system and return it for a refund.

Dick D.

2016-08-12T20:00:00

Rated 5 out of 5

Camera,NVR

I have four cameras and NVR I am very pleased with their product.

Jack F.

2016-04-17T20:00:00

Rated 5 out of 5

Amcrest NVR NV1104-4 and Amcrest 1080P Wi-Fi Bullet 1P2M-842W

I installed and set up the 1080P Bullet camera in about 20 minutes. I set the NVR NV1104-4 up with a 500GB hard drive. The set up process was flawless and I had the system up and recording in about 1 hour. It is a quick and easy process. Some networking knowledge is helpful, but most of what you need to know is in the manual.

Donald S.

Amcrest NV1104 Specifications

  • Main Processor

    Dual-Core Embedded Processor

  • Operating System

    Embedded LINUX

  • IP Camera Input

    4 Channel

  • Two-way Talk

    1 Channel Input, 1 Channel Output, RCA

  • Interface

    1 HDMI, 1 VGA

  • Display Resolution

    1920x1080, 1280x1024, 1280x720, 1024x728

  • Display Split

    1/4

  • OSD

    Camera title, time, video loss, camera lock, Motion detection, Recording

  • Video/Audio Compression

    H.264/MJPEG

  • Resolution

    1080p(1920x1080)/720p(1280x720)/D1(704x576/704x480) & etc.

  • Record Rate

    Max 56Mbps

  • Bit Rate

    48-8192kbps

  • Record Mode

    Manual, Schedule(Regular (continuous), MD), Stop

  • Record interval

    1-120min (default: 60min), Pre-record: 1-30sec, Post record: 10-300sec

  • Trigger events

    Recording, PTZ, Tour, Alarm Out, Video Push, Email, FTP, Snapshot, Buzzer & screen tips

  • Video Detection

    Motion Detection, MD Zones: 396(22x18), Video loss and camera blank

  • Sync Playback

    1/4

  • Search mode

    Time/Date, MD & Exact search (accurate to sec), Smart search

  • Playback functions

    Play, Pause, Stop, Rewind, Fast Play, Slow Play, Next file, Previous file, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom

  • Backup mode

    USB Device/Internal SATA burner/Network

  • Ethernet

    RJ-45 Port (10/100Mbps)

  • Network functions

    HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMPT, NTP, DHCP, DNS, PPPOE, DDNS, IP Filter, FTP, IP Filter, SNMP, P2P

  • Max User Access

    128 Users

  • Smart phone

    iPhone, iPad, Android

  • Internal HDD

    1 SATA port, Up to 4TB

  • USB Interface

    2 Ports (1 Rear), USB2.0

  • Power supply

    DC12V/2A

  • Power consumption

    10W (without HDD)

  • Working Environment

    -10 to 50 deg. C / 14 to 122 deg. F, 10-90% RH, 86-106kpa

  • Dimensions (W x D x H)

    325 x 255 x 55mm / 12.80 x 10.04 x 2.17", Mini 1U

  • Weight

    1.25kg / 2.76lbs (without HDD)

  • UPC Code

    854509005901

About Amcrest NV1104

FEATURED REVIEWS

Amcrest NVR NV1104-4 and Amcrest 1080P Wi-Fi Bullet 1P2M-842W

By Donald S.

I installed and set up the 1080P Bullet camera in about 20 minutes. I set the NVR NV1104-4 up with a 500GB hard drive. The set up process was flawless and I had the system up and recording in about 1 hour. It is a quick and easy process. Some networking knowledge is helpful, but most of what you need to know is in the manual.

Excellent

By santosh

Very happy with this.working fine.

Amcrest HD NVR technology transmits up to 1080p video over Ethernet, allowing for long-distance and cost-effective HD video transmission. The signal is transmitted at a maximum throughput of 54Mbps which eliminates latency and allows for real-time, highly reliable video security without loss or delay. The cameras connect directly to the NVR providing a painless, non-complex plug-and-play setup process and can be installed up to 300ft away. In addition, the HD NVR is smartphone compatible (iPhone, Android) as well as viewable over the internet using standard web-browsers.

• Can support up to 8 x 720p (1MP) IP cameras OR 4 x 1080p (2.1MP) IP cameras simultaneously
• Can record and display in up to 1920x1080p resolution 30 frames per second
• Supports up to 4TB HDD (hard drive not included)
• Easy QR code smartphone access with Amcrest View
• Web access, VGA & HDMI output
• USB backup and transfer
• Can connect to cameras up to 300ft away
• Compatible with 480p, 720p, 960p, 1080p and 5MP IP cameras
• Fully compatible with Amcrest IP cameras and has limited compatibility with Foscam, Dahua, Arecont Vision, AxIS, Bosch, Brickcom, Canon, Honeywell,
• Panasonic, Pelco, Samsung, Sanyo, Sony, Vivotek and all other ONVIF compatible IP Cameras

1080p Quality
The DVR finally brings 1080p HD quality to a NVR that can be viewed on vivid, crystal-clear 1920x1080p resolution. Experience true High Definition video unlike any other system as your monitor brings everything to life. Whether you're recording, taking snapshots or checking Motion Detection alerts, no detail will make it past you even if it tried.

4-Channel NVR
Connect up to 4 cameras at once that you can control at the same time through the NVR's on-screen display! You can record with up to 4 x 720p cameras @ 30fps OR with up to 2 x 1080p cameras @ 30fps onto any hard drive size up to 4TB (hard drive not included) and utilize motion detection and scheduled recordings to record for a lot longer than continuous recording would allow.

Real-Time, No Latency Viewing and Night Vision
The HD NVR's closed-circuit design allows you to watch things happen as they happen. With a high-speed, dedicated, dual-core embedded processor, you can be ensured that your recorded footage will have virtually no latency which allows for real-time, highly reliable video security streams without loss or delay. You may as well be standing right there! Also, with night vision, not even the cover of dark can protect an intruder from the IR LEDs that will illuminate and capture their every move in detail.

Remote Viewing and Storage
When you bring your DVR online, you can tap into your system and check on all your cameras at any time from anywhere in the world! You can do this through the Amcrest View smartphone/tablet app as well as through the web interface once it has been setup for remote viewing. This allows you to always keep in touch with what's going on no matter where you are and even features alert notifications on the go!

Amcrest View App for iPhone or Android
Free yourself from having to sit at a computer to check on your cameras! Now, you can take them with you on the go by pulling up live feeds with the new Amcrest View app. It is free to download and available on the App Store and Play Store. The HD NVR comes with a QR-code for a quick and painless plug-and-play setup for remote viewing on your smartphone. Just scan it into the app and start viewing right away!

More Secure Than IP
Instead of having multiple devices independently accessible through the network, with the HD NVR, you only have one device. This NVR will be the hub for all your cameras at once. It's not only easier to set-up, but easier to manage, troubleshoot, access and control. And because you only have one device online, as opposed to multiple, you can also feel more secure.

Backwards Compatible
NVR is backwards compatible with VGA, 720p and 960p, IP Cameras.

Intelligent Timeline Playback
Amcrest DVR's come equipped with an intelligent timeline playback feature which allows you to view all of your recordings on a beautiful, intuitive interface. Scroll seamlessly through different days, hours or minutes and stream your recorded videos easily.

Plug-and-Play Set-up with Intuitive On Screen Display
No confusing configuration necessary. With the HD NVR, you just connect your Ethernet cable and enjoy your vibrant HD stream. At last, no more messy computer software downloading or configuration necessary. No need to worry about IP configuration, subnetting or port forwarding for each and every single camera independently. Instead, configure all your IP cameras into one location, the NVR, to gain access to all of your cameras at once! Enjoy viewing, controlling and managing all your cameras on the NVR's built-in OSD. You can even use your own keyboard and mouse!

USB for Data Transfers and HDMI or VGA Output
4 full Terabytes of storage space not enough? You don't have to delete old recordings to make room. Now you can pop in a USB drive or cable and backup your most important videos to an external storage device! And you can choose between standard and high definition output to any monitor or TV of your choice. Imagine showing off your cameras on the big screen!

What's in the box:

  • Amcrest NV1104 4-Channel 1080p NVR (No HDD)
  • USB Mouse
  • Network Cable
  • Power Supply
  • User Manual with Quick Start Guide & CD
  • Amcrest 1 Year Warranty
