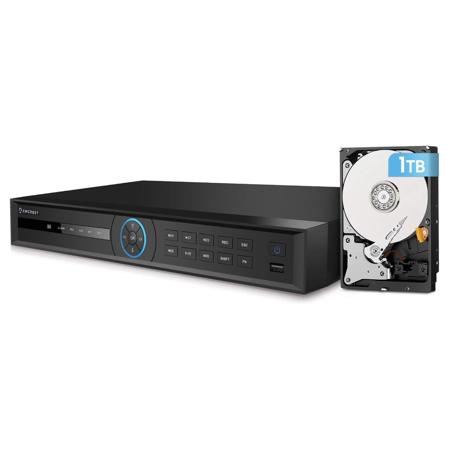

Amcrest NV5208E 4K UHD 8-Channel H.265 8-Port PoE Network Video Recorder with 1TB HDD

SKU: AMNV5208E1TB

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2022-12-11T19:00:00

Rated 5 out of 5

technical support

kImberly A good service and very helpful .

tony

2021-11-14T19:00:00

Rated 5 out of 5

Good product

Upgrade Loren NVR to this one. I had major problems with Lorex application. Amcrest has much better app to control NVR. I'm satisfied with the product.

Piotr G.

2021-08-29T20:00:00

Rated 5 out of 5

Works as advertised

Setup is very easy, just like the cameras and phone app. The interface is easy to navigate and has all the things you use 99% of the time right up front. I'm still digging into the power user features, but I'm pretty satisfied with it being a very good value for the cost. My alternative was to set up a dedicated server for all this so having the dedicated unit save me a lot of time.

DaveG

2020-10-15T20:00:00

Rated 5 out of 5

Great Product and Easy to Install

Plug it in, add camera's, adjust recording times and finished. Great product. I bought mine with a 3TB hard drive.

George W.

2020-04-25T20:00:00

Rated 5 out of 5

Great product and service

easy to setup and install the app on our phones

Chris G.

2020-03-27T20:00:00

Rated 5 out of 5

tech support very poor can

tech support very poor can not talk to anyone from United States

Richard S.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Amcrest NV5208E Specifications

System
  • Main Processor

    Quad-core embedded processor

  • Operating System

    Embedded LINUX

Audio and Video

Jump to...
  • IP Camera Input

    8 Channels

  • Two-way Talk

    1x Channel Input, 1x Channel Output, RCA

Display

Jump to...
  • Interface

    1x HDMI, 1x VGA

  • Resolution

    HDMI: 3840 x 2160, 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768. VGA: 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768

  • Decoding Capability

    4-ch@8MP (30fps)

  • Multi-screen Display

    1/4/8/9

  • OSD

    Camera title, Time, Camera lock, Motion detection, Recording

Recording

Jump to...
  • Compression

    H.265/H.264

  • Resolution

    12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 1.3MP, 720P, D1 etc.

  • Bit Rate

    16Kbps - 20Mbps Per Channel

  • Record Mode

    Manual, Schedule (Regular, MD (Motion Detection), Alarm, IVS), Stop

  • Record Interval

    1 - 120 min (default: 60 min), Pre-record: 1 - 30 sec, Post-record: 10 - 300 sec

Video Detection and Alarm

Jump to...
  • Trigger Events

    Recording, PTZ, Tour, Alarm Out, Video Push, Email, Snapshot, Buzzer and Screen Tips

  • Video Detection

    Motion Detection, MD Zones: 396 (22 x 18), Video Loss and Tampering

  • Alarm Input

    4 Channel

  • Relay Output

    2 Channel

Playback and Backup

Jump to...
  • Sync Playback

    39817

  • Search Mode

    Time /Date, Alarm, MD and Exact Search (accurate to second)

  • Playback Function

    Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Backup Selection, Digital Zoom

  • Backup Mode

    USB Device/Network

Network

Jump to...
  • Interface

    1x RJ-45 Port (10/100/1000Mbps)

  • PoE

    8 ports (IEEE802.3af/at) All ports support ePoE & EoC

  • Network Function

    HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, SNMP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, IP Search, P2P

  • Max. User Access

    128 Users

  • Management Software

    Amcrest Surveillance Pro (Windows/MAC), Amcrest View Pro app for IOS and Android, Web Browser (Pale Moon, SeaMonkey, Firefox 49.0, Internet Explorer, Chrome with Amcrest Extension, Safari 11)

  • Interoperability

    ONVIF 2.4, SDK, CGI

  • Incoming Bandwidth

    Max 320 Mbps

Storage

Jump to...
  • Internal HDD

    2x SATA III Ports, Up to 10 TB capacity for each HDD, Pre-Installed 1TB Seagate SkyHawk Security Surveillance Hard Drive

Auxiliary Interface

Jump to...
  • USB

    2x USB Ports (1x Rear USB 3.0, 1x Front USB 2.0)

  • RS232

    1x Port

  • RS485

    1x Port

General

Jump to...
  • Power Supply

    Single, AC100V - 240V, 50 - 60 Hz

  • Power Consumption

    NVR: <15.2W (Without HDD), PoE: Max 25.5W for single port 130W total rated power, 80% control for protection

  • Fan

    Smart fan, automatically adjust running speed

  • Operating Conditions

    +14 Degree F - +131 Degree F (-10 Degree C - +55 Degree C), 86 - 106kpa

  • Storage Conditions

    -4 Degree F - +158 Degree F (-20 Degree C - +70 Degree C), 0 - 90% RH

Physical

Jump to...
  • Dimensions

    14.8 x 12.9 x 2.1" (375 x 326.5 x 53mm)

  • Weight

    6 lbs (2.7kg) (Without HDD)

  • UPC Code

    091952769787

About Amcrest NV5208E

FEATURED REVIEWS

technical support

By tony

kImberly A good service and very helpful .

Good product

By Piotr G.

Upgrade Loren NVR to this one. I had major problems with Lorex application. Amcrest has much better app to control NVR. I'm satisfied with the product.

4K Quality
The DVR brings 4K UHD quality to a NVR that can be viewed on vivid, crystal-clear 8-Megapixel resolution. Experience true High Definition video unlike any other system as your monitor brings everything to life. Whether you are recording, taking snapshots, or checking Motion Detection alerts, no detail will make it past you even if it tried.

8-Channel NVR with PoE
Connect up to 8 PoE cameras at once that you can control at the same time through the NVR's on-screen display! You can record with up to 8 x cameras in 1080p/3MP/4MP/5MP/6MP/8MP/12MP resolution @ 30fps onto any hard drive (Supports up to 2 x 10TB Hard Drives) and utilize motion detection and scheduled recordings to record for a lot longer than continuous recording would allow. In addition, all the Ethernet ports on the back panel also support PoE, which saves you from having to use PoE splitters or injectors.

Real-Time, No Latency Viewing and Night Vision
The HD NVR's closed-circuit design allows you to watch things happen as they happen. With a high-speed, dedicated, dual-core embedded processor, you can be ensured that your recorded footage will have virtually no latency which allows for real-time, highly reliable video security streams without loss or delay. You may as well be standing right there! Also, with night vision, not even the cover of dark can protect an intruder from the IR LEDs that will illuminate and capture their every move in detail.

Remote Viewing and Storage
When you bring your DVR online, you can tap into your system and check on all your cameras at any time from anywhere in the world! You can do this through the Amcrest View smartphone/tablet app as well as through the web interface once it has been setup for remote viewing. This allows you to always keep in touch with what's going on no matter where you are and even features alert notifications on the go!

Amcrest View App for iPhone or Android
Free yourself from having to sit at a computer to check on your cameras! Now, you can take them with you on the go by pulling up live feeds with the new Amcrest View app. It is free to download and available on the App Store and Play Store. The DVR comes with a QR-code for a quick and painless plug-and-play setup for remote viewing on your smartphone. Just scan it into the app and start viewing right away!

More Secure Than IP
Instead of having multiple devices independently accessible through the network, with the HD NVR, you only have one device. This NVR will be the hub for all your cameras at once. It's not only easier to set-up, but easier to manage, troubleshoot, access and control. And because you only have one device online, as opposed to multiple, you can also feel more secure.

Plug-and-Play Set-up with Intuitive On Screen Display
No confusing configuration necessary. With the HD NVR, you just connect your Ethernet cable, and enjoy your vibrant HD stream. At last, no more messy computer software downloading or configuration necessary. No need to worry about IP configuration, subnetting, or port forwarding for each and every single camera independently. Instead, configure all your IP cameras into one location, the NVR, to gain access to all of your cameras at once! Enjoy viewing, controlling, and managing all your cameras on the NVR's built-in OSD. You can even use your own mouse!

Intelligent Timeline Playback
Amcrest DVR's come equipped with an intelligent timeline playback feature which allows you to view all of your recordings on a beautiful, intuitive interface. Scroll seamlessly through different days, hours, or minutes and stream your recorded videos easily.

Amcrest NV5208E Features

  • Extraordinary Quality: Supports 8-Channel 1080p/3MP/4MP/5MP/6MP/4K/12MP Resolution
  • Records 8-Channels @ 1080p/3MP/4MP/5MP/6MP/4K/12MP
  • View up to 4CH @ 4K @ 30fps simultaneously and the NVR will dial the remaining channels to 1080P @ 30fps
  • Record in Widescreen, Quick Access QR Code Remote Viewing on iPhone, iPad, and Android (w/ included Amcrest View app)
  • Advanced H.265 compression technology lets you save on storage space which allows for longer recording times. H.265 technology compresses your video without sacrificing any of the UltraHD video quality
  • Remotely Access Using Standard Windows and Mac Browsers
  • Easy to Install: Connect to and Manage All Cameras on Your Network
  • Feature-Rich OSD: Camera Name, Time, Motion Detection, Video Loss, Lock, and Record Status Icons
  • Multiple Trigger/Alarm Events: Recording, PTZ, Tour, Video Push, Email, FTP, and Buzzer
  • Custom Record Modes (e.g. Manual, Scheduled, Motion Detection) and Record Intervals (1-120min)
  • Pre-Installed 1TB Seagate SkyHawk Security Surveillance Hard Drive (Supports up to 2 X 10TB Hard Drives)
  • USB Backup Feature for Peace of Mind

Key Features

  • Extraordinary Quality: Supports 8-Channel 1080p/3MP/4MP/5MP/6MP/4K/12MP Resolution
  • Records 8-Channels @ 1080p/3MP/4MP/5MP/6MP/4K/12MP
  • Remotely Access Using Standard Windows and Mac Browsers
  • Easy to Install: Connect to and Manage All Cameras on Your Network
  • Feature-Rich OSD: Camera Name, Time, Motion Detection, Video Loss, Lock, and Record Status Icons
  • Multiple Trigger/Alarm Events: Recording, PTZ, Tour, Video Push, Email, FTP, and Buzzer

What's in the box:

  • Amcrest NV5208E 4K UHD 8-Channel H.265 8-Port PoE Network Video Recorder
  • 1TB Hard Drive (Pre-Installed)
  • USB Mouse
  • Network Cable
  • NVR Power Supply
  • SATA Cable
  • Quick Start Guide
  • Amcrest 1 Year Limited Warranty
