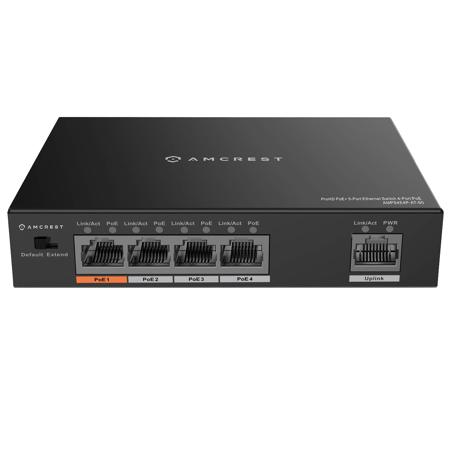

Amcrest 4-Port Power Over Ethernet POE+ Switch, Metal Housing
See all Amcrest items

Amcrest 4-Port Power Over Ethernet POE+ Switch, Metal Housing

SKU: AMPS4E4PAT60

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2025-07-22T20:00:00

Rated 5 out of 5

ip cam

Ashley did a great job !

Kim G.

2023-03-12T20:00:00

Rated 2 out of 5

Worked great until the POE quit

Nice sturdy metal case, but the POE power supply to each port quit. But it worked fine for 5 years. Now it just functions as a little LAN hub.

RBH

2022-01-24T19:00:00

Rated 5 out of 5

Great gadget

Na

Byron C.

2021-12-05T19:00:00

Rated 5 out of 5

Does what it's supposed to do

I hooked it up to one of the ports on my router via a 150ft cat 5 cable and the cam is working just fine. (DO NOT CONNECT ADDITIONAL POWER SUPPLY to the camera!!!!!!!!!!!!!!)

Friend

2021-07-25T20:00:00

Rated 5 out of 5

AAAAAA++++++

AAAAAA++++++

Matthew M.

2021-03-24T20:00:00

Rated 5 out of 5

Works well with my 4k@30fps PoE camera

This 10/100 Base POE switch works well with my 4k@30fps PoE camera. I have my camera on a 100ft CAT6 and did not even have to switch on the ?extended? mode. Doing the math - it should be able to support four 4k@30fps cameras without any issues. It has a sturdy metal case unlike the cheaper plastic ones I have seen.

Austin

2021-03-09T19:00:00

Rated 4 out of 5

Simple

This 4 port network switch is built with high quality as you can tell once you have it in your hand. It has some weight to it and feels very sturdy. The ports are labeled clearly and you simply plug it into your network, power it on, and then add whatever devices require 802.3af/at. Personally, since my router does not support POE of any degree I plug this into my network extender which allows me to add any additional cameras or other devices I want to include on my network so I can configure them without having to get my POE injector out and then hooking up one device at a time. The only true issue I have with this device is it has a switch on the front labeled: default/extend. I have no idea what this does as the documentation mentions nothing other than its existence. After using my magnifying glass to read the documentation I deduced there maybe something on their website or I will need to ask tech support.

William

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Amcrest POE Switch Specifications

  • Ethernet Port

    1x 10/100 Base-T
    4x 10/100 Base-T (PoE power supply)

  • PoE Power Consumption

    Port1<=60W, Port2-4<=30W, Total<=60W

  • PoE PIN Assignment

    1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)

  • PoE Power Management

    Support

  • PoE Protocol

    IEEE802.3af (PoE), IEEE802.3at (PoE+), Hi-PoE

  • Switching Capacity

    1Gbps

  • Packet Forwarding Rate

    744Kpps

  • Packet Buffer Memory

    448Kb

  • MAC Table Size

    1K

  • Flow Control

    Enable

  • Application Humidity

    5% - 95%

  • Power

    DC48-57V power adapter

  • Lightning Protection

    Common Mode 2KV
    Differential Mode 1KV

  • ESD Protection

    Air Discharge: 8KV
    Contact Discharge: 6KV

  • Working Temperature

    14 Degree F - 131 Degree F (-10 Degree C - 55 Degree C)

  • Dimensions

    5.1 x 3.3 x 1" (12.9 x 8.3 x 2.5mm)

  • Weight

    0.63 lbs (0.28kg)

  • UPC Code

    850011990797

About Amcrest POE Switch

FEATURED REVIEWS

Works well with my 4k@30fps PoE camera

By Austin

This 10/100 Base POE switch works well with my 4k@30fps PoE camera. I have my camera on a 100ft CAT6 and did not even have to switch on the ?extended? mode. Doing the math - it should be able to support four 4k@30fps cameras without any issues. It has a sturdy metal case unlike the cheaper plastic ones I have seen.

ip cam

By Kim G.

Ashley did a great job !

The Amcrest AMPS4E4P-AT-60
The Amcrest AMPS4E4P-AT-60 is a has one built in 10/100 Base-T Ethernet Port and four 10/100 Base-T PoE Ports. Supports Hi-PoE (60W) on Port 1, Supports Ports 2-4 30w power to each POE port (POE+ 802.3at), Total 60W.

Layer 2 Management PoE Switch
Layer 2 Management PoE Switch, supports MD/MDIX self adaptation. PoE Protocol: IEEE 802.3af & IEEE 802.3at (PoE+), Hi-PoE.

Amcrest POE Switch Features

  • 4 x 10/100 Base-T PoE Ports
  • Port 1 < 60W, Port 2-4 < 30W, Total < 60W PoE Power Consumption
  • PoE Protocol: IEEE802.3af (PoE), IEEE802.3at (PoE+), Hi-PoE
  • 1Gbps Switching Capacity
  • 744Kpps Packet Forwarding Rate
  • 448Kb Packet Buffer Memory
  • 1K MAC Table Size
  • Enable Flow Control
  • 5%-95% Application Humidity
  • DC 48-57V Power
  • Lightning Protection, Command Mode: 2KV, Differential Mode: 1KV

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • 4 x 10/100 Base-T PoE Ports
  • Port 1 < 60W, Port 2-4 < 30W, Total < 60W PoE Power Consumption
  • PoE Protocol: IEEE802.3af (PoE), IEEE802.3at (PoE+), Hi-PoE
  • 1Gbps Switching Capacity
  • 744Kpps Packet Forwarding Rate
  • 448Kb Packet Buffer Memory

What's in the box:

  • Amcrest 4-Port Power Over Ethernet POE+ Switch (Metal Housing)
  • Amcrest 1 Year Limited Warranty
