Abbingdon Music Research CD-777 Premier Class Compact Disk Processor

The CD-777 Compact Disk Processor upholds the AMR tradition of developing the most musically engaging components; by taking classic and modern audio approaches that are simple in concept, but challenging in execution. The CD-777 produces emotionally stirring music reminiscent of timeless, analogue replay. Exclusively using the Philips UDA1305AT Multibit chipset, a bespoke transport and premium quality valves, backed with cherry-picked components, the CD-777's atypical approach surpasses digital source machines costing several times more. With the same OptiSample technology as the CD-77, most important of all, Digital Master I and Digital Master II which were developed by AMR and are exclusive to the CD-77 and CD-777, means they are two of only a handful of digital components able to play "bit perfect" audio. This means music, not hifi is the result because there is no artificial manipulation of the signal (so often found in almost all other machines).

Mainstream components usually see functionality compromised. With the CD-777, rather, functionality has been taken to the extreme. The CD-777 is the first type of what AMR's refers to as a "music hub". Using the absolute highest quality design and execution, the CD-777 is first, a high-end CD processor. Second, able to receive a digital signal in from a PC or transport either through USB or S/P-DIF without the usual increase in jitter, it can be used as an accomplished DAC. Third, able to send out a digital signal through S/P-DIF to an external DAC or computer, it can function as an exceptionally well-designed transport source.

AMR's Continuous Calibration Multibit "CCMD" DAC
At the heart of the CD-777 Processor is AMR's 'continuous calibration' Multibit Digital-to-Analogue Converter circuit using the Philips UDA1305AT Multibit Chipset. This is the first time this New Old Stock chipset has been used in a CD source and is worthy of the title "son" to the "King of Multibit" Philips TDA1541A chipset used in the multi-award winning CD-77. With AMR's understanding of digital design down to the silicon die-level, the sonic performance of this "Prince of Multibit" chipset has been taken beyond the textbook limit. Producing visceral music that other mega-buck CD players cannot match, it must be heard to be believed. Along with AMR's OptiSample, the CD-77 boasts full remote control of all sampling modes: Direct Mastering (AMR's custom Non-Oversampling), Oversampling (2X, 4X) and Upsampling (96 kHz, 192 kHz).

OptiUSB
Over the last few years, the pace of progress of computer-based audio has continued unabated. So much so that AMR has developed a proprietary solution: OptiCompuAudio which allows the CD-777 to become a dedicated CD-Transport or Digital-To-Analogue Converter through either USB or S/P-DIF without a commensurate rise in jitter (unlike virtually every other approach). Underpinned by AMR's OptiClockLock system using a proprietary TXCO clock, the result is external or computer-based audio that is at the level of direct CD playback.

OptiSample
OptiSample offers the best possible performance for CD replay. AMR appreciates that "no one sound fits all". Hence, the CD-777 offers different sampling approaches from Digital Master to Oversampling to Upsampling. They are all user-selectable, offer different perspectives on the sound and reproduce the original recording to the highest degree. Most important of all are Digital Master I and Digital Master II which were developed by and are exclusive to AMR. With these two modes, the CD-77 and CD-777 are able to play "bit perfect" audio. This means music, not hifi is the outcome as there is no artificial manipulation of the signal."

OptiValve
Going against the grain, AMR believes that having the ultimate in digital execution would count for little if the analogue section was not just as dedicated. Hence, the analogue section of the CD-777 utilises AMR's OptiValve analogue stage with zero negative feedback and 6H1n-EV valves. The "EV" designation represents the premium version of this valve. As these are a double triode per channel, one half amplifies and the other buffers. Rectification and filtering in the CD-777 uses low-noise, solid-state diodes with additional noise filtering and an electronic inductor instead of copper wire wound around iron. While simplified in execution and with slightly less elaborate power supplies, the analogue stage of the CD-777 is identical in basic concept and function to that of the CD-77. With no operational amplifiers or solid-state devices, this is a major factor behind the CD-777's organic and "vinyl-like" music performance that will embarrass many a high-end CD player at even up to five times the price.

OptiTrans
AMR's expertise in specialised transformer design for audio use has led to the development of transformers with individual windings which offer the sonic benefit of individual transformers without the space required for separate transformers. Again, AMR has shunned the mainstream (and more cost-effective) approach to the use "off the shelf" transformers, preferring to have its own dedicated transformers hand-wound and hand-made. Power supply is an integral part of circuit design and AMR's steadfast approach has ensured the highest possible quality of music performance.

OptiDrive

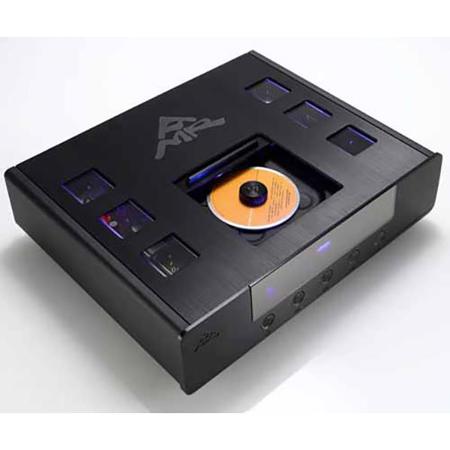

The OptiDrive transport mechanism is an in-house, ground-up design. The musical synergy was made possible through using the best genuine components - the high-precision, reliable Sony K-series laser pickup mated to the musical Phillips CD-18 servo system along with a proprietary high-torque direct-drive motor. The laser is constantly bathed in blue LED lighting to maximise the sonic performance. The software is bespoke by AMR to extract the maximum performance.

Unconventional, Dedicated Components
Underpinning the design behind each and every AMR component is the use of premium components which were chosen after judicious evaluation and extensive listening tests. These include silver leaf capacitors, Sanyo Oscon capacitors, precision wire wound resistors, 70um gold plated, military-grade printed circuit boards, German-made premium film capacitors, AMR's own power supply polypropylene film Music Capacitors and zero-noise Schottky rectifiers.
