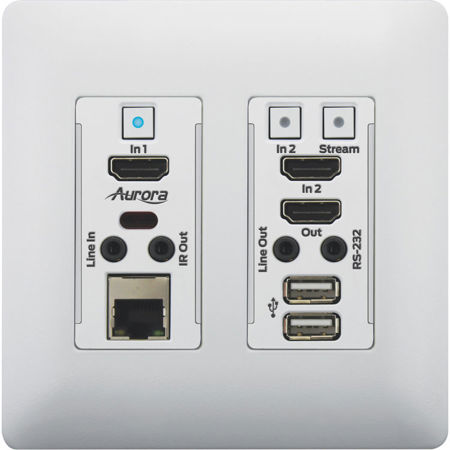

Aurora Multimedia VLX-TCW2H-C 4K IP Audio/Video Distribution Wall Plate with Two HDMI Ports, White

SKU: AMVLXTCW2HCW MFR: VLX-TCW2H-C-W
Earn VIP Reward Points

Key Features

  • Experience seamless 4K video distribution with this Aurora Multimedia wall plate solution.
  • Enjoy low latency (25ms) for real-time AV signal transmission using this power supply accessory.
  • Connect multiple HDMI devices effortlessly with the two HDMI 2.0 ports on this wall unit.
  • Simplify installations using the 1G Copper Ethernet RJ-45 port for reliable network connectivity.
  • Power your AV setup efficiently with PoE (Power over Ethernet) support, reducing cable clutter.
  • Control your display via IR or keypad using the On-Screen Display (OSD) for easy navigation.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$139.00

2 Year

$229.00

3 Year

$339.00

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Aurora Multimedia VLX-TCW2H-C Specifications

  • Compression

    8:1

  • Latency

    1.5 Frames (25ms)

  • Scaling

    1080p to 4K, 4K to 1080p

  • HDMI Inputs

    2 HDMI 2.0/HDCP2.2

  • HDMI Outputs

    1 HDMI 2.0/HDCP2.2

  • Audio Analog

    Stereo Line In/Out (3.5mm TRS)

  • 1G Copper Ethernet

    RJ-45

  • LAN

    RJ-45 10/100/1000M PoE (PSE)

  • Video Bandwidth

    340MHz

  • Video support

    Up to 4K2K 4:2:0 at 60Hz

  • Audio support

    Up to 32 channels & Break-away Capable

  • RS-232

    2 qty Up to 115k Baud (3.5mm TRS)

  • IR

    Bi-Directional (3.5mm TRS)

  • USB Connector

    1 USB 2.0 Type A, 1 USB 2.0 Type B 2 USB 1.1 Type A

  • Expansion Port

    Dante Option

  • Interface

    IR or Keypad via OSD, Webserver

  • Housing

    Aluminum

  • Mounting

    Wall-mounting Decora 2 Gang

  • Power supply

    48V DC (2 pin Euro) or 1G PoE

  • Power consumption

    9 Watts

  • Relative humidity

    20-90% RH [no condensation]

  • Operation temperature

    0 to 40 deg. C (32 to 104 deg. F)

  • Storage temperature

    -20 to 60 deg. C (-4 to 140 deg. F)

  • Dimensions (LxWxH)

    2 Gang: 3.728 x 2.83 x 1.404" (9.47 x 7.19 x 3.57cm)
    With Tabs: 3.728 x 4.331 x 1.404" (9.47 x 11.00 x 3.57cm)

  • Weight

    2.5 lbs (1.13kg)

About Aurora Multimedia VLX-TCW2H-C

The VLX-TCW2H provides one of the most advanced IP Streaming solutions on the market utilizing Aurora's IPBaseT technology, which synergizes various IP/AV standards to work together as one. It is the industry's first 4K UHD transceiver with only 1.5 frame (25ms) latency and visually lossless compression. The VLX-TCW2H has 2 HDMI ports. Using a transmitter (encoder) and receiver (decoder), respectively, used to be the standard - until now. The VLX-TCW2 Series can be set up as either one to make installation, inventory and troubleshooting easier.

Note:

The selected network switch needs to support: 1Gbps, Non-blocking IGMP & Jumbo Frame Packets. The raw network cabling as well as the patch cables are as important as the switch. When using copper, CAT5e, 6 or 6a cable is preferred for optimal performance and is important to follow the standard rules for running Ethernet cables. No sharp bends, coiling, putting near power lines, grouping tightly together with other LAN cables, etc. Shielding is not necessary but can be used for noisy environments.

Aurora Multimedia VLX-TCW2H-C Features

  • 4K visually lossless over 1Gbps network
  • Low 1.5 frame latency
  • 1080p to 4K, 4K to 1080p scaling
  • HDMI 2.0/HDCP 2.2
  • Unlimited scalability (based on network topology)
  • Videowall with image rotation
  • PoE (Power over Ethernet)
  • Stereo line I/O
  • RS-232 and IR Control Ports
  • Auto sense switching
  • USB 2.0 Host and Device Ports
  • Dante IP audio option
  • 4K60 4:2:0/4K30 4:4:4 Over 1G CAT5e/6/6a
  • Configure as Transmitter (Encoder) or Receiver (Decoder)
  • 128 per source with HDCP, Larger for Non-Encrypted Sources
  • 2 HDMI Inputs, 1 HDMI Output
  • On Screen Display (OSD)
  • Integrated Web Server for Configuration and control
  • Front Keypad & IR Remote with lockout function
  • 2 Gang Mounting for Wall plates
  • Available in White or Black

Warranty Information

This product has a limited warranty of 36 months for parts and 36 months for labor.

Key Features

  • Experience seamless 4K video distribution with this Aurora Multimedia wall plate solution.
  • Enjoy low latency (25ms) for real-time AV signal transmission using this power supply accessory.
  • Connect multiple HDMI devices effortlessly with the two HDMI 2.0 ports on this wall unit.
  • Simplify installations using the 1G Copper Ethernet RJ-45 port for reliable network connectivity.
  • Power your AV setup efficiently with PoE (Power over Ethernet) support, reducing cable clutter.
  • Control your display via IR or keypad using the On-Screen Display (OSD) for easy navigation.

What's in the box:

  • Aurora Multimedia VLX-TCW2H-C 4K IP Audio/Video Distribution Wall Plate
  • Aurora Multimedia 3 Year Parts & Labor Limited Warranty
