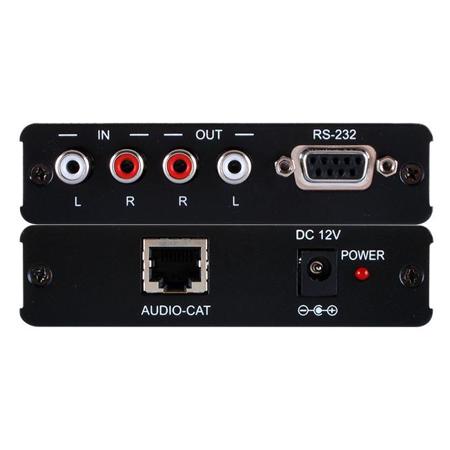

A-NeuVideo ANI-23TCDTX Analog Stereo Audio Extender Transmitter
See all A-NeuVideo items

A-NeuVideo ANI-23TCDTX Analog Stereo Audio and RS-232 over CAT5e/6/7 Extender Transmitter

SKU: AN23TCDTX
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

A-NeuVideo ANI-23TCDTX Specifications

  • Input Ports

    L/R (2-RCA)
    RS-232

  • Output Ports

    L/R (2-RCA)
    AUDIO-CAT

  • Audio Formats

    Analog Stereo 2CH

  • Output Level THD+N

    80dB

  • SNR

    95dB

  • Frequency Response

    +/-3 dBFS/Vrms

  • Crosstalk

    -88dB

  • CAT Cable Distance

    Approx. 985' (300.23m)

  • Power Supply

    12VDC/1.25A (US/EU standards, CE/FCC/UL certified)

  • ESD Protection

    Human Body Model:
    +/- 6kV (air-gap discharge)
    +/- 4kV (contact discharge)

  • Chassis Material

    Metal

  • Operating Temperature

    0 to 40 deg. C (32 to 104 deg. F)

  • Storage Temperature

    -20 to 60 deg. C (-4 to 140 deg. F)

  • Relative Humidity

    20 to 90% RH (no condensation)

  • Power Consumption

    1.65W

  • Dimensions (WxDxH)

    4 x 4 x 1" (10.16 x 10.16 x 2.54cm)
    4 x 4.6 x 1" (10.16 x 11.68 x 2.54cm) Jack Included

About A-NeuVideo ANI-23TCDTX

The ANI-23TCDTX Analog Stereo Audio and RS-232 over CAT5e/6/7 extender Transmitter is designed to extend analog stereo audio over a single run of CAT5e/6/7 cable up to approx. 985ft/300M. With Bi-directional RS-232 control and PoC features added these units can be used with Receiver or Transmitter unit that supports RS-232 device control and one-way power supply. This product has a 3 year warranty.

A-NeuVideo ANI-23TCDTX Features

  • Supports Coaxial or Optical digital audio S/PDIF signal
  • Supports stereo and multi-channel digital audio such as LPCM 2CH, Dolby Digital or DTS 5.1CH
  • Supports industry standard Category 5/5e/6 cable
  • Digital audio S/PDIF performance sampling rate 96kHz
  • Supports single Coaxial input to Coaxial signal output
  • Supports single Optical input to Optical signal output

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • A-NeuVideo ANI-23TCDTX Analog Stereo Audio and RS-232 over CAT5e/6/7 Extender Transmitter
  • 12V Power Adaptor
  • Users Guide
  • A-NeuVideo 3 Year Warranty.
