A-NeuVideo ANI-8WP IP Wall Plate Control Keypad, White
See all A-NeuVideo items

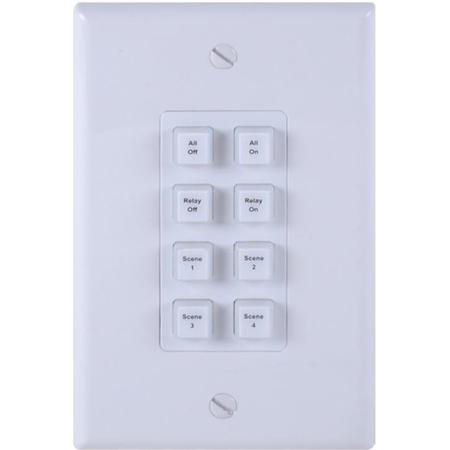

A-NeuVideo ANI-8WP 8 Button Programmable Illuminated IP Wall Plate Control Keypad, White

SKU: AN8WP
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

A-NeuVideo ANI-8WP Specifications

  • Input Ports

    8x Buttons

  • Output Ports

    1x Relay (Terminal Block)
    24V 10A, 100 milliohms at 1A 6VDC
    1x IP Control (RJ- 45)

  • Power Supply

    5 V/2.6 A DC (US/EU standards, CE/FCC/UL certified)

  • ESD Protection

    Human body model
    +/-8 kV (air-gap discharge)
    +/-4 kV (contact discharge)

  • Chassis Material

    Metal

  • Operating Temperature

    32 to 104 deg. F / 0 to 40 deg. C

  • Storage Temperature

    -4 to 140 deg. F / -20 to 60 deg. C

  • Relative Humidity

    20 to 90% RH (non-condensing)

  • Power Consumption

    3.3W

  • Dimensions (W x D x H)

    1.8 x 1.5 x 4" / 45.72 x 38.10 x 101.60mm (Jack Excluded)

  • Weight

    5.5oz / 155.92g

  • UPC Code

    857391003789

About A-NeuVideo ANI-8WP

The ANI-8WP Wall-Plate Control System is a fantastic and useful design for system installers and smart home users. With (8) direct macro command buttons, plus an additional (8) macro commands in the WebGUI, this unit has up to (16) commands that can be executed with one push of a button for a total of 128 command capacity inside this box. Soft and colorful LED design makes for a professional presentation and the PoE (Power over Ethernet) function allows for a flexible installation without the need for an external power supply. Further, this units relay output and scheduling functions can be used to raise and lower projection screens, control matrix switchers or any device that supports Telnet.

A-NeuVideo ANI-8WP Features

  • (8) Macro buttons + (8) extra Macro programmable commands via WebGUI for up to 128 commands
  • (1) Relay Output for additional device control
  • Scheduling control for date/time specific events
  • Supports Key Pad, Telnet and WebGUI control
  • PoE or external DC power supply
  • US 1 Gang wall plate design with adjustable LED intensity
  • 56 Button Labels included (28 Pre-Printed & 28 Blank)

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • A-NeuVideo ANI-8WP 8 Button Programmable Illuminated IP Wall Plate Control Keypad
  • USB Type A to Mini USB OTG Connector
  • 2x 3.5mm Terminal Block Pitch
  • White Decora Plate
  • 5V/2.6A Power Adaptor
  • 56x Button Sticker
  • Operation Manual
  • A-NeuVideo 3 Year Warranty
