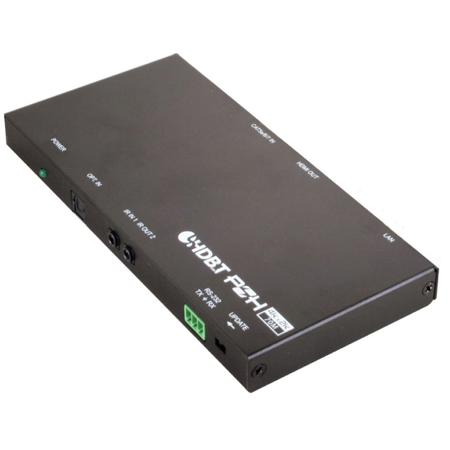

A-NeuVideo ANI-9251RX HDCP and HDMI Extender with OAR/Audio Insertion Receiver
See all A-NeuVideo items

A-NeuVideo ANI-9251RX HDCP 2.2 and HDMI 2.0 Extender with OAR/Audio Insertion Receiver for ANI-1082UHD Switcher

SKU: AN9251RX
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

A-NeuVideo ANI-9251RX Specifications

  • Input Ports

    CAT5e/6/7 (RJ45) PoH
    IR In
    Optical In

  • Output Ports

    HDMI
    IR Out 2

  • Other Ports

    LAN (RJ45)
    RS-232 (Phoenix Connector)
    Update slide switch

  • Video Bandwidth

    340MHz / 10.2Gbps

  • HDMI Resolutions

    HD: 480i up to 4K2K at 50/60Hz (YUV 420)
    PC: VGA up to WUXGA

  • HDMI Cable Distance Output

    33' (10.06m) 1080p at 8-bit or 12-bit / 16' (4.88m) 4K2K at 60Hz

  • CAT5e/6/7 Cable Distance

    Up to 328' (99.98m) at 1080p and 230' (70.10m)at 4K2K at 60Hz

  • RS-232 Baud Rate

    Up to 115200bps

  • IR Frequency

    30 to 50kHz

  • ESD Protection

    Human Body Model:
    +/- 8kV (air-gap discharge)
    +/- 4kV (contact discharge)

  • Chassis Material

    Metal

  • Operating Temperature

    0 to 40 deg. C (32 to 104 deg. F)

  • Storage Temperature

    -20 to 60 deg. C (-4 to 140 deg. F)

  • Relative Humidity

    20 to 90% RH (non-condensing)

  • Power Consumption

    19.5W

  • Dimensions (WxDxH)

    3 x 6.4 x .6" (7.62 x 16.26 x 1.52cm)
    3 x 7.2 x .6" (7.62 x 18.29 x 1.52cm) including surface mount tabs

  • Weight

    0.75 lbs (0.34kg)

About A-NeuVideo ANI-9251RX

The ANI-9251RX HDMI over single CAT5e/6/7 Receiver is a great solution to extend uncompressed Audio/Video and IP data over a single CAT5e/6/7 cable at a distance up to 328ft (100M). Multi-control interfaces are available which includes IR, RS-232, USB and LAN connection. This extender set complies with advanced protocols of HDCP 2.2 and HDMI 2.0 and HDCP 1.4 is also supported. 6G HDMI video supports and extends 4K2K data with features like "Optical Audio Return" which supports audio from the Receiver. The "audio insertion" allows you to insert external audio into HDMI video for applications such as background music insertion. HDBT clock stretch and TMDS re-clocking are also supported. The Receiver can be powered via the PoH when connected to the ANI-1082UHD . This product has a 3 year warranty.

A-NeuVideo ANI-9251RX Features

  • HDCP 1.4/HDCP 2.2 and HDMI 2.0 compliant
  • HDMI with 3D, 4K2K at 60Hz support and DVI Compliant
  • Simultaneous transmission of uncompressed data over a single CAT5e/6/7 cable up to 328ft/100M at 1080p and 230ft/70M at 4K2K at 60Hz
  • 5Play convergence: HDMI, LAN, PoE & Control (IR & RS-232)
  • (PoH) Receives power over a CAT cable when connected to the ANI-1082UHD
  • Supports output resolution up to 4K2K at 50/60Hz (YUV 420)
  • Supports deep color input and output of 8 bits, 10 bits and 12 bits
  • Supports CEC bypass
  • Optical audio return supports audio transmit back from receiver to ANI-1082UHD
  • Audio insertion supports external audio insert to HDMI video such as background music insertion
  • Supports EDID management PC software with default EDID and native EDID from display or other sink devices
  • Supports HDMI DDC bus clock stretch for better compatibility of some Blu-ray players
  • Manages TMDS re-clocking and signal re-generation for better signal stability
  • Easy firmware update via USB

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • A-NeuVideo ANI-9251RX HDCP 2.2 and HDMI 2.0 Extender with OAR/Audio Insertion Receiver
  • IR Extender Cable
  • IR Blaster Cable
  • RS-232 Terminal (Phoenix Connector)
  • Audio Terminal (Phoenix Connector)
  • Surface Mount Tab Set
  • Users Guide
  • A-NeuVideo 3 Year Warranty
