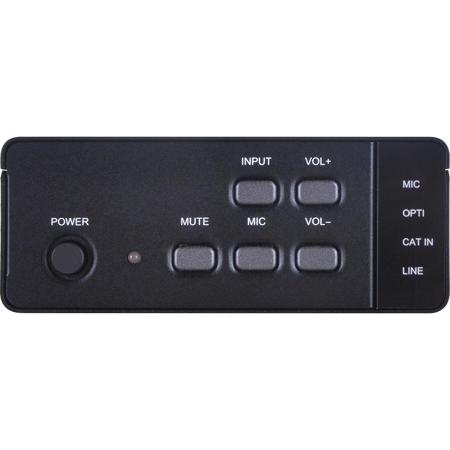

A-NeuVideo ANI-AD100 100W Amplifier with LR/Optical/CATx Input Mixer with Mic
See all A-NeuVideo items

A-NeuVideo ANI-AD100 100W Amplifier with LR/Optical/CATx Input Mixer with Microphone

SKU: ANAD100
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

A-NeuVideo ANI-AD100 Specifications

  • Input Ports

    Optical
    L/R (Terminal Block)
    CAT5e/6/7
    Mic (Terminal Block)
    IP Control (RJ-45)
    USB (Service only)

  • Output Ports

    L/R (Terminal Block)

  • Power Supply

    24V/2.7A DC (US/EU standards, CE/FCC/ UL certified)

  • ESD Protection

    Human Body Model:
    +/- 8kV (air-gap discharge)
    +/- 4kV (contact discharge)

  • Audio

    (2) 50W at 4Ohms<10% THD+N
    (2) 50W at 8Ohms<10% THD+N
    Frequency Response: < +/- 3dB
    SNR>70dBat 20Hz 20kHz A weighted
    THD+N at 1w<1% at 1kHz
    Crosstalk at 1w<-60dB at 20Hz20kHz

  • Audio CAT (CAT5e/6/7)

    Sample Rate/Cable Length:
    48kHz (Approx. 985ft/300M)
    96kHz (Approx. 492ft/150M)
    192kHz (Approx. 279ft/85M)

  • Chassis Material

    Metal

  • Operating Temperature

    0 to 40 deg. C (32 to 104 deg. F)

  • Storage Temperature

    -20 to 60 deg. C (-4 to 140 deg. F)

  • Relative Humidity

    20 - 90% RH (Non-condensing)

  • Dimensions (WxDxH)

    4.3 x 6.1 x 1.7" (10.92 x 15.49 x 4.32cm)
    4.3 x 6.2 x 1.9" (10.92 x 15.75 x 4.83cm) Jacks Included

  • Weight

    644g (22.72 oz)

  • UPC Code

    857391003932

About A-NeuVideo ANI-AD100

The ANI-AD100 Amplifier with Optical/LR/CAT Input Mix with MIC is a fabulous gadget for audio mixture with vocal sound and output to analog speaker with mono or stereo sound. Allowing users with both digital and analog audio source selections along and a distance input up to ~985ft/300M away. Controls like Telnet & WebGUI allows the user easy adjustment and control over the audio setting and on-panel control with LED indication adds-on the friendly use for the device. This product has a 3 year warranty.

A-NeuVideo ANI-AD100 Features

  • Digital to Analog audio Conversion (DAC)
  • Optical input sampling rate up to 192kHz
  • Optical, L/R, CAT inputs and 48V/Line Microphone
  • Audio CAT input up to approx. 985ft/300M
  • Output speaker up to 50W
  • Output sound supports up to 20dB
  • Microphone sound up to 18dB
  • Stereo or Mono output
  • Volume control from On-panel, Telnet or WebGUI or RS-232 through Audio CAT
  • Control switch by single button press
  • CAT supports RS-232 input control for Baud Rate 115200bps
  • Microphone sound mix into output sound
  • Microphone Individual Input support

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • A-NeuVideo ANI-AD100 100W Amplifier
  • 24V/2.7A DC Power Supply
  • Power Cable
  • Users Guide
  • A-Neuvideo 3 Year Warranty
