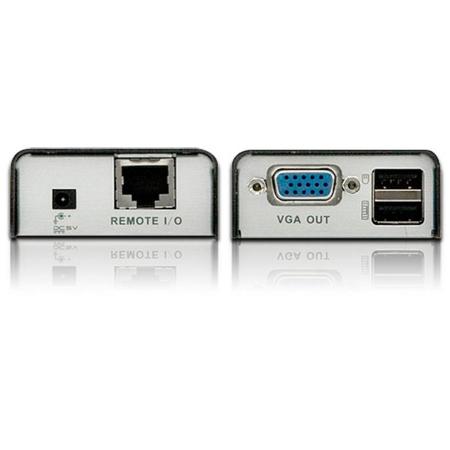

Aten CE100 Cat5e USB Mini KVM Console Extender, Connects Up to 320' Distance
See all Aten items

Aten CE100 Cat5e USB Mini KVM Console Extender, Connects Up to 320' Distance

SKU: ANCE100

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Aten CE100 Specifications

  • Compatibility

    Desktop KVM Switches: CS1742, CS1734B, CS1734A, CS1732B, CS1732A
    KVM Modules & Accessories:CS231
    Rack KVM Switches: CS1758, CS1754

  • Connectors: Console Ports

    Keyboard: USB Type A Female (White)
    Video: HDB-15 Female (Blue)
    Mouse: USB Type A Female (White)

  • Connectors: KVM Ports

    Keyboard / Mouse: USB Type B Female (White)
    Video: HDB-15 Male (Blue)

  • Connectors: Power

    DC Jack

  • Connectors: Unit to Unit

    RJ-45 Female (Black)

  • Switch

    Remote: Knob

  • LEDs: Link

    1 (Blue)

  • LEDs: Power

    1 (Green)

  • Video

    1920 x 1200 at 60 Hz (30 m); 1280 x 1024 at 60 Hz (100 m)

  • Power Consumption

    Local: DC5V, 0.5W
    remote: DC5V, 1.25W

  • Operating Temperature

    0 to 50 deg. C / 32 to 122 deg. F

  • Storage Temperature

    -20 to 60 deg. C / -4 to 140 deg. F

  • Humidity

    0-80% RH, Non-condensing

  • Housing

    Metal

  • Dimensions (L x W x H)

    Local: 9.10 x 5.74 x 2.40cm / 3.58 x 2.26 x 0.94"
    Remote: 9.10 x 5.74 x 2.40cm / 3.58 x 2.26 x 0.94"

  • Weight

    Local: 0.16kg / 0.35lbs
    Remote: 0.16kg / 0.35lbs

  • UPC Code

    672792002960

About Aten CE100

The CE100 USB KVM Extender with superior video quality and built-in ESD protection allows access to a computer system from a remote USB console (USB keyboard, USB mouse and monitor). The CE100 improves on previous designs by: 1) incorporating a compensation adjustment function at the Remote unit for greater video quality; and 2) using inexpensive Cat 5e cable, instead of bulky, expensive, standard cables, to provide a neater, more convenient, more reliable data transfer connection.

Aten CE100 Features

  • Extends local PC VGA/keyboard/Mouse to Remote side
  • Uses Cat 5e cable to connect the local and remote units
  • Easily add or remove computers connected to the installation
  • Supports real time DDC communication
  • Superior video quality - up to 1920 x 1200
  • Allow access to a computer from the remote console up to 100 m distance
  • Support manual compensation adjustment for better video quality
  • No external power supply needed for local unit
  • Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV)
  • Wall mountable

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Extends local PC VGA/keyboard/Mouse to Remote side
  • Uses Cat 5e cable to connect the local and remote units
  • Easily add or remove computers connected to the installation
  • Supports real time DDC communication
  • Superior video quality - up to 1920 x 1200
  • Allow access to a computer from the remote console up to 100 m distance

What's in the box:

  • Aten CE100L Mini USB KVM Extender (Local Unit)
  • CE100R Mini USB KVM Extender (Remote Unit)
  • USB/VGA Cable
  • Power Adapter (for Remote Unit)
  • Mounting Kit
  • User Instructions
  • Aten 3 Year Warranty
