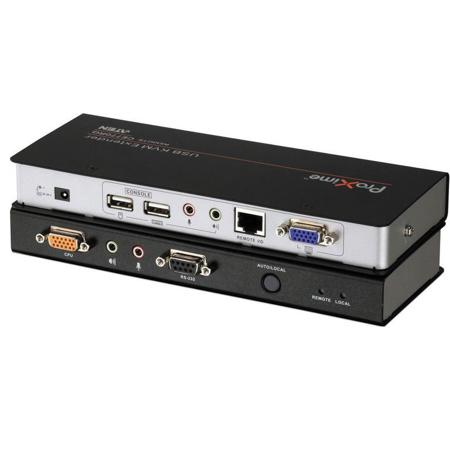

Aten CE770 Cat5e USB KVM Console Extender, Connects Up to 1000' Distance
See all Aten items

Aten CE770 Cat5e USB KVM Console Extender, Connects Up to 1000' Distance

SKU: ANCE770

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Aten CE770 Specifications

  • Compatibility

    Cable KVM Switches: CS64U, CS62US, CS62U
    Desktop KVM Switches: CS84U, CS82U, CS74U, CS72U, CS1742, CS1734B, CS1734A, CS1732A, CS1732B
    Rack KVM Switches:CL5716, CL5708
    LCD KVM Switches: CS1308, CS1758, CS1754, CS1716A, CS1708A, CS1316

  • Connectors: Console Ports

    Keyboard: USB Type A Female (White)
    Video: HDB-15 Female (Blue)
    Mouse: USB Type A Female (White)
    Speakers: Mini Stereo Jack Female (Green)
    Mic: Mini Stereo Jack Female (Pink)
    RS-232: DB-9 Female (Black) Local, DB-9 Male (Black) Remote

  • Connectors: KVM Ports

    Keyboard/ Video / Mouse: SPHD-17 Female (Yellow)
    Speakers: Mini Stereo Jack (Green)
    Mic: Mini Stereo Jack (Pink)

  • Connectors: Power

    UDC Jack (Black)

  • Connectors: Unit to Unit

    RJ-45 Female (Black)

  • LEDs

    Local: 1 x local (green)
    Remote: 1 x local (green)
    B: 1 Remote (Blue)
    G Link:1 Remote (Orange/Green)
    R Remote: 1 Remote (Red)

  • Push buttons

    Operating Mode Selection: Push button (Local)
    Color / Up: Push button (Remote)
    Select / Down: Push button (Remote)

  • Emulation

    Keyboard / Mouse: USB

  • Video

    1920 x 1200 at 60Hz (150 m); 1280 x 1024 at 60Hz(300m); DDC, DDC2, DDC2B

  • Power Consumption

    DC5.3V/3.5W (Local)
    DC5.3V/5.1W (Remote)

  • Operating Temperature

    0 to 50 deg. C / 32 to 122 deg. F

  • Storage Temperature

    -20 to 60 deg. C / -4 to 140 deg. F

  • Humidity

    0-80% RH, Non-condensing

  • Housing

    Metal

  • Dimensions (L x W x H)

    Local: 20.20 x 8.64 x 2.50cm / 7.95 x 3.40 x 0.98"
    Remote: 20.20 x 8.64 x 2.50cm / 7.95 x 3.40 x 0.98"

  • Weight

    Local: 0.49kg / 1.08lbs
    Remote: 0.48kg / 1.06lbs

  • UPC Code

    672792001970

About Aten CE770

The CE770 is a USB based KVM Extender with Deskew function. The automatic signal compensation and RS-232 serial functionality allow access to a computer system from a remote USB console. The CE770 supports RGB delay tuner to manually synchronize the RGB signals. This allows users to deploy system equipment over large distances. The CE770's line synchronizing function corrects color phase and timing errors that occur over long distance transmissions. It also enables you to manually tune the R/G/B signal settings.

Aten CE770 Features

  • Local and Remote Units connect at distances up to 300 m using Cat 5e cable
  • Dual console operation - control your system from both the local and remote USB keyboard, monitor and mouse consoles
  • Deskew Function - automatically synchronizes the time delay of RGB signals to compensate for distance
  • Built-in ASIC for greater reliability and compatibility
  • Auto Signal Compensation (ASC)
  • RS-232 serial ports - allow you to connect to a serial terminal, or serial devices such as touchscreens and barcode scanners
  • Sun/Mac keyboard support and emulation
  • Audio Enabled - supports stereo speakers and microphone
  • USB overcurrent detection and prevention
  • Pushbutton operating mode selection (Local Unit only) - select between Local and Auto operating modes, with the press of a single button
  • Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV) and 2KV surge protection
  • High resolution video - up to 1920 x 1200 at 60Hz (150 m); 1280 x 1024 at 60Hz (300 m)
  • Superior Audio - no loss in audio quality at 300 m
  • Supports Wide Screen formats
  • Supports VGA, SVGA, SXGA (1280 x 1024), UXGA (1600 x 1200), WUXGA (1920 x 1200) and multisync monitors; local monitor supports DDC; DDC2; DDC2B
  • Hot pluggable
  • Rack mountable
  • Easy to install - no software required - connecting cables to the devices is all it takes

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Local and Remote Units connect at distances up to 300 m using Cat 5e cable
  • Built-in ASIC for greater reliability and compatibility
  • Auto Signal Compensation (ASC)
  • Sun/Mac keyboard support and emulation
  • Audio Enabled - supports stereo speakers and microphone
  • USB overcurrent detection and prevention

What's in the box:

  • Aten CE770L USB KVM Extender (Local Unit)
  • CE770RQ USB KVM Extender (Remote Unit)
  • USB KVM Cable (1.8m)
  • 2x Power Adapter
  • Mounting Kit
  • User Instructions
  • Aten 3 Year Warranty
