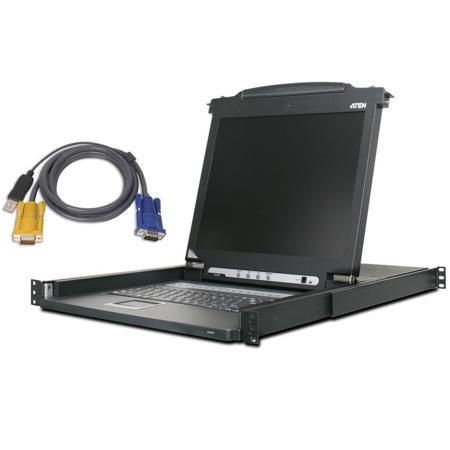

Aten CL1008MUKIT 8-Port 17" Single Rail LCD Integrated USB/PS2 KVM Console with 8 USB KVM Cables

SKU: ANCL1008MUKT MFR: CL1008MUKIT
Earn VIP Reward Points

Key Features

  • Consolidate control with this 8-port KVM switch, managing multiple servers easily.
  • Enjoy seamless operation with integrated LCD KVM console, saving space in your setup.
  • High compatibility: This KVM supports both USB and PS/2 interfaces for flexible use.
  • Achieve superior video quality with 1280x1024 resolution via this Aten KVM switch.
  • Simplify server management using hotkeys and OSD for quick KVM port selection.
  • This KVM solution includes all necessary KVM cables for immediate setup and use.
See More Product Details
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Aten CL1008MUKIT Specifications

  • Computer Connections

    Direct: 8
    Max: 128(via Daisy Chain)

  • Port Selection

    Pushbutton, Hotkeys, OSD

  • Connectors

    KVM Ports: 8x SPHD Female (Yellow)
    Daisy-Chain: DB-25 Male
    F/W Upgrade: RJ-11 Female
    Power: 3-prong AC socket

  • Switches

    Reset: Semi-recessed Pushbutton
    Power: Rocker
    F/W Upgrade: Slide
    LCD Adjust: 4x Pushbutton
    Port Selection: 8x Pushbutton

  • LEDs

    On Line: 8 (Orange)
    Selected: 8 (Green)
    Power: (Dark Green)

  • LEDs Lock

    Num Lock: Green
    Caps Lock: Green
    Scroll Lock: Green

  • Emulation

    Keyboard / Mouse: PS/2

  • Video

    1280 x 1024 at 75Hz; DDC2B

  • Scan Interval (OSD Select)

    1-255 Seconds

  • I/P Rating

    100-240V AC; 50/60Hz; 1A

  • Power consumption

    120V, 15W / 230V, 17W

  • Operating Temp.

    0 to 40 deg. C / 32 to 104 deg. F

  • Storage Temp.

    -20 to 60 deg. C / -4 to 140 deg. F

  • Humidity

    0-80% RH, Non-condensing

  • Housing

    Metal + Plastic

  • 2L-5201P KVM Cable: Connector 1

    2x PS2 for keyboard and mouse
    HDB-15 Male

  • 2L-5201P KVM Cable: Connector 2

    SPHD-15 Male

  • 2L-5201P KVM Cable: Length

    4.0' / 1.2m

  • 2L-5201P KVM Cable: Compatibility

    Compatible with the following ATEN products: CS72E, CS74E, ACS1208A, ACS1216A, CE250A, CS1308, CS1316, CE252, CS231, CS1708A, CS1716A, CL5708, CL5716, CL1000, CL5800, CL1008, CL1016, CN8000, KH0116, KL9108, KL9116, KL1100, CS1708i, CS1716i, CL5808, CL5816, CL3000, CL1000N, CL1308, CL1316

  • 2L-5202UP KVM Cable: PC Connectors

    Monitor: HDB-15 male
    Keyboard and Mouse: USB Type A male

  • 2L-5202UP KVM Cable: Console Connectors

    Switch: SPHD male

  • 2L-5202UP KVM Cable: Compatibility

    Compatible with the following ATEN products: ACS1208A, ACS1216A, CE350, CE370, CL1000, CL1000N, CL1008, CL1016, CS72E, CS74E, KH0116, KL9108, KL9116, ACS1208AL / 1216AL, CL1208 / CL1216, CN6000, CS1208DL / 1216DL, CS72A, CS74A, KL1116, KN9108, KN9116

  • 2L-5202UP KVM Cable: Length

    5.9' / 1.8m

  • 2-L5203UP KVM Cable: PC Connectors

    Monitor: HDB-15 male
    Keyboard and Mouse: USB Type A male

  • 2-L5203UP KVM Cable: Console Connectors

    Switch: SPHD male

  • 2-L5203UP KVM Cable: Compatibility

    Compatible with the following ATEN products: ACS1208A, ACS1216A, CE350, CE370, CL1000, CL1000N, CL1008, CL1016, CS72E, CS74E, KH0116, KL9108, KL9116, ACS1208AL / 1216AL, CL1208 / CL1216, CN6000, CS1208DL / 1216DL, CS72A, CS74A, KL1116, KN9108, KN9116

  • 2-L5203UP KVM Cable: Length

    9.8' / 3m

  • Dimensions (D x W x H)

    KVM Switch: 48.00 x 64.02 x 4.40cm / 18.90 x 25.20 x 1.73"

  • Weight

    KVM Switch: 13.34kg / 29.41lbs

  • UPC Code

    672792503306

About Aten CL1008MUKIT

Discover the power and convenience of the CL1008MUKIT 8-Port 17" Single Rail LCD Integrated USB/PS2 KVM Console Bundle. This advanced control unit allows you to access multiple computers from a single keyboard, video, and mouse (KVM) console, streamlining your workspace and enhancing productivity.

The CL1008MUKIT is capable of controlling up to 8 computers directly, making it a versatile solution for managing multiple systems. For larger setups, up to 15 additional KVM switches can be daisy-chained to the CL1008 / CL1016, allowing control of up to 128 computers from a single KVM console.

This bundle includes the CL1008M 8-Port 17" LCD KVM Switch, a 2L5202UP 6 ft. USB KVM cable, and a 2L5203UP 10 ft. USB KVM cable. The console features an integrated 8-port KVM switch, keyboard, and touchpad, all housed in a compact 1-U high and 19" rack-mountable unit.

The CL1008MUKIT boasts an auto-sensing feature for station position on daisy-chained installations, eliminating the need for manual DIP switch setting. It also supports daisy-chaining up to 11 ACS1208A KVM units, enabling control of up to 96 computers from a single console.

With the CL1008MUKIT, there's no need for additional software. Computer selection is made easy via pushbutton, hotkey, or on-screen display (OSD). The AutoScan feature allows for convenient monitoring of selected computers, and the hot pluggable design lets you add or remove computers without having to power down the switch.

Security is also a priority, with two-level password protection allowing up to four authorized users and an administrator to view and control the computers, with separate profiles for each. The console also features two-level logout - manual and timed - for added security.

The CL1008MUKIT supports firmware upgrades through flash ROM and offers PS/2 keyboard and mouse emulation, ensuring computers boot even when the console focus is elsewhere. The 17" RGB analog LCD display supports high XGA resolutions of up to 1280 x 1024 with 250cd/m(sq) brightness, providing clear, crisp visuals.

Finally, the CL1008MUKIT is compatible with USB servers/computers, supported with the included Intelligent KVM cables (2L5202UP/2L5203UP), making it a comprehensive solution for your multi-computer control needs.

Aten CL1008MUKIT Features

  • A single LCD console drawer with built-in KVM switch controls up to 8 computers directly
  • 8-port KVM switch, keyboard, touch pad, all in a 1-U high and 19"rack-mountable unit
  • Auto-sensing of station position on daisy chained installations - no need for manual DIP switch setting
  • Daisy-chain up to 11 ACS1208A KVM units and control up to 96 computers from a single console
  • No software required
  • Convenient computer selection via Pushbutton, Hotkey or OSD
  • AutoScan feature for monitoring selected computers
  • Hot pluggable - add or remove computers without having to power down the switch
  • Two level password protection - up to four authorized users and an administrator view and control the computers - separate profiles for each
  • Two level logout - manual and timed
  • Firmware upgrade through flash ROM
  • PS/2 keyboard and mouse emulation - computers boot even when the console focus is elsewhere
  • 17" RGB analog LCD display supporting high XGA resolutions of up to 1280 x 1024 with 250cdKit Depth/m(sq) brightness
  • USB Servers/Computers are supported with the Intelligent KVM cables (2L5202UP/2L5203UP)

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Consolidate control with this 8-port KVM switch, managing multiple servers easily.
  • Enjoy seamless operation with integrated LCD KVM console, saving space in your setup.
  • High compatibility: This KVM supports both USB and PS/2 interfaces for flexible use.
  • Achieve superior video quality with 1280x1024 resolution via this Aten KVM switch.
  • Simplify server management using hotkeys and OSD for quick KVM port selection.
  • This KVM solution includes all necessary KVM cables for immediate setup and use.

What's in the box:

  • Aten CL1008M 8-Port 17 " Single Rail LCD KVM Switch
  • 2x 4' 2L-5201P SPHD15 to VGA and PS/2 KVM Cable
  • 4x 6' 2L-5202UP USB KVM Cable
  • 4x 10' 2-L5203UP USB KVM Cable
  • Standard Rack Mount Kit
  • 6' Power Cord
  • User Manual
  • Aten 2 Year Limited Warranty
