Aten CL1016M 16-Port 17" LCD Integrated USB/PS2 Combo KVM Switch Console
SKU: ANCL1016M MFR: CL1016M
Earn VIP Reward PointsKey Features
- Maximize server room efficiency with this 16-port KVM switch, managing multiple systems.
- Enjoy seamless control with the integrated 17" LCD KVM console, saving valuable rack space.
- High compatibility: USB/PS2 combo KVM supports diverse server setups for easy integration.
- Experience superior video resolution (1280x1024) on this KVM, ideal for detailed work.
- Ensure reliable performance with Aten's durable KVM switch, backed by a 1-year warranty.
- Simplify upgrades with the KVM's firmware upgrade port, keeping your system up-to-date.
Temporarily On Backorder?Request assistance or get notified
Free Shipping
See Options
1
Protect your gear with Adorama Protect.* Learn more
2 Year
$209.99
3 Year
$299.99
4 Year
$359.99
Available to U.S. customers only.
Need help? Ask our experts.
Overview
Compare
Specs
Protection
Q&A
About Aten CL1016M
Under the umbrella of modern, sleek, and user-friendly tech solutions, the CL1016M 16-Port 17" LCD Integrated USB/PS2 Combo KVM Switch Console stands out as a superior choice for managing multiple computers. This stylish and compact unit offers seamless access to up to 16 computers from a single keyboard, video, and mouse (KVM) console, making it an ideal solution for complex, multi-computer systems.

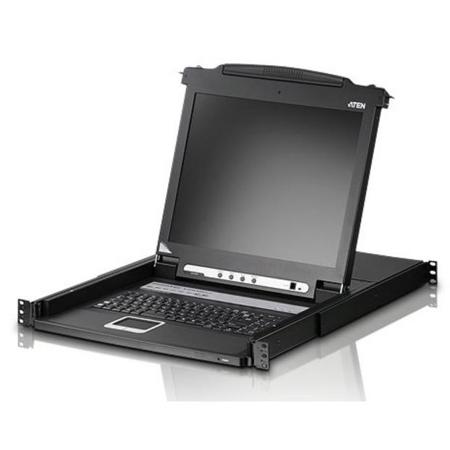

The CL1016M KVM Switch Console is not just a control unit, but a comprehensive solution that integrates a 17" LED-backlit LCD monitor, keyboard, and touchpad into a streamlined 1U rack-mountable sliding housing. This design not only saves space but also simplifies the setup process, making it a practical choice for both professional and personal use.
One of the key features of this modern KVM Switch Console is its daisy-chaining capability. With the potential to connect up to 15 additional KVM switches, you can control as many as 256 computers from a single KVM console. This feature makes the CL1016M an incredibly scalable solution, capable of growing with your needs.
In addition, the CL1016M boasts integrated USB and PS2 ports, allowing for the connection of additional peripherals such as printers and scanners. This enhances its functionality and flexibility, making it a truly versatile piece of equipment. Whether you're looking to streamline your workspace or manage a complex system of computers, the CL1016M 16-Port 17" LCD Integrated USB/PS2 Combo KVM Switch Console is a robust and reliable solution.
Aten CL1016M Features
- Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
- KVM console with 17" LED-backlit LCD monitor in a sliding housing with top and bottom clearance for smooth operation in a 1U high system rack
- LCD module rotates up to 115deg. for a more comfortable viewing angle
- Standard rack mount kit included - optional Easy Rack Mounting (single person installation) rack mount kit available (requires separate purchase)
- Daisy-chain up to 15 additional units - control up to 256 computers
- No software required - convenient computer selection via hotkeys and mouse driven intuitive on screen display (OSD) menus
- Auto Scan feature for monitoring user-selected computers
- Broadcast support - commands from the keyboard can be broadcast to all available computers on the installation
- Hot pluggable - add or remove computers without having to power down the switch
- Two level password security - only authorized users view and control the computers; up to four users plus an administrator with separate profiles for each
- Video settings of attached computers are automatically adjusted for optimal output to the LCD monitor
- Upgradable firmware
- Keyboard Language support: English (US), English (UK),French, German, German (Swiss), Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish and Traditional Chinese
- Multiplatform support: Windows 2000/XP/Vista, Linux and FreeBSD
Warranty Information
This product has a limited warranty of 12 months.
