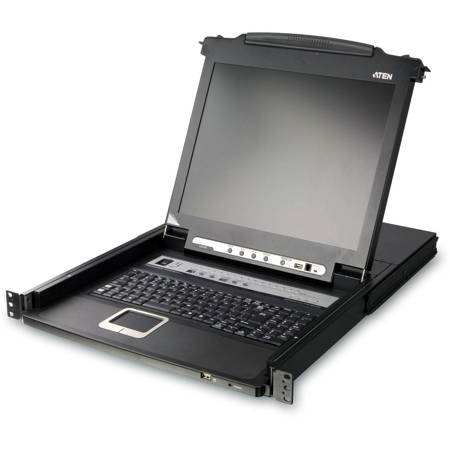

Aten CL5716M 16-Port 17" Single Rail LCD KVM Switch Console
SKU: ANCL5716M MFR: CL5716M
Earn VIP Reward Points
Key Features
- Manage up to 16 computers with this Aten KVM switch, saving space and resources efficiently.
- Enjoy high-resolution video (1280x1024) at 75Hz via this KVM console for clear, precise visuals.
- The integrated 17" LCD KVM console offers a space-saving solution for server room management.
- Easily switch between ports using hotkeys, OSD, or pushbuttons on this versatile KVM switch.
- This KVM switch supports both PS/2 and USB keyboards/mice for broad compatibility.
- Cascade up to 31 additional KVM switches to control up to 512 computers from one console.
Temporarily On Backorder?Request assistance or get notified
Free Shipping
See Options
Qty
1
Protect your gear with Adorama Protect.* Learn more
2 Year
$209.99
3 Year
$299.99
4 Year
$359.99
Available to U.S. customers only.
Need help? Ask our experts.
Overview
Compare
Specs
Protection
Q&A
About Aten CL5716M
An epitome of modern efficiency, the CL5716M 16-Port 17" Single Rail LCD KVM Switch Console is a sophisticated and stylish solution for IT professionals seeking to streamline their server room operations. This sleek, compact unit is not just a space-saver with its 1U rack-mountable design, but it also offers a user-friendly interface that simplifies the management of multiple computers.
The console features a high-resolution 17" LCD screen, providing crystal-clear visibility for effortless monitoring and switching between up to 16 connected computers. The integrated LED-backlit display ensures a bright, energy-efficient viewing experience, even in challenging lighting conditions.
Designed with versatility in mind, the CL5716M supports both PS/2 and USB KVM connections, allowing for seamless integration with a wide range of computer systems. The convenience of a built-in keyboard and touchpad eliminates the need for additional peripherals, further reducing clutter and enhancing the streamlined aesthetic of your workspace.
For environments that demand control over an extensive array of servers, the CL5716M can be daisy-chained with up to 31 additional KVM switches. This cascading capability enables the management of up to 512 computers from a single console, making it an ideal choice for large data centers and complex network infrastructures.
The Single Rail design of the console ensures that the display can be accessed with ease, sliding out smoothly when needed and tucking away discreetly when not in use. This feature, combined with its robust construction, makes the CL5716M a reliable and long-lasting addition to any server room.
Choose the CL5716M 16-Port 17" Single Rail LCD KVM Switch Console for a modern, efficient, and user-friendly solution to manage multiple computer systems with elegance and precision.
Aten CL5716M Features
- Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
- Integrated KVM console with 17" or 19" LED-backlit LCD monitor in a Slideaway housing
- Available with or without Fingerprint Identification Reader
- Space saving technology - up to two consoles (one bus) control up to 16 computers
- Daisy-chain up to 31 additional units - control up to 512 computers from a single console (With compatible KVM Switches: ACS1208A, ACS1216A, CS1708A,CS1716A)
- Dual Interface - supports computers and console with PS/2 or USB keyboards and mice
- LCD module USB port allows each computer to access USB peripherals
- LCD module rotates up to 115 degrees for a more comfortable viewing angle
- Multiplatform support - Windows, Linux, Mac, and Sun
- Supports multimedia USB keyboards for PC, Mac and Sun
- Auto PS/2 and USB interface detection
- Keyboard and mouse emulation (PS/2 and USB) for smooth switching and simultaneous booting of multiple computers even when the console focus is elsewhere
- Supports external USB mouse
- Superior video quality - supports resolutions up to 1280 x 1024 at 75Hz
- No software required - convenient computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menus
- Auto-senses station's position on daisy-chained installations; no need for manual dip switch setting; front panel led indicates station's position
- Port names automatically reconfigured when station sequence is changed
- Two level password security - only authorized users can view and control computers
- Supports one administrator and four user accounts with separate profiles
- Auto Scan mode enables continuous monitoring of user-selected computers
- Broadcast support - commands from the keyboard can be broadcast to all available computers on the installation
- Hot pluggable - add or remove computers without having to power down the switch
- Beeper on/off via hotkey and OSD
- Firmware upgrades to all the chained KVM switches at the same time via the daisy-chain cable
- Keyboard Language support: English (US), English (UK), French, German, German (Swiss), Greek, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish and Traditional Chinese
Warranty Information
This product has a limited warranty of 36 months.
