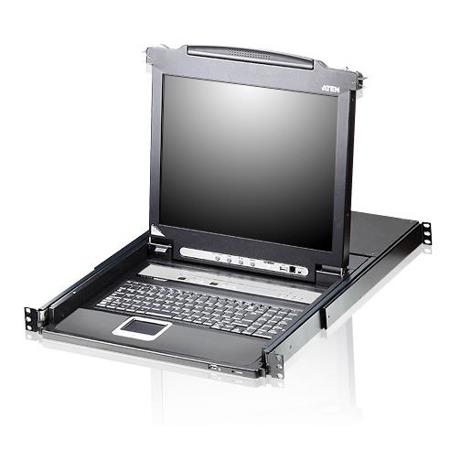

Aten CL5716N 16-port 19" LCD Slideaway LCD KVM Switch Console

SKU: ANCL5716N MFR: CL5716N
Earn VIP Reward Points

Key Features

  • Manage up to 16 computers with this Aten KVM switch, saving space and boosting productivity.
  • Enjoy seamless control with the integrated 19" LCD console, offering a clear display for all tasks.
  • Cascade up to 512 computers, making this KVM switch ideal for growing server room needs.
  • Benefit from flexible port selection via pushbutton, hotkeys, or OSD for quick access.
  • This KVM console supports high video resolution (1280 x 1024) for crisp, detailed visuals.
  • Simplify your setup with included KVM cable sets and a user-friendly quick start guide.
See More Product Details
Temporarily On Backorder?Request assistance or get notified
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$209.99

3 Year

$299.99

4 Year

$359.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Aten CL5716N Specifications

  • Computer Connections

    Direct: 16
    Max: 512 ( via Cascade)

  • Port Selection

    Pushbutton, Hotkeys, OSD

  • Console Connectors

    Keyboard, Mouse, and Monitor: SPHD-18 Male
    Mouse: USB Type-A Female (White)
    Flash ROM Upgrade: RJ-11 Female

  • Connectors: Computer/KVM

    16x SPHD-15 Female (Yellow)

  • Connectors: Power

    3-prong AC Socket

  • Connectors: USB

    USB Type-A Female (White)

  • Switches: Power

    Rocker

  • Switches: LCD Power

    Pushbutton

  • Switches: LCD Adjustment

    4x Pushbuttons

  • Switches: Port Selection

    2x Pushbuttons [port], 2x Pushbuttons[station]

  • Switches: F/W Upgrade

    Slide

  • Switches: Reset

    Semi-recessed Push Button

  • LEDs: Port ID

    2x 7-segment LED [Yellow]

  • LEDs: Power On

    (Dark Green)

  • LEDs: LCD Power

    (Orange)

  • LEDs: Station ID

    2x 7-segment LED [Yellow]

  • LEDs: On Line

    16 (Orange)

  • Video Resolution

    1280 x 1024 at 75Hz (DDC2B)

  • Emulation

    Keyboard / Mouse: PS/2, USB

  • Scan Interval

    1 - 255 sec.

  • Amps

    1A

  • Voltage

    100 - 240 VAC

  • Power Consumption

    27.5W: 95 BTU/h,, 23W: 78 BTU/h

  • Storage Temperature

    -20 to 60 deg. C / -4 to 140 deg. F

  • Humidity

    0 to 80% RH, Noncondensing

  • Operation Temperature

    0 to 50 deg. C / 32 to 122 deg. F

  • Dimensions (W x H x D)

    18.9 x 1.7 x 24.9" / 48.01 x 4.32 x 63.25cm

  • Weight

    31.3lbs / 14.20kg
    With accessories: 32.3lbs / 14.65kg

  • UPC Code

    672792398124

About Aten CL5716N

The CL5716 Slideaway LCD KVM Switch is a control unit that allows access to multiple computers from a single PS/2 or USB KVM (keyboard, video and mouse) console. A single CL5716 can control up to 16 computers. As many as 31 additional KVM switches can be daisy-chained to the CL5716, so that up to 512 computers can all be controlled from a single KVM console. The CL5716 offers a space-saving, streamlined approach to KVM switch technology by integrating a keyboard, 19" LED-backlit LCD monitor and touchpad in a 1U rack-mountable sliding housing.

Aten CL5716N Features

  • Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
  • Integrated KVM console with 19" LED-backlit LCD monitor in a Slideaway housing
  • Available with or without Fingerprint Identification Reader
  • Space saving technology - up to two consoles (one bus) control up to 16 computers
  • Daisy-chain up to 31 additional units - control up to 512 computers from a single console (With compatible KVM Switches: ACS1208A, ACS1216A, CS1708A,CS1716A)
  • Dual Interface - supports computers and console with PS/2 or USB keyboards and mice
  • LCD module USB port allows each computer to access USB peripherals
  • LCD module rotates up to 115deg. for a more comfortable viewing angle
  • Multiplatform support - Windows, Linux, Mac, and Sun
  • Supports multimedia USB keyboards for PC, Mac and Sun
  • Auto PS/2 and USB interface detection
  • Keyboard and mouse emulation (PS/2 and USB) for smooth switching and simultaneous booting of multiple computers even when the console focus is elsewhere
  • Supports external USB mouse
  • Superior video quality - supports resolutions up to 1280 x 1024 at 75Hz
  • No software required - convenient computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menus
  • Auto-senses station's position on daisy-chained installations; no need for manual dip switch setting; front panel led indicates station's position
  • Port names automatically reconfigured when station sequence is changed
  • Two level password security - only authorized users can view and control computers
  • Supports one administrator and four user accounts with separate profiles
  • Auto Scan mode enables continuous monitoring of user-selected computers
  • Broadcast support - commands from the keyboard can be broadcast to all available computers on the installation
  • Hot pluggable - add or remove computers without having to power down the switch
  • Beeper on/off via hotkey and OSD
  • Firmware upgrades to all the chained KVM switches at the same time via the daisy-chain cable
  • Keyboard Language support: English (US), English (UK), French, German, German (Swiss), Greek, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish and Traditional Chinese

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Manage up to 16 computers with this Aten KVM switch, saving space and boosting productivity.
  • Enjoy seamless control with the integrated 19" LCD console, offering a clear display for all tasks.
  • Cascade up to 512 computers, making this KVM switch ideal for growing server room needs.
  • Benefit from flexible port selection via pushbutton, hotkeys, or OSD for quick access.
  • This KVM console supports high video resolution (1280 x 1024) for crisp, detailed visuals.
  • Simplify your setup with included KVM cable sets and a user-friendly quick start guide.

What's in the box:

  • Aten CL5716N 16-port 19 " LCD Slideaway LCD KVM Switch Console
  • Standard Rack Mount Kit
  • 2x Custom KVM Cable Sets (2L5201P / 2L5201U)
  • 5 " USB / PS/2 Console Cable
  • Firmware Upgrade Cable
  • 6' Power Cord
  • 4' Grounding Wire
  • User Manual
  • Quick Start Guide
  • Aten 2 Year Limited Warranty
