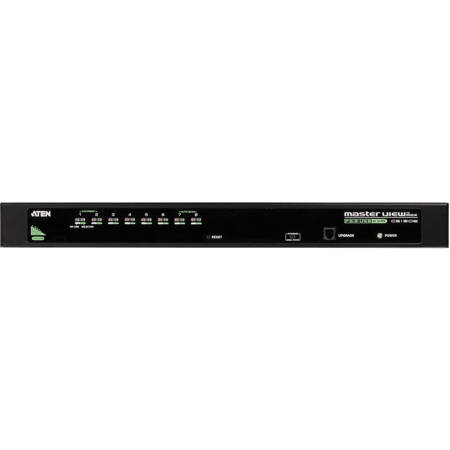

Aten CS1308 8-Port PS/2 USB KVM Switch
See all Aten items

Aten CS1308 8-Port PS/2 USB KVM Switch

SKU: ANCS1308

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Aten CS1308 Specifications

  • Computer Connections: Direct

    8

  • Computer Connections: Max

    64 (via cascade)

  • Port Selection

    OSD, Hotkeys, Pushbuttons

  • Connectors: Console Port

    Keyboard/Video/Mouse: SPHD-18 Male(Yellow)

  • Connectors: KVM Ports

    Keyboard/Video/Mouse: 8x SPHD-15 Female(Yellow)

  • Connectors: FW Upgrade

    RJ-11 Female (Black)

  • Connectors: Power

    DC Jack

  • Switches: Port

    8x Pushbutton

  • Switches: F/W Upgrade

    Slide

  • LEDs: On Line

    8x Orange

  • LEDs: Selected

    8x Green

  • LEDs: Power

    Dark Green

  • Emulation: Keyboard/Mouse

    PS/2, U

  • Video

    2048 x 1536, DDC2B

  • Scan Interval

    1-255 Seconds

  • Power Consumption

    DC 5.3V, 5W

  • Operating Temperature

    0 to 50 deg. C / 32 to 122 deg. F

  • Storage Temperature

    -20 to 60 deg. C / -4 to 140 deg. F

  • Humidity

    0-80% RH, Non-condensing

  • Housing

    Metal

  • Dimensions (L x W x H )

    43.72 x 16.13 x 4.40cm / 17.21 x 6.35 x 1.73"

  • Weight

    1.89kg / 4.17lbs

  • UPC Code

    672792106569

About Aten CS1308

The CS1308 / CS1316 KVM switch allows access and control up to 64 or 256 computers from a single console (keyboard, mouse and monitor). As many as 16 additional switches can be cascaded bringing the total number of connected computers to 64 or 256 computers that can be controlled from a single keyboard-monitor- mouse console. The switch supports both USB and PS/2 connections for the console and computers.

Aten CS1308 Features

  • One USB-PS/2 console controls 8/16 computers
  • Cascade up to 2 levels - control up to 64 or 256 computers
  • Dual Interface - supports computers with PS/2 or USB keyboards and mice
  • Multiplatform support - Windows, Linux, Mac, and Sun
  • Video DynaSync - Exclusive ATEN technology eliminates boot- up display problems and optimizes resolution when switching between ports
  • Supports USB keyboards for PC, Mac and Sun
  • Auto PS/2 and USB interface detection
  • USB or PS/2 keyboard and mouse emulation - computers boot even when the console focus is elsewhere
  • Superior video quality - up to 2048 x 1536, DDC2B
  • Computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menu
  • Two level password security - only authorized users view and control computers, up to four users and an administrator with a separate profile for each
  • Auto Scan feature for monitoring user-selected computers
  • Hot pluggable - add or remove computers without having to power down the switch
  • Buzzer on/off via hotkey and OSD
  • Firmware upgradeable
  • No software installation required
  • Designed for desktop or rack mount (19" system rack, 1U)

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • One USB-PS/2 console controls 8/16 computers
  • Cascade up to 2 levels - control up to 64 or 256 computers
  • Dual Interface - supports computers
  • Multiplatform support - Windows, Linux, Mac, and Sun
  • Supports USB keyboards for PC, Mac and Sun
  • Auto PS/2 and USB interface detection

What's in the box:

  • Aten CS1308 8-Port PS/2 USB KVM Switch with Rack Mount Kit
  • Console Cable
  • Firmware Upgrade Cable
  • Foot Pad Set (4 Pads)
  • Power Adapter
  • User Instructions
  • Aten 3 Year Warranty
