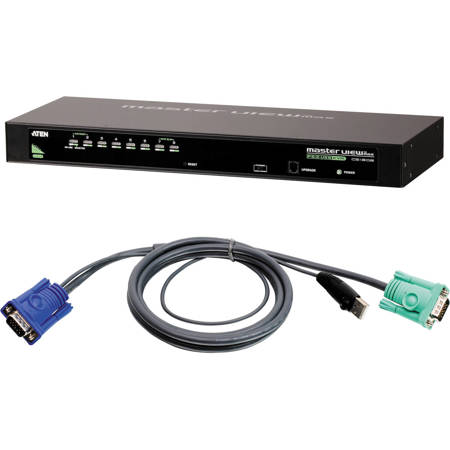

Aten CS1308 8-Port USB/PS2 KVM Switch Kit with 8 USB KVM Cables

SKU: ANCS1308KT MFR: CS1308KIT
Earn VIP Reward Points

Key Features

  • Manage up to 8 computers with this Aten KVM switch, saving space and boosting productivity.
  • Enjoy high-resolution video up to 2048 x 1536 via this KVM cable, perfect for detailed work.
  • The included KVM cables ensure a reliable connection between your computers and the switch.
  • Use hotkeys, OSD, or pushbuttons for easy KVM switch port selection, streamlining your workflow.
  • This KVM switch supports both USB and PS/2 keyboards/mice, offering broad compatibility.
  • Cascade up to 8 additional KVM switches for control of up to 64 computers, expanding access.
See More Product Details
Temporarily On Backorder?Request assistance or get notified
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$79.99

3 Year

$109.99

4 Year

$129.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Aten CS1308KIT Specifications

  • Switch: Computer Connections

    Direct: 8
    Max: 64 (via cascade)

  • Switch: Port Selection

    OSD, Hotkeys, Pushbuttons

  • Switch: Connectors

    Console Port: Keyboard/Video/Mouse - SPHD-18 Male(Yellow)
    KVM Ports: Keyboard/Video/Mouse - 8x SPHD-15 Female(Yellow)
    FW Upgrade: RJ-11 Female (Black)
    Power: DC Jack

  • Switch

    Port: 8x Pushbutton
    F/W Upgrade: Slide

  • Switch: LEDs

    On Line: 8x Orange
    Selected: 8x Green
    Power: Dark Green

  • Switch: Emulation

    Keyboard/Mouse: PS/2, U

  • Switch: Video

    2048 x 1536, DDC2B

  • Switch: Scan Interval

    1-255 Seconds

  • Switch: Power Consumption

    DC 5.3V, 5W

  • Switch: Operating Temperature

    0 to 50 deg. C / 32 to 122 deg. F

  • Switch: Storage Temperature

    -20 to 60 deg. C / -4 to 140 deg. F

  • Switch: Humidity

    0-80% RH, Non-condensing

  • Switch: Housing

    Metal

  • KVM Cable: PC Connectors

    2L5201U: Monitor - HDB-15 male, Keyboard and Mouse - USB Type A male
    2L5202U: Monitor - HDB-15 male, Keyboard and Mouse - USB Type A male
    2L5203U: Monitor - HDB-15 male, Keyboard and Mouse - USB Type A male

  • KVM Cable: Console Connectors

    2L5201U: Switch - SPHD-15 male
    2L5203U: Switch - SPHD-15 male
    2L5202U: Switch - SPHD-15 male

  • KVM Cable: Length

    2L5201U: 4' / 1.22m
    2L5202U: 6' / 1.83m
    2L5203U: 10' / 3.05m

  • Dimensions (L x W x H)

    Switch: 43.72 x 16.13 x 4.40cm / 17.21 x 6.35 x 1.73"

  • Weight

    Switch: 1.89kg / 4.17lbs

  • UPC Code

    672792503320

About Aten CS1308KIT

Make managing multiple computers a seamless experience with the CS1308 8-Port USB/PS2 KVM Switch Kit. Designed for efficiency and convenience, this high-quality KVM switch enables you to access and control up to eight computers from a single console, including a keyboard, mouse, and monitor. The versatility of the CS1308 extends even further, as it supports both USB and PS/2 connections, ensuring compatibility with a wide array of devices and systems.

Crafted with durability in mind, the CS1308 KVM switch is a reliable solution for IT professionals, multimedia enthusiasts, and anyone who requires a streamlined workspace. The switch is user-friendly, making it easy to switch between computers with minimal effort. This efficiency is further enhanced by the inclusion of eight USB cables in varying lengths (four 6-foot 2L5202U cables, two 10-foot 2L5203U cables, and two 4-foot 2L5201U cables), providing the flexibility to connect to computers in different locations without the need for additional purchases.

For those who require control over an even larger array of computers, the CS1308 KVM switch can be cascaded with up to 16 additional switches. This scalability allows for the control of up to 64 computers, making it an ideal choice for server rooms and businesses with extensive computer networks.

The CS1308 KVM switch is not only robust and efficient but also compatible with multiple operating systems, including Windows, Mac, and Linux, ensuring a broad range of use cases. Whether you're managing a complex server environment or simply looking to declutter your home office setup, the CS1308 8-Port USB/PS2 KVM Switch Kit is the sophisticated solution you need to take control of your computing needs.

Aten CS1308KIT Features

  • One USB-PS/2 console controls 8/16 computers
  • Cascade up to 2 levels - control up to 64 or 256 computers
  • Dual Interface - supports computers with PS/2 or USB keyboards and mice
  • Multiplatform support - Windows, Linux, Mac, and Sun
  • Video DynaSync - Exclusive ATEN technology eliminates boot- up display problems and optimizes resolution when switching between ports
  • Supports USB keyboards for PC, Mac and Sun
  • Auto PS/2 and USB interface detection
  • USB or PS/2 keyboard and mouse emulation - computers boot even when the console focus is elsewhere
  • Superior video quality - up to 2048 x 1536, DDC2B
  • Computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menu
  • Two level password security - only authorized users view and control computers; up to four users and an administrator with a separate profile for each
  • Auto Scan feature for monitoring user-selected computers
  • Hot pluggable - add or remove computers without having to power down the switch
  • Buzzer on/off via hotkey and OSD
  • Firmware upgradeable
  • No software installation required
  • Designed for desktop or rack mount (19" system rack, 1U)

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Manage up to 8 computers with this Aten KVM switch, saving space and boosting productivity.
  • Enjoy high-resolution video up to 2048 x 1536 via this KVM cable, perfect for detailed work.
  • The included KVM cables ensure a reliable connection between your computers and the switch.
  • Use hotkeys, OSD, or pushbuttons for easy KVM switch port selection, streamlining your workflow.
  • This KVM switch supports both USB and PS/2 keyboards/mice, offering broad compatibility.
  • Cascade up to 8 additional KVM switches for control of up to 64 computers, expanding access.

What's in the box:

  • Aten CS1308 8-Port USB/PS2 KVM Switch with Rack Mount Kit- 4x 6' 2L5202U Cable
  • 2x 10' 2L5203U Cable
  • 2x 4' 2L5201U Cable
  • Console Cable
  • Firmware Upgrade Cable
  • Grounding Wire
  • Foot Pad Set (4 Pads)
  • Power Adapter (AC Models)
  • User Manual
  • Quick Start Guide
  • Aten 3 Year Limited Warranty
