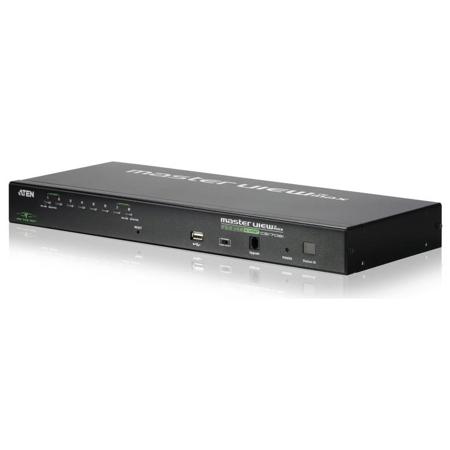

Aten CS1708i-TAA 8-Port PS/2-USB KVM Switch with TAA Compliance

SKU: ANCS1708ITAA MFR: CS1708I-TAA
Earn VIP Reward Points

Key Features

  • Manage up to 8 computers with this TAA compliant KVM switch, saving space and resources.
  • Enjoy high-resolution video up to 2048 x 1536 via this KVM cable and switch setup.
  • Control multiple servers efficiently using the Aten KVM switch's intuitive OSD interface.
  • Remotely access your systems with secure connectivity through the integrated RJ45 LAN port.
  • This 8-port KVM switch supports both PS/2 and USB keyboards and mice for flexibility.
  • Simplify your workspace with this Aten KVM switch, designed for easy rack mounting.
See More Product Details
Temporarily On Backorder?Request assistance or get notified
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$174.99

3 Year

$224.99

4 Year

$299.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Aten CS1708i-TAA Specifications

  • Computer Connections

    Direct: 8
    Daisy Chain or Cascading: 128 (via Daisy Chain)

  • Port Selection

    OSD; Hotkey, Pushbutton

  • Console Connectors

    Keyboard, Mouse, and Monitor: SPHD-18 Male

  • CPU Connectors

    Keyboard, Mouse, and Monitor: 8x SPHD-17 Female

  • Daisy Chain

    DB-25 Male

  • Connectors: Power

    DC Jack

  • Connectors: LAN

    RJ45 Female

  • Connectors: USB

    USB Type A

  • Switches: Reset

    Semi-recessed pushbutton

  • Switches: Port Selection

    8x Pushbutton

  • Switches: F/W Upgrade

    Slide

  • LEDs: On Line

    8x Orange

  • LEDs: Selected

    8x Green

  • LEDs: Station ID

    2x 7 segment(Orange)

  • LEDs: Power On

    Dark Green

  • LEDs: 10/100 Mbps

    Orange/Green-at LAN port

  • Emulation: Keyboard

    USB, PS2

  • Emulation: Mouse

    USB, PS2

  • Video Performance: Local

    2048 x 1536, DDC2B

  • Video Performance: Remote

    1600 x 1200 at 60Hz/24bit color depth

  • Scan Interval

    1-255 sec.

  • Power Consumption

    DC 5.3V, 9.5W: 34BTU/h

  • Power Adapter

    OAD8-0605-24EG

  • Humidity

    0-80% RH, Non-condensing

  • Operating Temperature

    32 to 122 deg. F / 0 to 50 deg. C

  • Storage Temperature

    -4 to 140 deg. F / -20 to 60 deg. C

  • Housing

    Metal

  • Unit Dimension

    17.0 x 6.3 x 1.7" / 43.18 x 16.00 x 4.32cm

  • Unit Weight

    6.2lbs / 2.81kg

  • UPC Code

    881317510877

About Aten CS1708i-TAA

The CS1708i KVM switches is an IP-based KVM control unit that allows both local and remote operators to monitor and access multiple computers. Remote users access the switches over the Internet by means of a web browser using TCP/IP for its remote communications protocol. The CS1708i supports up to 32 concurrent user logins for single-bus computer access. A built-in feature that resembles an Internet chat program - the Message Board - lets them communicate with each other. The ability to exchange information in real time allows them to cooperatively manage the installation in a smooth and efficient manner.

Among the CS1708i other outstanding features, a Panel Array Mode provides the ability to simultaneously monitor up to 8 servers per switch; while the Mouse DynaSync feature automatically synchronizes the local and remote mouse pointer movements for perfect alignment regardless of what the mouse acceleration settings on the server are.

The CS1708i supports the highest security protocols, such as 128 bit SSL encryption for the browser and RC4 128 bit encryption for secure keyboard, mouse and video data transmission. For easier and more efficient user management integration, the CS1708i also supports authentication and authorization via remote servers, such as RADIUS, LDAP, LDAPS and MS Active Directory. These powerful features not only help administrators manage their server room in an efficient and flexible manner, they provide a cost effective management solution for the SMB sector.

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Manage up to 8 computers with this TAA compliant KVM switch, saving space and resources.
  • Enjoy high-resolution video up to 2048 x 1536 via this KVM cable and switch setup.
  • Control multiple servers efficiently using the Aten KVM switch's intuitive OSD interface.
  • Remotely access your systems with secure connectivity through the integrated RJ45 LAN port.
  • This 8-port KVM switch supports both PS/2 and USB keyboards and mice for flexibility.
  • Simplify your workspace with this Aten KVM switch, designed for easy rack mounting.

What's in the box:

  • Aten CS1708i-TAA 8-Port PS/2-USB KVM Switch with TAA Compliance
  • 2x Custom KVM Cable Cables (PS/2/ USB)
  • Console Cable
  • Firmware Upgrade Cable
  • Grounding Wire
  • Rack Mount Kit
  • Foot Pad Set (4 pcs)
  • Power Adapter
  • User Manual
  • Quick Start Guide
  • Software CD
  • Aten 3 Year Limited Warranty
