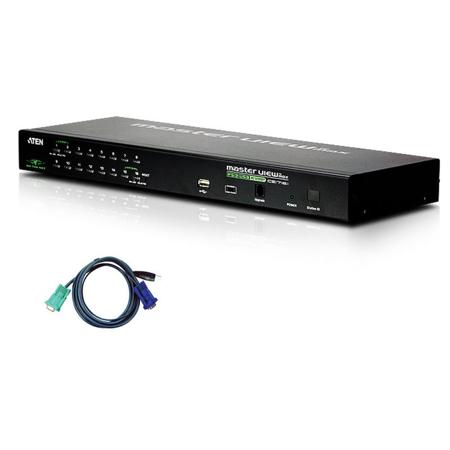

Aten CS1716i 16-Port PS/2-USB KVM Over IP Switch with 16 USB Cables

With the advanced CS1716i 16-Port PS/2-USB KVM Over IP Switch, you can efficiently monitor and access multiple computers both locally and remotely. This sophisticated device utilizes TCP/IP as its remote communications protocol, allowing users to access the switch over the internet using a web browser.

The CS1716i supports up to 32 concurrent user logins for single-bus computer access, making it a reliable solution for managing multiple systems. Its unique Message Board feature, similar to an internet chat program, enables users to exchange information in real time, facilitating smooth and efficient cooperative management.

This user-friendly switch also boasts a Panel Array Mode, allowing simultaneous monitoring of up to 16 servers per switch. The Mouse DynaSync feature ensures perfect alignment of local and remote mouse pointer movements, regardless of server mouse acceleration settings.

For enhanced security, the CS1716i supports top-tier protocols such as 128-bit SSL encryption for the browser and RC4 128-bit encryption for secure keyboard, mouse, and video data transmission. It also offers authentication and authorization via remote servers like RADIUS, LDAP, LDAPS, and MS Active Directory.

The CS1716i is designed for easy and efficient user management integration, making it a cost-effective solution for the SMB sector. It offers convenient computer selection via front panel pushbuttons, hotkeys, and multilingual on-screen display (OSD) menus.

The switch is also firmware upgradable and supports backup and restoration of configuration and user account settings. It features an auto scan feature for monitoring user-selected computers and a broadcast mode for simultaneous operations on all selected computers.

The CS1716i is IPv6 capable and offers a user-friendly interface with browser-based and AP GUIs, along with a menu-driven OSD for the local console. It supports multiple platforms (Windows, Mac OS X, Linux, Sun) and browsers (IE, Mozilla, Firefox, Safari, Opera, Netscape).

The switch also supports secure keyboard/mouse/video transmission via RC4 128-bit encryption and SSL 128-bit data encryption and RSA 1024-bit certificates for secure user logins from a browser.

The CS1716i is a 16-port remote access KVM switch that allows you to monitor and control up to 16 computers from a single KVM console. It supports daisy chaining of up to 15 additional units, enabling control of up to 256 computers from a single console.

The switch is hot pluggable, allowing you to add or remove computers without having to power down the switch. It supports multiple platforms (Windows, Linux, Mac, and Sun) and offers a front panel USB hub for connected computers to access USB peripherals.

The CS1716i supports PS/2 or USB keyboard and mouse computer connections with automatic interface detection and offers superior video quality - up to 2048 x 1536 for the local console and up to 1600 x 1200 at 60Hz / 24-bit color depth for remote sessions.

Finally, the CS1716i is rack-mountable in a 19" (1U) system rack, making it a versatile and space-efficient solution for your server room.
