Aten CS1732B 2-Port USB 2.0 KVMP Switch with Audio Support
See all Aten items

Aten CS1732B 2-Port USB 2.0 KVMP Switch with Audio Support, Cables Included

SKU: ANCS1732B

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Aten CS1732B Specifications

  • Computer Connections

    2

  • Port Selection

    OSD; Hotkeys; Pushbuttons; Mouse

  • Connectors: Console Ports

    Keyboard: 1x USB Type A Female (White)
    Video: 1x HDB-15 Female (Black)
    Mouse: 1x USB Type A Female (White)
    Speaker: 2x Mini Stereo Jack Female(Green)
    Microphone: 2x Mini Stereo Jack Female (Pink)

  • Connectors: KVM Ports

    Keyboard/Video/Mouse: 2x SPHD-15 Female (Yellow)
    Speaker: 2x Mini Stereo Jack Female (Green)
    Microphone: 2x Mini Stereo Jack Female (Pink)

  • Connectors: USB Hub

    2x USB Type A Female (Black)

  • Connectors: F/W Upgrade

    1x 4-conductor 3.5mm Jack (Black)

  • Connectors: Power

    1x DC Jack

  • Switches

    Selected: 2x Pushbutton

  • LEDs

    On Line/ Selected: 2 (Orange)
    USB Link: 2 (Green)

  • Emulation

    Keyboard/Mouse: USB

  • Video

    2048 x 1536 at 60Hz; DDC2B

  • Scan Interval

    1-255 seconds (Default: 5 sec.)

  • Power Consumption

    DC5.3V, 3.1W

  • Operating Temperature

    0 to 50 deg. C / 32 to 122 deg. F

  • Storage Temperature

    -20 to 60 deg. C / -4 to 140 deg. F

  • Humidity

    0 to 80% RH, Non-densing

  • Housing

    Metal

  • Dimensions (L x W x H)

    KVMP Switch: 5.5 x 3.4 x 2.2" / 13.97 x 8.64 x 5.59cm

  • Weight

    KVMP Switch: 1.2lbs / 0.54kg

  • UPC Code

    672792112249

About Aten CS1732B

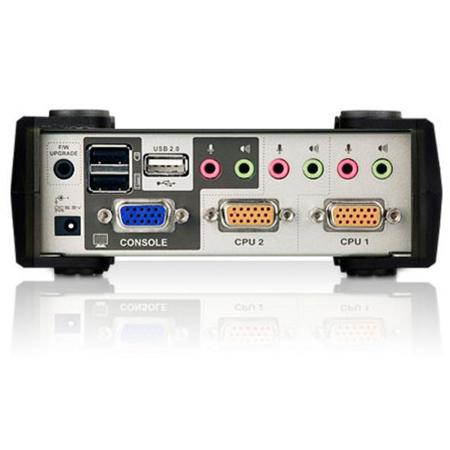

The CS1732B is 2-port KVM switch combined with a 2-port USB 2.0 hub. As a KVM switch, it allows users to access two computers from a single keyboard, monitor and mouse console. There are four methods to obtain instant access to any computer in your installation: Pushbuttons, Hotkeys, OSD and mouse.

Aten CS1732B Features

  • 2-port KVM switch with USB 2.0 support and 2.1 surround sound audio
  • One console controls two computers and two additional USB devices
  • 2-port USB 2.0 hub built in
  • USB 2.0 compliant
  • Dual interface - supports computers with PS/2 or USB keyboard and mouse configurations
  • Audio enabled - full bass response provides a rich experience for 2.1 surround sound systems
  • Console audio ports on front panel for easy access - ideal for IP phone users
  • Independent switching of KVM, USB, and Audio focus
  • Superior video quality; 2048 x 1536; DDC2B
  • Supports widescreen resolutions
  • Computer selection via front panel pushbuttons, multilingual OSD (On Screen Display), hotkeys and mouse
  • Multiplatform support - Windows, Mac, and Sun
  • Console mouse port emulation / bypass feature supports full mouse driver and multifunction mice
  • Video DynaSync - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution
  • Complete keyboard emulation for error-free booting
  • Sun/Mac keyboard support and emulation
  • Auto Scan Mode for monitoring all computers
  • LED Display for easy status monitoring
  • Easy installation no software required
  • Firmware upgradeable
