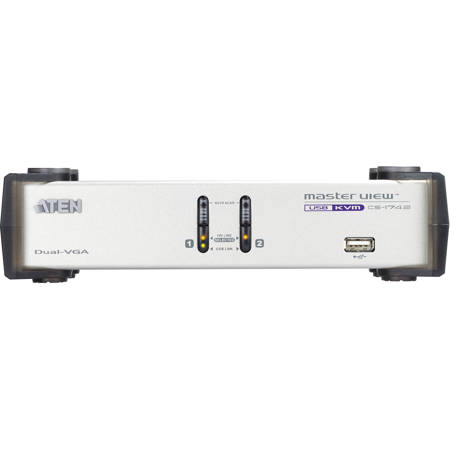

Aten CS1742 2-Port USB Dual-View KVMP Switch with Audio Support
See all Aten items

Aten CS1742 2-Port USB Dual-View KVMP Switch with Audio Support, Cables Included

SKU: ANCS1742
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Aten CS1742 Specifications

  • Computer Connections

    2

  • Port Selection

    Hotkeys; Pushbuttons

  • USB Port/ Audio Port Selection

    Hotkey

  • Connectors: Console Ports

    Keyboard: 1x USB Type A Female (White)
    Video: 2x HDB-15 Female (Black)
    Mouse: 1x USB Type A Female (White)
    Speaker: 1x Mini Stereo Jack Female(Green)
    Microphone: 1x Mini Stereo Jack Female (Pink)

  • Connectors: KVM Ports

    Speaker/Microphone/Video 1: 2 x SPHD-15 Male (Yellow)
    Keyboard/Video 2/Mouse: 2x SPHD-15 Female (Yellow)

  • Connectors: USB Hub

    2x USB Type A Female (Black)

  • Connectors: F/W Upgrade

    1x RJ11 Female (Black)

  • Connectors: Power

    1x DC Jack (Black)

  • Switches

    Port: 2x Pushbutton

  • LEDs

    On Line/Selected: 2 (Orange)
    USB Link: 2 (Green)

  • Emulation

    Keyboard/Mouse: USB

  • Video

    2048 x 1536; DDC2B

  • Scan Interval

    1 to 99 seconds

  • Power Consumption

    DC5V, 1.25W

  • Operating Temperature

    0 to 50 deg. C / 32 to 122 deg. F

  • Storage Temperature

    -20 to 60 deg. C / -4 to 140 deg. F

  • Humidity

    0 to 80% RH, Non-densing

  • Housing

    Metal

  • Dimensions (L x W x H)

    21.00 x 8.80 x 5.55cm / 8.27 x 3.46 x 2.19"

  • Weight

    0.82kg / 1.81lbs

  • UPC Code

    672792151651

About Aten CS1742

CS1742 2 Port KVM Switch integrates functions of video signal dual output and USB KVM switches. It allows a computer with dual-screen support to pair with two VGA/SVGA/Multisync displays via a USB keyboard and mouse. Furthermore, CS1742 provides 2 USB ports, allowing each server to share any USB peripheral device that is connected to this HUB.

Aten CS1742 Features

  • Allows one USB keyboard, USB mouse, speakers, microphone and two displays to control two dual display computers
  • 2 port USB Hub built in
  • Multiplatform support: compatible with all operation platforms PC (Windows, Linux and most others), Mac and Sun
  • With speaker and microphone support
  • Bi-directional switching and flexible interoperability; switch permits independent PC, independent peripheral, and independent audio function, regardless of KVM switch focus
  • Buzzer On/Off via hotkey
  • Keyboard and mouse emulation for error free booting
  • Computer selection via front panel pushbuttons and hotkeys
  • Superior video quality - up to 2048 x 1536; DDC2B
  • Firmware upgradeable
  • OS Support:Windows 2000, Windows XP, Windows Vista, LINUX, Mac, Sun and FreeBSD
  • SUN/Mac keyboard support and emulation

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • 2 port USB Hub built in
  • Includes speaker and microphone support
  • Buzzer On/Off via hotkey
  • Keyboard and mouse emulation for error free booting
  • Computer selection via front panel pushbuttons and hotkeys
  • Superior video quality - up to 2048 x 1536; DDC2B

What's in the box:

  • Aten CS1742 2-Port USB Dual-View KVMP Switch with Audio Support
  • 2x Audio/Video KVM Cables
  • 2x USB/Video KVM Cables
  • Firmware Upgrade Cable
  • User Instructions
  • Aten 3 Year Warranty
