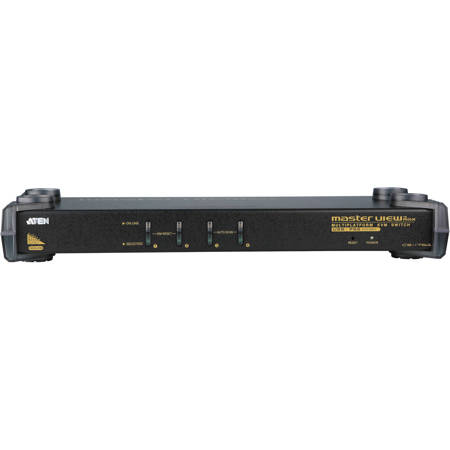

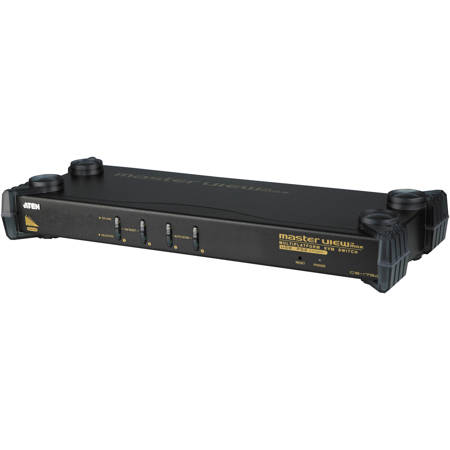

Aten CS1754 4-Port PS/2 - USB KVM Switch with Audio Support

SKU: ANCS1754 MFR: CS1754
Earn VIP Reward Points

Key Features

  • Manage 4 computers with one keyboard, monitor, and mouse using this KVM switch.
  • Experience high-quality video resolution up to 2048 x 1536 with DDC2B support on this KVM.
  • Easily switch between ports using hotkeys, pushbuttons, or the intuitive on-screen display.
  • This 4-Port USB KVM switch supports both USB and PS/2 connections for flexible use.
  • Cascade up to 16 additional KVM switches for control of up to 64 computers, expanding access.
  • Enjoy audio support for multimedia applications, enhancing your KVM switch experience.
See More Product Details
Temporarily On Backorder?Request assistance or get notified
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$79.99

3 Year

$109.99

4 Year

$129.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Aten CS1754 Specifications

  • Computer Connections

    Direct: 4
    Max: 64 (via Cascade)

  • Port Selection

    Hotkeys; Pushbuttons, OSD

  • Connectors: Console Ports

    Keyboard: 1x USB Type A Female (White)
    Video: 1x HDB-15 Female (Black)
    Mouse: 1x USB Type A Female (White)
    Speaker: 1x Mini Stereo Jack Female(Green)
    Microphone: 1x Mini Stereo Jack Female (Pink)

  • Connectors: KVM Ports

    Keyboard/Video/Mouse: 4x SPHD-15 Male (Yellow)
    Speaker: 4x Mini Stereo Jack Female (Green)
    Microphone: 4x Mini Stereo Jack Female (Pink)

  • Connectors: F/W Upgrade

    1x RJ11 Female (Black)

  • Connectors: Power

    1x DC Jack (Black)

  • Switches

    Port: 4x Pushbutton
    Fi/W Upgrade: 1x Slide
    Reset: 1x Semi-recessed Pushbutoon

  • LEDs

    On Line: 4 (Orange)
    Selected: 4 (Green)
    Power: 1 (Blue)

  • Emulation

    Keyboard/Mouse: USB

  • Video

    2048 x 1536; DDC2B

  • Scan Interval

    1 to 99 seconds

  • Power Consumption

    DC5V, 2.75W

  • Operating Temperature

    0 to 50 deg. C / 32 to 122 deg. F

  • Storage Temperature

    -20 to 60 deg. C / -4 to 140 deg. F

  • Humidity

    0 to 80% RH, Non-densing

  • Housing

    Metal

  • Dimensions (L x W x H)

    43.72 x 16.10 x 4.40cm / 17.21 x 6.34 x 1.73"

  • Weight

    2.64kg / 5.82lbs

  • UPC Code

    672792001840

About Aten CS1754

It seamlessly integrates functionality and convenience with the CS1754 4-Port PS/2 - USB KVM Switch, designed to centralize the control of up to 64 computers from a single console. This versatile KVM switch is engineered to support both PS/2 and USB interfaces, ensuring compatibility with a wide range of computer systems.

Equipped with audio signal support, the CS1754 allows for the sharing of multimedia speakers and a microphone across multiple computers, enhancing the user experience during multimedia applications. The device's robust design features a 3-tier cascading capability, which enables the connection of up to 21 CS1754 units to create a comprehensive network of computing resources.

Ideal for growing enterprises, the CS1754 KVM Switch is a testament to long-term reliability and efficiency. It streamlines the management of multiple computers by providing users with the ability to switch between machines effortlessly. The CS1754 is not only a smart investment for businesses looking to optimize their IT infrastructure but also for educational institutions and tech enthusiasts who require a high level of control and flexibility in their setups.

With its intuitive operation and durable construction, the CS1754 KVM Switch stands as a cornerstone in advanced computer management, offering both seamless integration and a path towards future expansion.

Aten CS1754 Features

  • One USB console controls 4 computers
  • Cascadable up to 3 levels - provides up to 64 computers
  • Dual InterfaCEsupports computers with PS/2 or USB keyboards and mice
  • Multiplatform support: compatible with all operation platforms PC (Windows,Linux and most others), Mac and Sun
  • Auto PS/2 and USB interface detection
  • Buzzer On/Off via hotkey and OSD
  • Computer selection via front panel pushbuttons, hotkeys and OSD
  • Superior video quality - up to 2048 x 1536; DDC2B
  • Firmware upgradable
  • With speaker and microphone support
  • ATEN USB ASIC inside
  • Available in silver and black
  • Rack mountable in 19" system rack
  • Multiplatform support: Windows 2000/XP/Vista, Linux, Mac, Unix, Sun and FreeBSD
  • For more information about KVMs which can connect to CS1754, see Compatible KVM Table

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Manage 4 computers with one keyboard, monitor, and mouse using this KVM switch.
  • Experience high-quality video resolution up to 2048 x 1536 with DDC2B support on this KVM.
  • Easily switch between ports using hotkeys, pushbuttons, or the intuitive on-screen display.
  • This 4-Port USB KVM switch supports both USB and PS/2 connections for flexible use.
  • Cascade up to 16 additional KVM switches for control of up to 64 computers, expanding access.
  • Enjoy audio support for multimedia applications, enhancing your KVM switch experience.

What's in the box:

  • Aten CS1754 4-Port PS/2
  • USB KVM Switch with Audio Support
  • Firmware Upgrade Cable
  • Power Adapter
  • Rack Mount Kit
  • User Instructions
  • Aten 3 Year Limited Warranty
