Aten CS1768 8-Port USB DVI KVM Switch with Audio Support, 2x6' 2L7D02U Custom USB DVI-D KVM Cable Sets

SKU: ANCS1768 MFR: CS1768
Earn VIP Reward Points

Key Features

  • Manage 8 computers with ease using this Aten KVM switch, saving desk space and resources.
  • Enjoy superior video quality up to 2048 x 1536 with this DVI KVM switch, perfect for detailed work.
  • The USB KVM switch supports audio and microphone, enhancing your multimedia and communication setup.
  • Switch between computers via hotkeys, OSD, or pushbuttons for flexible KVM control options.
  • This 8-port KVM switch includes custom USB DVI-D KVM cable sets for a ready-to-use connectivity solution.
  • Expand your control by cascading up to 512 computers with this versatile Aten KVM switch system.
See More Product Details
Temporarily On Backorder?Request assistance or get notified
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$174.99

3 Year

$224.99

4 Year

$299.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Aten CS1768 Specifications

  • Computer Connections

    Direct: 8
    Daisy Chain or Cascading: 512

  • Port Selection

    OSD, Hot Key, Pushbutton

  • Console Connectors

    Monitor: 1x HDB-15 Female (Blue) / 1x DVI-I Female (White)
    Keyboard: 1x USB Type A Female (Black)
    Mouse: 1x USB Type A Female (Black)
    Audio: 2xMini Stereo Jack Female (Green; 1x front panel; 1x rear panel)
    Microphone: 2xMini Stereo Jack Female (Pink; 1x front panel; 1x rear panel)

  • Power

    1x DC Jack

  • CPU Connectors

    Flash ROM Upgrade: 1x RJ-11 Female (Black)
    Monitor: 8x DVI-I Female
    Keyboard & Mouse: 8x USB Type B Female
    Audio: 8x Mini Stereo Jack Female (Green)
    Microphone: 8x Mini Stereo Jack Female (Pink)
    Peripherals: 2x USB Type A Female (White; 1x Front Panel, 1x Rear Panel)

  • Switches

    Port Selection: 8x Pushbutton
    Reset: 1x Semi-recessed Pushbutton

  • LEDs

    Power On: 1 (Dark Green)
    Selected: 8 (Orange)
    USB Peripherals: 8 Link (Green)

  • Video Resolution

    Single Link DVI-I = 1920 x 1200 VGA = 2048 x 1536

  • Voltage

    5.3 VDC

  • Amps

    700mA

  • Power Consumption

    3.76W -- 13 BTU / Hr

  • Housing

    Metal

  • Dimensions

    17.2 x 6.34 x 1.73" / 43.69 x 16.10 x 4.39cm

  • Weight

    6.2lbs / 2.81kg

  • UPC Code

    672792003011

About Aten CS1768

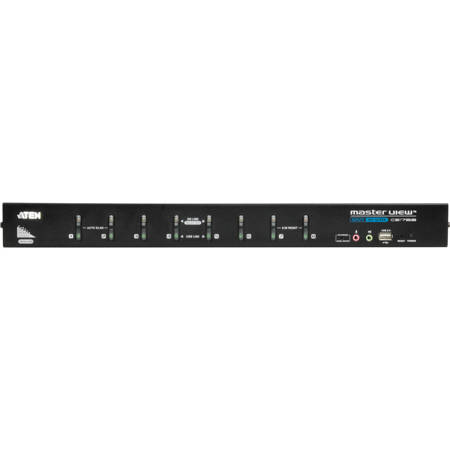

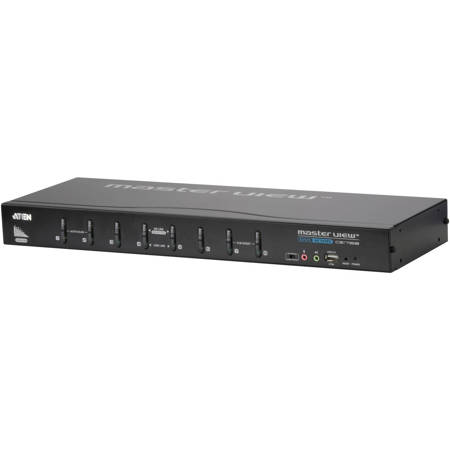

Be in control of your multi-computer setup with the CS1768 8-Port USB DVI KVM Switch. This high-performance device enables you to access and manage up to eight computers using a single USB keyboard, USB mouse, and dual-monitor console supporting both DVI-I and VGA interfaces.

The CS1768 KVM Switch is designed for scalability, with the capability to be cascaded to three levels. This allows for the control of an impressive 512 computers when using up to 73 CS1768 units, all managed from the original single console. This feature makes it an ideal solution for large-scale IT operations and data centers.

One of the standout features of the CS1768 is ATEN's innovative Video DynaSync technology. This advanced feature optimizes display resolution, ensuring crisp and clear visuals across all connected computers.

The CS1768 offers three user-friendly methods to access any computer connected to the installation. You can choose from using the pushbutton port selection switches located on the unit's front panel, entering Hotkey combinations from the keyboard, or selecting from menus provided by the on-screen display (OSD).

For added convenience, the CS1768 also includes an Auto Scan feature. This allows for automatic scanning and monitoring of the activities of all computers connected to the installation, sequentially.

The CS1768 goes beyond just visual and control support, it also provides multimedia keyboard support and is audio-enabled. This means you can connect two microphones to provide audio input to each of the computers. Plus, you can listen to the audio output of each computer on two sets of speakers, on a one-at-a-time basis.

In summary, the CS1768 8-Port USB DVI KVM Switch is a comprehensive solution for managing multiple computers, offering superior video quality, audio support, and user-friendly access methods.

Aten CS1768 Features

  • One USB console controls eight Single Link DVI or VGA computers and two additional USB 2.0 devices
  • Supports both digital (DVI) and analog (VGA) video - mixed operation possible
  • Cascadable to three levels - control up to 512 computers
  • 2-port USB 2.0 hub built in
  • Fully compliant with the USB 2.0 specification
  • Computer selection via front panel pushbuttons, hotkeys, and multilingual on-screen display (OSD)
  • Two-level (Administrator/User) password authorization for enhanced security protection
  • Multilingual OSD supports English, German, Japanese, Traditional Chinese, Simplified Chinese, Spanish, Russian, and French
  • Audio enabled - full bass response provides a rich experience for 2.1 channel surround sound systems
  • Console audio ports on front panel for easy access
  • Multiplatform support - Windows, Linux, Mac, Sun
  • Supports widescreen resolutions
  • Superior video quality - 1920 x 1200 (Single Link DVI); 2048 x 1536 (VGA); DDC2B
  • Independent switching of KVM and USB focus
  • DVI digital and analog monitor support - fully compliant with the DVI specifications
  • HDCP compatible
  • Video DynaSync - exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports
  • Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice
  • Complete keyboard emulation for error-free booting
  • Mac/Sun keyboard support and emulation
  • Multilingual keyboard mapping - supports English (US), English (UK), French, German, Japanese, Korean, Traditional Chinese, and Spanish
  • Auto Scan Mode for monitoring all computers
  • Broadcast mode - allows you to send commands from the console to all computers to perform operations simultaneously
  • Firmware upgradable

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Manage 8 computers with ease using this Aten KVM switch, saving desk space and resources.
  • Enjoy superior video quality up to 2048 x 1536 with this DVI KVM switch, perfect for detailed work.
  • The USB KVM switch supports audio and microphone, enhancing your multimedia and communication setup.
  • Switch between computers via hotkeys, OSD, or pushbuttons for flexible KVM control options.
  • This 8-port KVM switch includes custom USB DVI-D KVM cable sets for a ready-to-use connectivity solution.
  • Expand your control by cascading up to 512 computers with this versatile Aten KVM switch system.

What's in the box:

  • Aten CS1768 8-Port USB DVI KVM Switch with Audio Support
  • 2x 6' 2L7D02U Custom USB DVI-D KVM Cable Sets
  • Firmware Upgrade Cable
  • 6' Power Adapter
  • 4x Foot Pad Set
  • User Manual
  • Quick Start Guide
  • Aten 3 Year Limited Warranty
