Aten CS1784A 4-Port USB Dual Link DVI KVMP Switch with 2.1 Surround Sound Audio
See all Aten items

Aten CS1784A 4-Port USB Dual Link DVI KVMP Switch with 2.1 Surround Sound Audio

SKU: ANCS1784A

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Aten CS1784A Specifications

  • Computer Connections

    Direct: 2

  • Port Selection

    Front Panel Puchbuttons, Hotkeys, Mouse

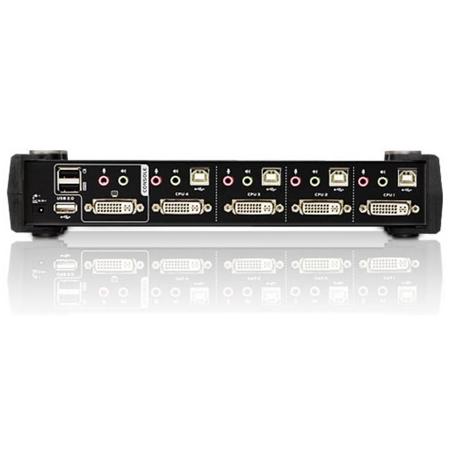

  • Console Connectors

    Keyboard: 1x USB Type A Female (Rear Panel)
    Monitor: 1x DVI-I Female (Rear Panel)
    Mouse: 1x USB Type A Female (Rear Panel)

  • Connectors-Audio(console)

    Line Out: 2x Mini Stereo Jack Female(Green; 1x front panel, 1x rear panel)
    Microphone: 2x Mini Stereo Jack Female(Pink; 1x front panel, 1x rear panel)

  • CPU Connectors

    Keyboard & Mouse: 4x USB TypeB Female
    Monitor: 4x DVI-I Female

  • Connectors-Audio(CPU)

    Line Out: 4x Mini Stereo Jack Female(Green)
    Microphone: 4x Mini Stereo Jack Female(Pink)

  • Connectors

    Power: 1x DC Jack
    USB: USB 2.0 2x USB TypeA Female(1x front panel, 1x rear panel)

  • Switches

    Port Selection: 4x Pushbutton

  • LEDs

    Selected: 4 (Orange)
    USB Peripherals: 4 (Green)

  • Emulation

    Keyboard/Mouse: USB

  • DVI-D( Dual Link)

    2560 x 1600

  • DVI-D(Single Link)

    1920 x 1200

  • Power Consumption

    DC 5.3V, 10W

  • Humidity

    0 to 80% RH, Non-condensing

  • Operation Temperature

    0 to 50 deg. C / 32 to 122 deg. F

  • Storage Temperature

    -20 to 60 deg. C / -4 to 140 deg. F

  • Housing

    Metal

  • Dimensions

    2 x 10.6 x 3.4" / 5.08 x 26.92 x 8.64cm

  • Weight

    2.2lbs / 1.00kg

  • UPC Code

    672792002403

About Aten CS1784A

The CS1784A USB DVI Dual Link KVMP Switch charts a revolutionary direction in KVM switch functionality. It combines the capabilities of a 4-port KVM switch with a 2-Port USB hub, while providing a DVI monitor interface and audio support. Moreover it carries advanced features, such as nVidia 3D Vision ready 120Hz 3D display support, gaming keyboard compatibility and port selection/switching using a mouse, aimed at giving you flexibility, convenience and enjoyment.

Aten CS1784A Features

  • 4-port DVI KVMP Switch with USB 2.0 and 2.1 Surround Sound Audio
  • One USB console controls four computers and two additional USB devices
  • 2-port built in USB 2.0 hub fully compliant with the USB 2.0 specification
  • Full bass response for high quality 2.1 channel surround sound systems
  • Computer selection via front panel pushbuttons, hotkeys, and mouse NEW!
  • Multiplatform support - Windows, Linux, Mac and Sun
  • Independent switching of KVM, USB, and Audio focus
  • DVI digital and analog monitor support - fully compliant with the DVI specifications
  • Superior video quality: 1920 x 1200 at 60Hz (Single Link); 2560 x 1600 at 60Hz (Dual Link)
  • nVidia 3D Vision Ready: Works with 120Hz LCD monitors and active shutter glasses to create a 3D environment with maximum resolution of up to 1920 x 1080
  • HDCP compatible
  • Support widescreen resolutions
  • Video DynaSync - Exclusive ATEN technology that eliminates boot-up display problems and optimizes resolution when switching between ports
  • Power on detection - if one of the computers is powered off, the switch will automatically switch to the next powered-on computer NEW!
  • Console mouse port emulation/bypass feature that supports most mouse drivers and multifunction mice
  • Console keyboard emulation/bypass feature that supports most gaming / multimedia keyboards NEW!
  • Complete keyboard emulation for error-free booting
  • Mac/Sun keyboard support and emulation
  • Multilingual keyboard mapping - supports English, Japanese, and French keyboards
  • Auto Scan Mode for monitoring all computers
  • Firmware upgradable

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • 4-port DVI KVMP Switch
  • One USB console controls four computers and two additional USB devices
  • 2-port built in USB 2.0 hub fully compliant
  • Full bass response for high quality 2.1 channel surround sound systems
  • Computer selection via front panel pushbuttons, hotkeys, and mouse NEW!
  • Multiplatform support - Windows, Linux, Mac and Sun

What's in the box:

  • Aten CS1784A 4-Port USB Dual Link DVI KVMP Switch with 2.1 Surround Sound Audio
  • 4x Custom DVI-D KVM Cable Sets
  • Power Adapter
  • User Manual
  • Quick Start Guide
  • Aten 2 Year Warranty
